Summary

Files changed extras, E2 of the "Files changed extras" stack, stacked on #3304.

What was asked: show changed images (png, jpg, gif, webp, svg) before and after instead of "binary file", with stage-cli's cheap modes. Read the bytes for the base and head through the service, inside the agent's own repository only, reusing #3206's image proxy and contents-API path. Bound the size, and mind the CSP.

What the window does

• The image takes the place of lines. A changed image is drawn as the file's lead: the measured, full-width body feat(desktop): list every file in Files changed, with a filter, collapse all, and stage-cli's keys #3304 introduced for files with no lines.
  • Modified and renamed images get a segmented control for 2-up, Swipe and Onion skin. Swipe and onion skin each have a slider.
  • An added image shows its one side, labelled "Added". A deleted image shows "Deleted".
  • Each picture sits on a checkerboard, so transparency shows. In Swipe and Onion skin, both sides fill one canvas as large as the larger, so at full strength the after hides the before whatever their sizes.
• SVGs start as pictures. When an SVG has lines to draw, a <> button in the header switches to its source, and back.
• Lazy loading. A side is read only once its file is open and near the view (an IntersectionObserver on the lead). It is then kept for the window's life (@luke/ui/picture-cache), so a collapsed or far-off image costs nothing. A side whose read failed is asked for again on Refresh changes.
• CSP. Pictures draw from data: URLs the window makes, which img-src allows. The swipe clip and the onion-skin opacity are set through React's style (the CSSOM), never style markup.
• Threads on a pictured file stand in its lead, as on a binary file.

Where the bytes come from

• No new fetch path. Each side is read through the existing CODING_AGENTS_GITHUB_IMAGE act, as raw.githubusercontent.com/<owner>/<name>/<sha>/<path>. fix(desktop,service,features): draw bot badges and repository screenshots on the Pull request tab #3206's githubImageOf reads that address as a FILE image.
• The service then:
  • reads the image through the contents API on the App's token, in the agent's own repository only
  • accepts png/jpg/gif/webp/svg only, checks the bytes against the type's signature, and caps the size at GITHUB_IMAGE_BOUNDS.MAX_BYTES (8 MB)
• An image the service won't answer reads "This image could not be shown."

Service changes

The changes answer gains two optional keys, headSha and baseSha:

• headSha comes from one extra GET /pulls/{n}, run in parallel with the files and people reads the endpoint already makes.
• baseSha is the merge base, not the base branch's tip, so a "before" picture is never one the pull request didn't have. It comes from GET /compare/{base}...{head}?per_page=1 (imageCommits), which runs only when the files include a modified, renamed or deleted image.
  • A pull request without such an image pays nothing extra.
  • If the compare fails, baseSha is left out and the window shows the after side alone with "Previous version unavailable". It never falls back to the base branch's tip.
• imageTypeOfPath is now exported from @luke/features/github-image, so the service and the window share one extension → type table.

Goldens

LUKE_UPDATE_FIXTURES=1 regenerated codingAgentChangesAnswerSchema and codingAgentChangesAnswerViewSchema. Each gains only the two optional string keys, headSha and baseSha, under pullRequest.

Screenshots

From a throwaway harness (fake app bridge, real bundles and stylesheet), since deleted.

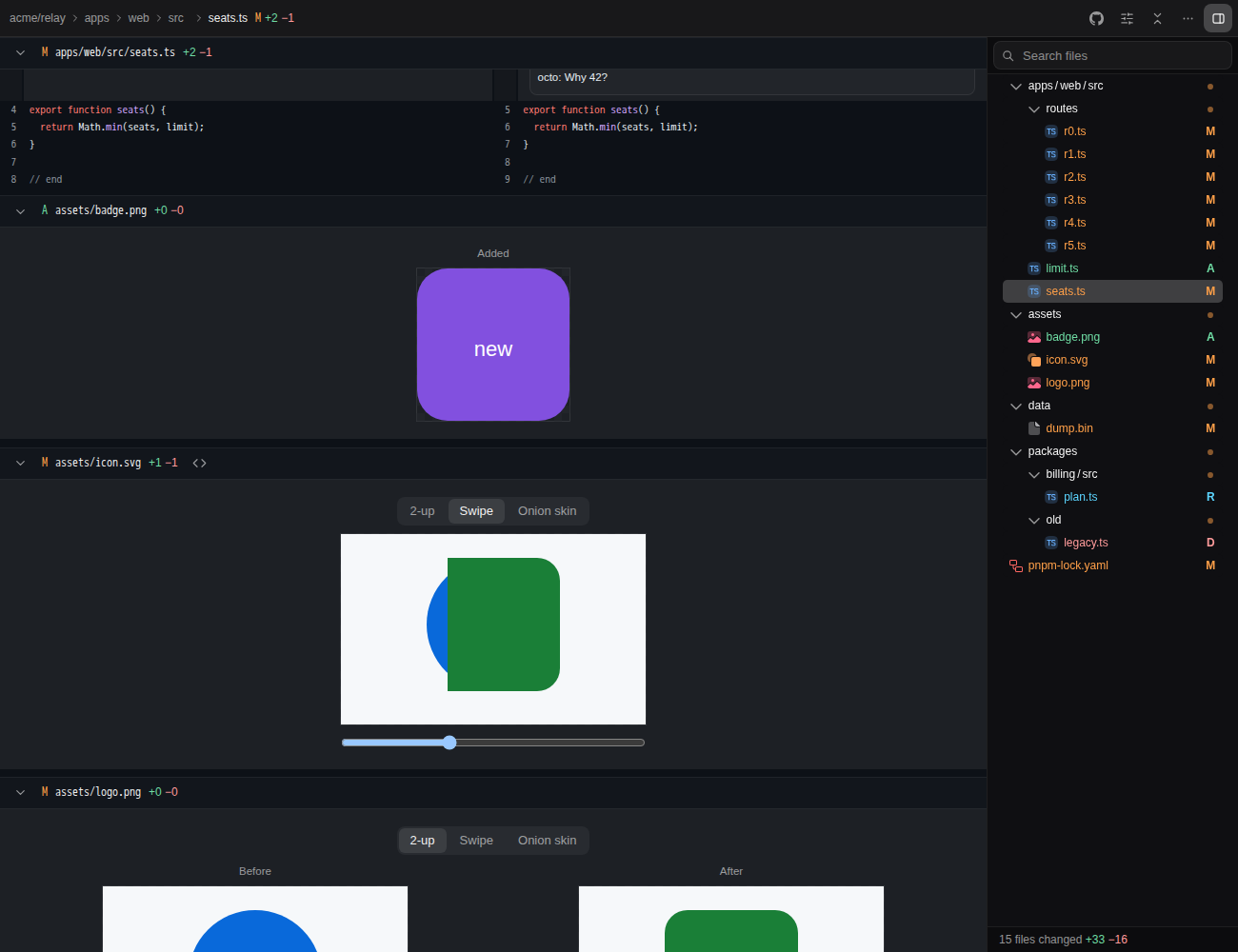

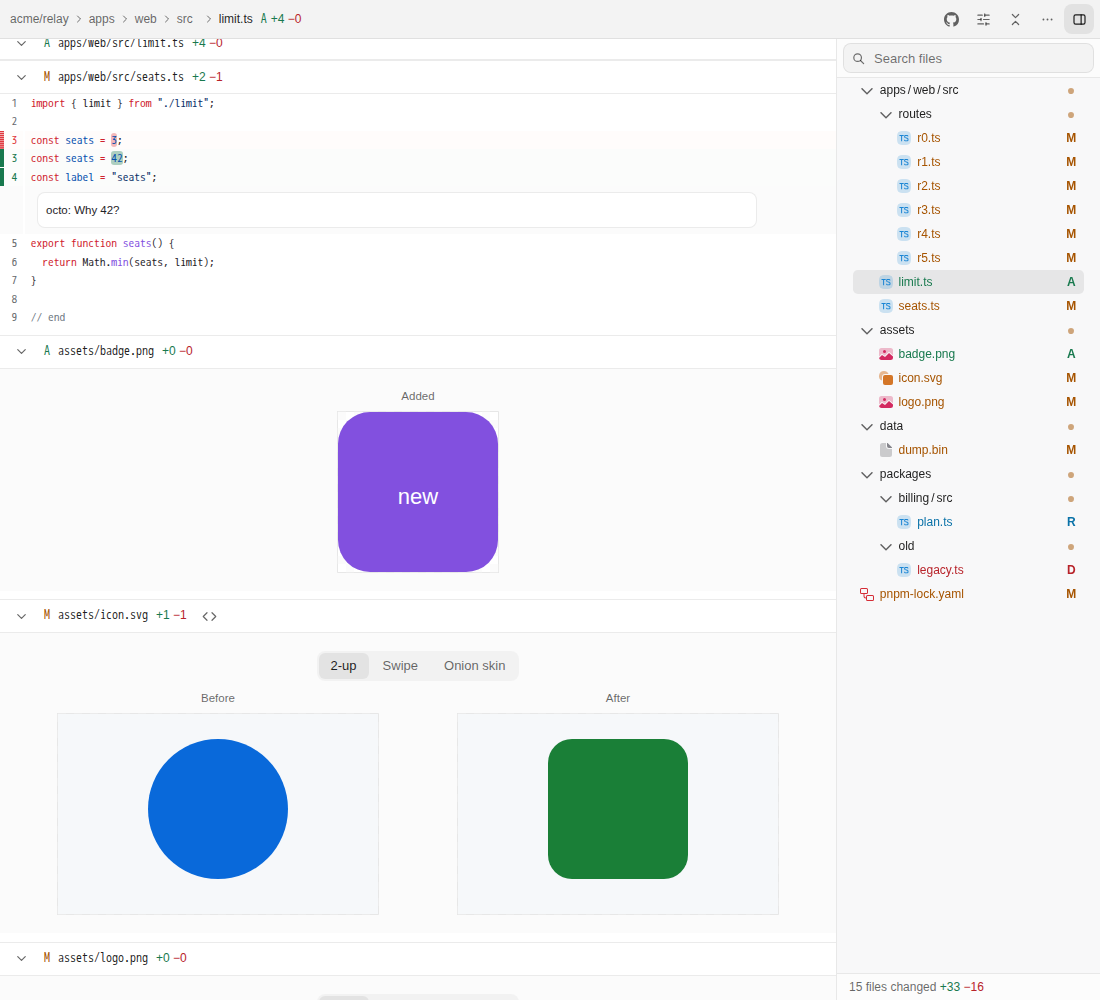

2-up, with an added image above	Swipe (dark, split setting)

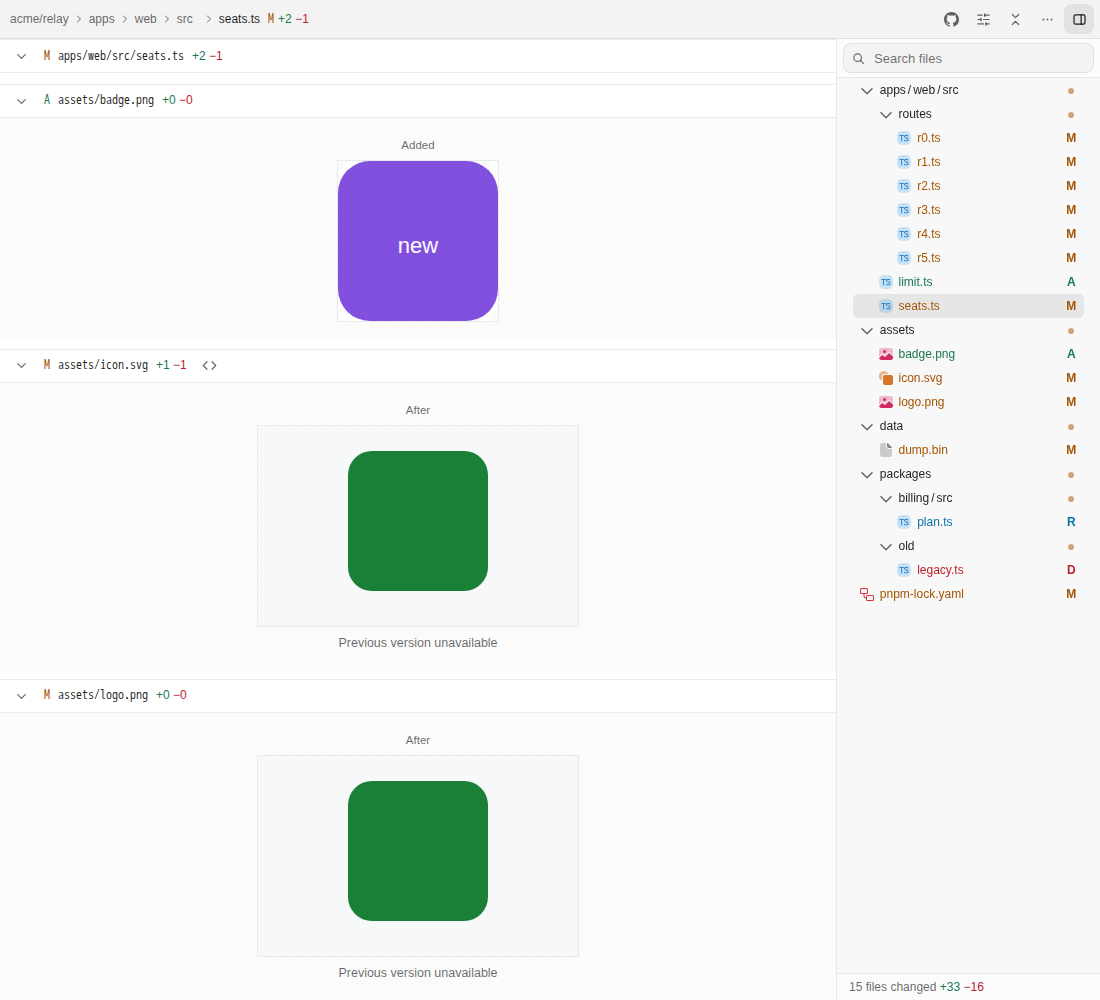

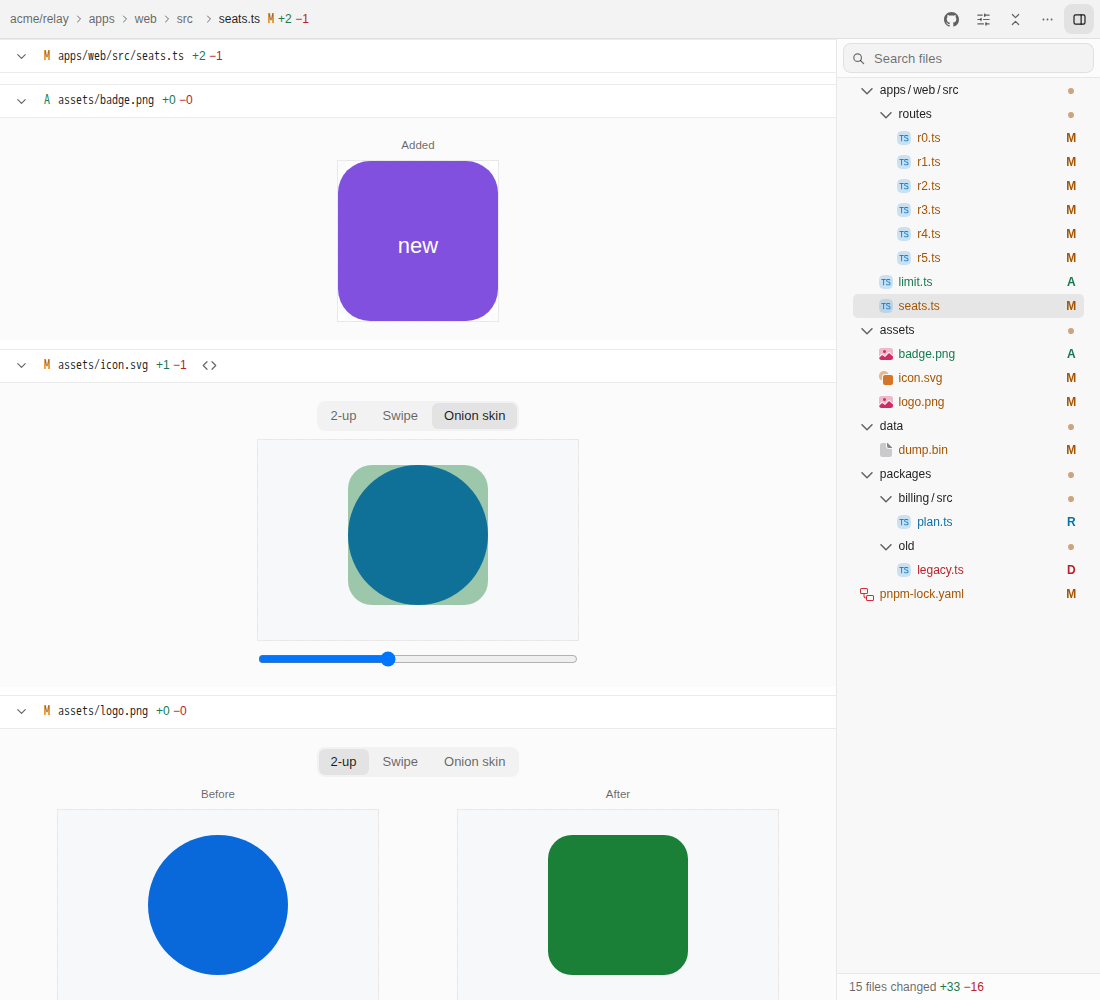

Onion skin	Merge base unreadable: after alone

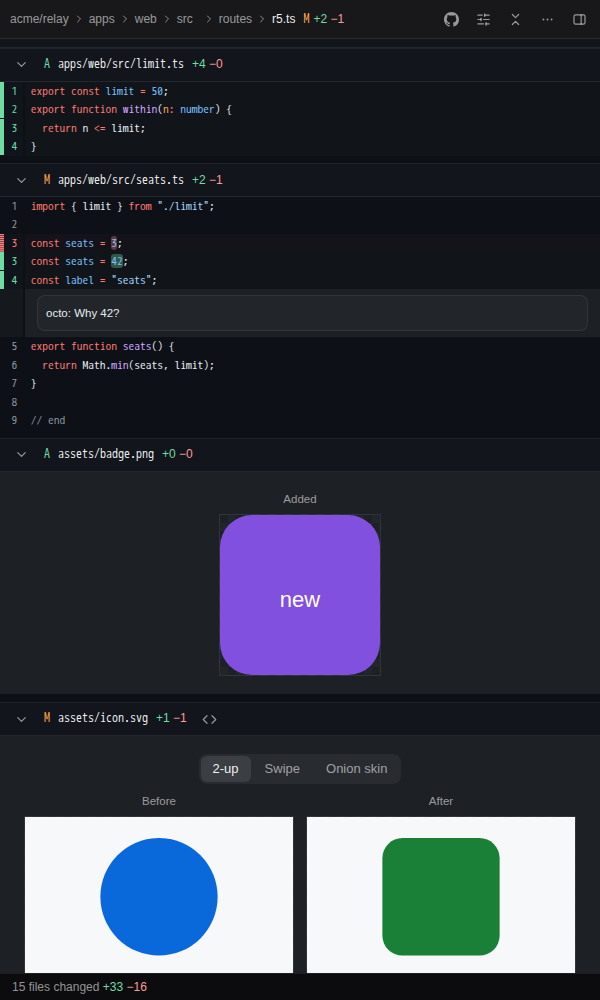

Narrow (600px, tree hidden):

Evidence

• Desktop and service tsc: pass.
• pnpm lint, pnpm knip, pnpm discarded-effect, ./scripts/repository-checks.sh: pass.
• pnpm exec vitest run apps/desktop/src/renderer/tasks packages/service/src/agents/coding-agents-app.test.ts packages/service/src/github packages/features/src: 150 files, 1752 tests passed.
• New tests:
  • image-commits.test.ts:
    • an image changed in place reads the merge base from one per_page=1 compare
    • a deleted image needs the merge base too; an added image or a text file asks for no compare
    • a compare that fails names no merge base, never the base branch's tip
  • agent-changes-tab.test.ts:
    • an image is read at the merge base and the head only once it comes near the view, and draws before/after with Swipe working
    • with no merge base, the after side draws alone with "Previous version unavailable"
    • an SVG draws as a picture until its source is asked for
    • an image from a service that names no commits stays a binary file
    • a side whose read failed is read again on Refresh changes
    • an SVG renamed without changes offers no source
    • the chosen comparison and slider survive Refresh changes
    • after a refresh, an image far from the view reads nothing until it comes near again
• pnpm check:affected ran out of memory in this sandbox, so the checks above were run one at a time instead.

Invariants

• ./scripts/check.sh green. (CI)
• JSON Schema goldens: changed, explained above.
• Every behavior change has a test that fails without it; no change-detector test added.
• Gateway envelope goldens unchanged.
• No new as assertion.
• No Effect.run* outside the edges.
• No new raw async primitives.
• No discarded Effect.
• Test count: +11, listed above.
• No hand-rolled file replaced.
• No CLAUDE.md/AGENTS.md sentence names a changed part.
• PRIVACY.md unchanged. Images stay inside the list's ph-no-capture.
• No dependency change.
• Barrel/door rule untouched.

Notes

• feat(desktop): list every file in Files changed, with a filter, collapse all, and stage-cli's keys #3304 has merged; this PR is restacked on main.
