EgoEngine

From Egocentric Human Videos to High-Fidelity Dexterous Robot Demonstrations

CoRL 2026 · Conference on Robot Learning

Yangcen Liu, Shuo Cheng, Xinchen Yin^†, Woo Chul Shin^†, Alfred Cueva^†, Yiran Yang, Zhenyang Chen, Chuye Zhang, Danfei Xu

_{† Co-third authors (equal contribution).}

Use my robot · Reproduction guide

EgoEngine converts egocentric human demonstrations into paired robot observations and actions. This repository unifies the visual and action branches, starting from a preprocessed dataset: calibrated cameras, original robot retargets, scene assets, kinematic references and demonstrator-free background videos. FoundationPose and early perception/reconstruction are outside this release.

• Visual branch: replay the original RB-Y1 joint commands, object motion and camera track; render the robot and visibility mask; composite the robot onto the prepared background using the original materials and blending settings.
• Action branch: refine floating-wrist XHand EEF controls using adaptive Replay → MPC → RL switching with two-chunk planning and one-chunk execution.
• Dataset: align the two outputs by case and reference frame, then export RGB, EEF actions, simulated states, timestamps and calibration to HDF5.

Quick start: visual branch and dataset export

Use Python 3.10 and an OpenGL-capable machine. The visual environment requires no Torch or CUDA installation. Run from an editable source checkout:

git clone https://github.com/GaTech-RL2/EgoEngine-CoRL2026.git
cd EgoEngine-CoRL2026
python3.10 -m venv .venv-visual
source .venv-visual/bin/activate
python -m pip install -r requirements/visual-tested.txt
python -m pip install --no-deps -e .

egoengine list
egoengine validate
egoengine demo --case mustard_1

On a headless Linux GPU host, set MUJOCO_GL=egl before rendering. The command generates a new RB-Y1 render, composite and paired reference-EEF dataset:

outputs/mustard_1/
  render/scene.mp4
  render/foreground.mp4
  render/visibility_mask.mp4
  render/rby1_commands.npz
  render/render.json
  render/original_pipeline/
  visual.mp4
  visual.json
  dataset.hdf5

The CPU demo exports the supplied reference EEF controls. Use the CUDA workflow below to train refined actions. Visual generation always uses the original retarget commands independently of action refinement.

# Validate all six inputs and generate all three Aria datasets.
bash scripts/reproduce_cpu.sh
# Rebuild the rendering examples and stage GIFs.
bash scripts/reproduce_rendering.sh

Prepared examples

Three TACO interactions and three different Aria Mustard demonstrations are included with their assets. See the input format and example manifest.

Dataset	Case	Frames	Included inputs
Aria	mustard_1	93	Complete visual and action inputs
Aria	mustard_2	105	Complete visual and action inputs
Aria	mustard_3	108	Complete visual and action inputs
TACO	brush_brush_bowl_20230927_027	209	Action input, robot rendering, historical visual previews
TACO	cut_knife_plate_20230926_040	210	Action input, historical visual previews; saved retarget gives an empty robot mask
TACO	scrape_off_knife_plate_20230926_034	228	Action input, robot rendering, historical visual previews

The TACO examples lack prepared demonstrator-free backgrounds, so their final composites cannot currently be regenerated. All three Aria examples support the complete visual/export workflow. Prepared references retain their original values; the released retargeting code contains no per-task trajectory corrections.

The following Aria panels show source RGB, prepared background, newly rendered RB-Y1 foreground, visibility mask and the resulting composite:

TACO stage previews and their source/alignment labels are recorded in the media manifest. Historical display clips are not used as newly generated paired training data.

Action branch: Replay → MPC → RL

Use a separate Linux Python 3.12 environment with an NVIDIA CUDA runtime:

python3.12 -m venv .venv-action
source .venv-action/bin/activate
python -m pip install -r requirements/action-tested.txt
python -m pip install -e .
egoengine doctor

egoengine action --case mustard_1
# Replay only:
egoengine action --case mustard_1 --methods replay
# Explicit compute budget:
egoengine action --case mustard_1 \
  --action-args '--mpc-num-samples 8 --mpc-max-iters 2 --rl-total-learning-iterations 1500'

The action simulator trains floating-wrist EEF + XHand controls. At each 20-control-step boundary, Replay, MPC and RL try the same saved state in order. The first candidate that passes the full two-chunk plan commits its current chunk. The next boundary starts from Replay again. Failed partial trajectories are rejected by the dataset exporter.

Defaults are eight MPC samples, two MPC iterations, 1024 RL worlds and a shared 1500-iteration PPO budget. Each RL window has a 300-iteration cap and continues the last accepted actor, critic, normalizers and optimizer. The goal-conditioned observation and residual PPO formulation are documented in RL_RECIPE.md; the selector and original simulation-step metric conventions are in MODE_SWITCHING.md.

Training outcomes vary across runs and cases. The current release does not establish successful action generation for every bundled TACO example or a verified simulation-step reduction over full-horizon RL. See the validation scope and comparison commands.

Join the branches

Generate the visual outputs in the visual environment:

egoengine render --case mustard_1
egoengine composite --case mustard_1 --render-dir outputs/mustard_1/render

After egoengine action --case mustard_1 succeeds in the CUDA environment, export the refined actions together with those visuals:

egoengine export --case mustard_1 --video outputs/mustard_1/visual.mp4 \
  --trajectory outputs/mustard_1/action/trajectory_mjwp_mixed.npz \
  --visual-source original_retarget_render

Both environments share files through the same checkout and output directory. If both dependency profiles are available in one environment, egoengine run --case mustard_1 executes the complete pipeline. Retained source and asset provenance is recorded in UPSTREAMS.json.

Use my robot

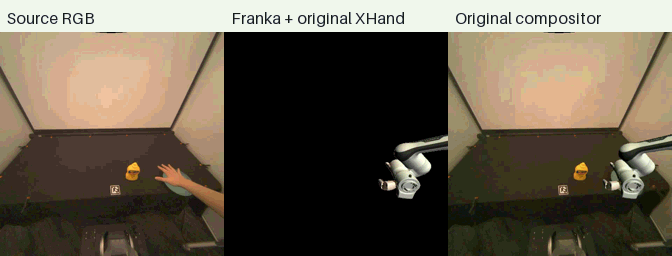

The Franka + XHand guide includes a working configuration, three rendered examples and commands for replacing the visual arm while keeping the original XHand, camera/object tracks and compositor:

egoengine demo --case mustard_1 --robot-config examples/robots/franka_xhand.json \
  --output outputs/franka_xhand

Dataset format

The HDF5 schema is egoengine.prepared.v1. Arrays under data/demo_0 share the reference-frame clock:

Dataset	Meaning
actions	EEF actuator targets: floating wrist XYZ/angles + XHand joints
obs/qpos, obs/qvel	Action simulator states, including objects
obs/joint_pos	Action simulator robot positions
obs/agentview_image	Composited RGB, default 256 × 256
obs/rby1_joint_commands	Original RB-Y1 visual joint commands
obs/robot_joint_commands	Optional configured-robot visual commands
obs/camera_to_world	Visual camera pose in the original retarget world
camera_intrinsics	Intrinsics scaled to the stored image dimensions
timestamps	Seconds on the reference clock

The exporter validates frame counts, case identity, finite arrays and successful action completion before writing atomically. Visual joint commands and EEF action states have separate provenance. See INPUTS.md to prepare another case and select it with egoengine --data-root /path/to/prepared ....

Validation and source layout

python -m unittest discover -s tests -v
# With the optional action and retargeting test dependencies installed:
bash scripts/test_all.sh

See the reproduction guide for environment-specific checks, expected artifacts and known limitations.

egoengine/          CLI, visual adapters, alignment and HDF5 export
spider/             Action simulator, sampling solver and residual RL
action/examples/    Replay, MPC, RL and adaptive mode-switching runners
visual/             Retained robosuite replay, retargeting and compositor
examples/prepared/  Three TACO and three Aria cases with portable assets
examples/robots/    Visual robot configurations
scripts/            Reproduction, validation and visualization commands
requirements/       Tested visual and CUDA dependency profiles
docs/               Input contracts, algorithms and example media
licenses/           Upstream licenses

Citation

@inproceedings{liu2026egoengine,
  title     = {EgoEngine: From Egocentric Human Videos to High-Fidelity Dexterous Robot Demonstrations},
  author    = {Liu, Yangcen and Cheng, Shuo and Yin, Xinchen and Shin, Woo Chul and Cueva, Alfred and Yang, Yiran and Chen, Zhenyang and Zhang, Chuye and Xu, Danfei},
  booktitle = {Conference on Robot Learning},
  year      = {2026},
  url       = {https://arxiv.org/abs/2606.12604}
}

License and acknowledgments

This repository includes SPIDER-derived action code under CC BY-NC and robosuite-derived visual code under MIT. See LICENSE, THIRD_PARTY_NOTICES.md and licenses/. The paper overview is reproduced from the official EgoEngine project website.
