YF C500 Plug'n Play Plugs + Adapter for SA/SC support

[Apehaenger]

No description provided.

[github-actions]

KiBot Diff vs main

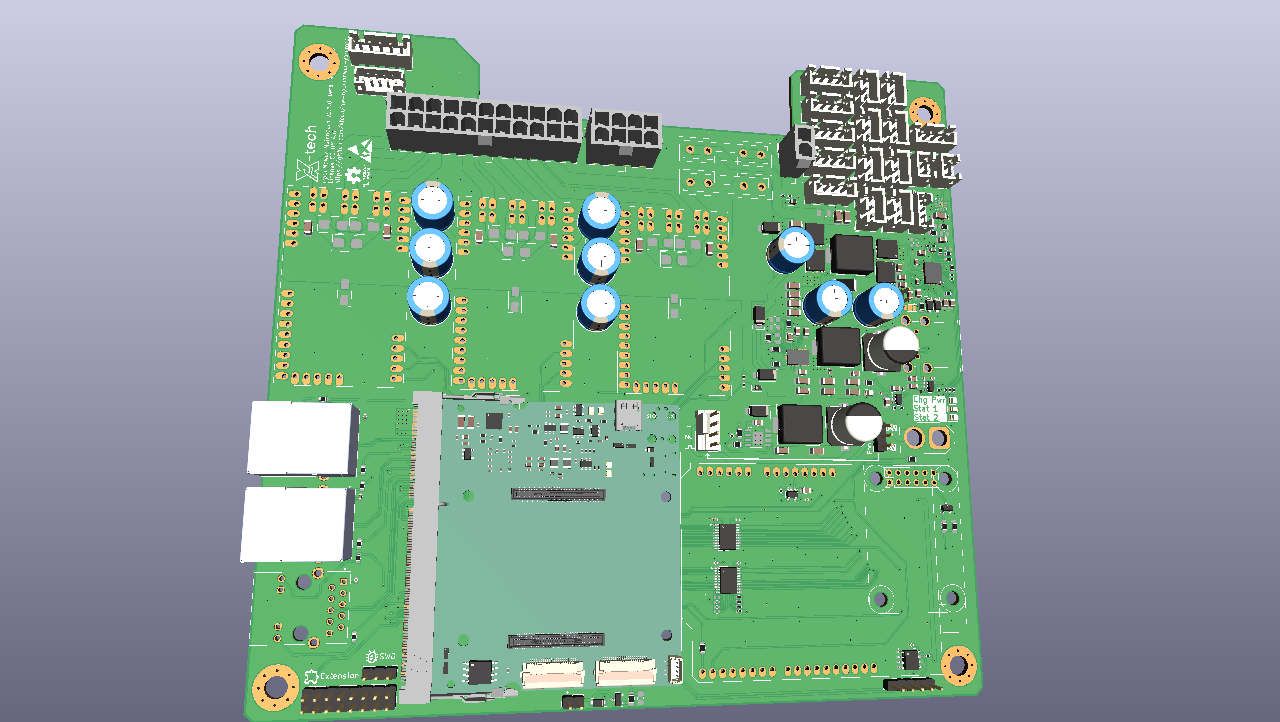

Renderings

PCB Top | PCB Bottom

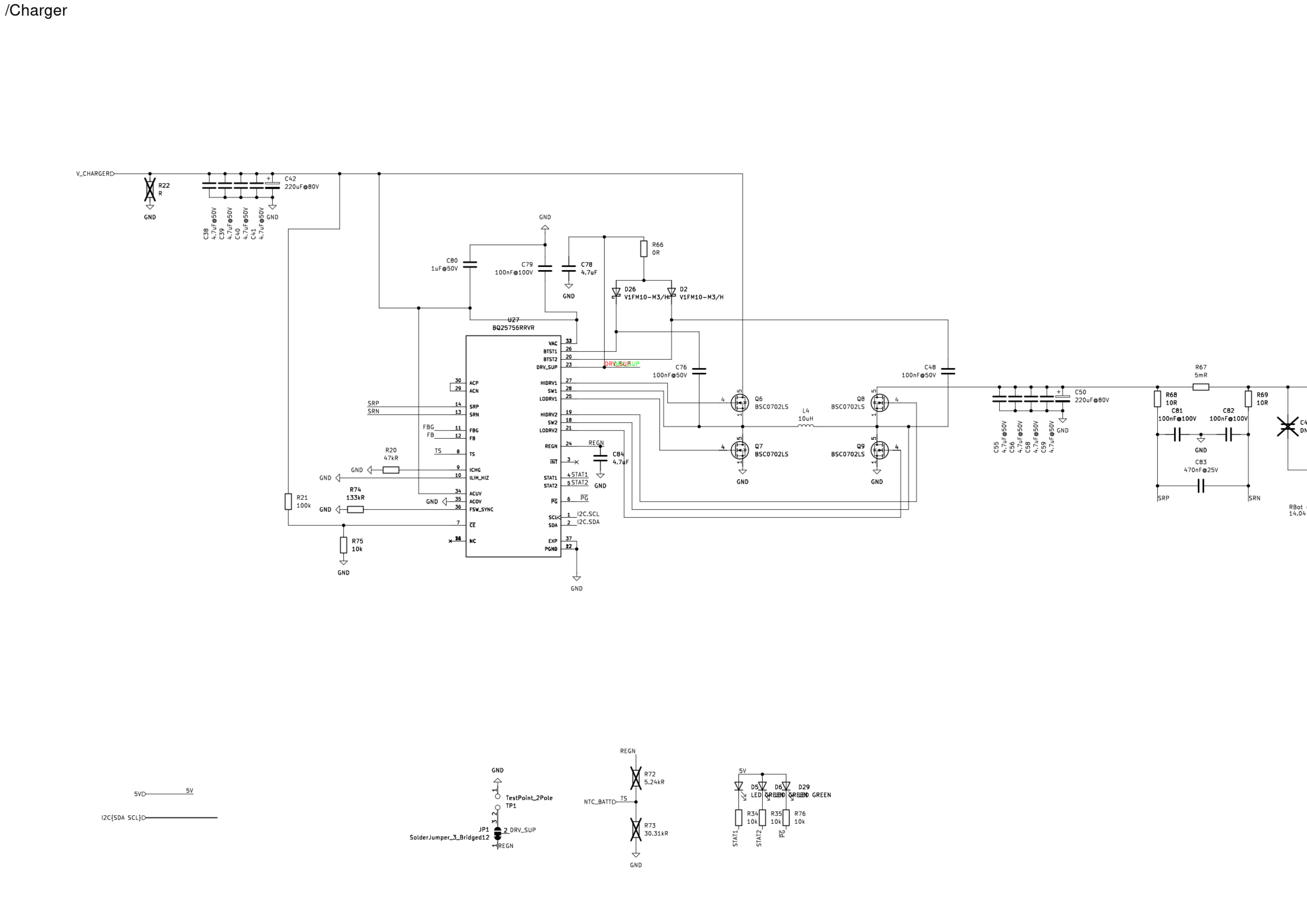

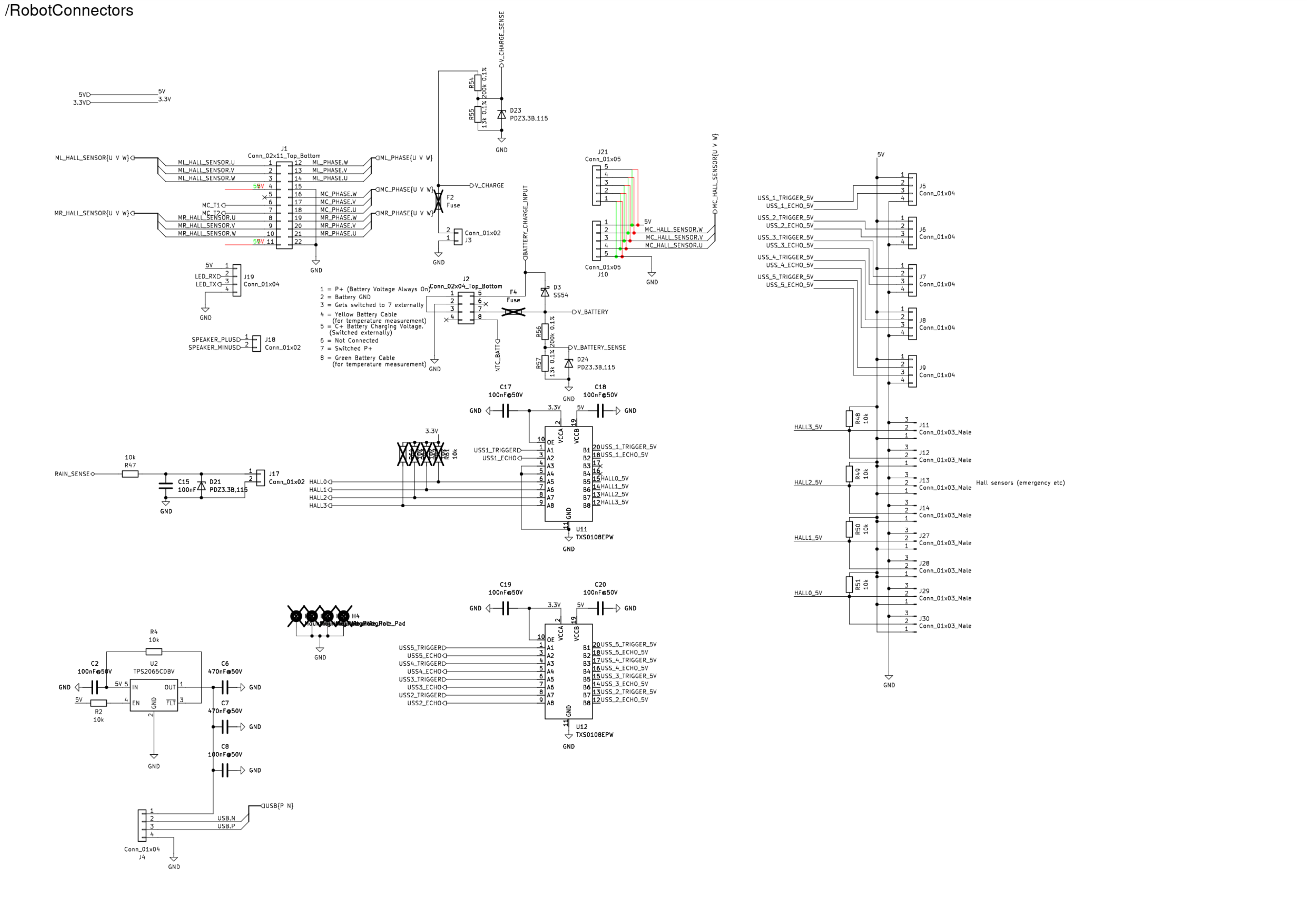

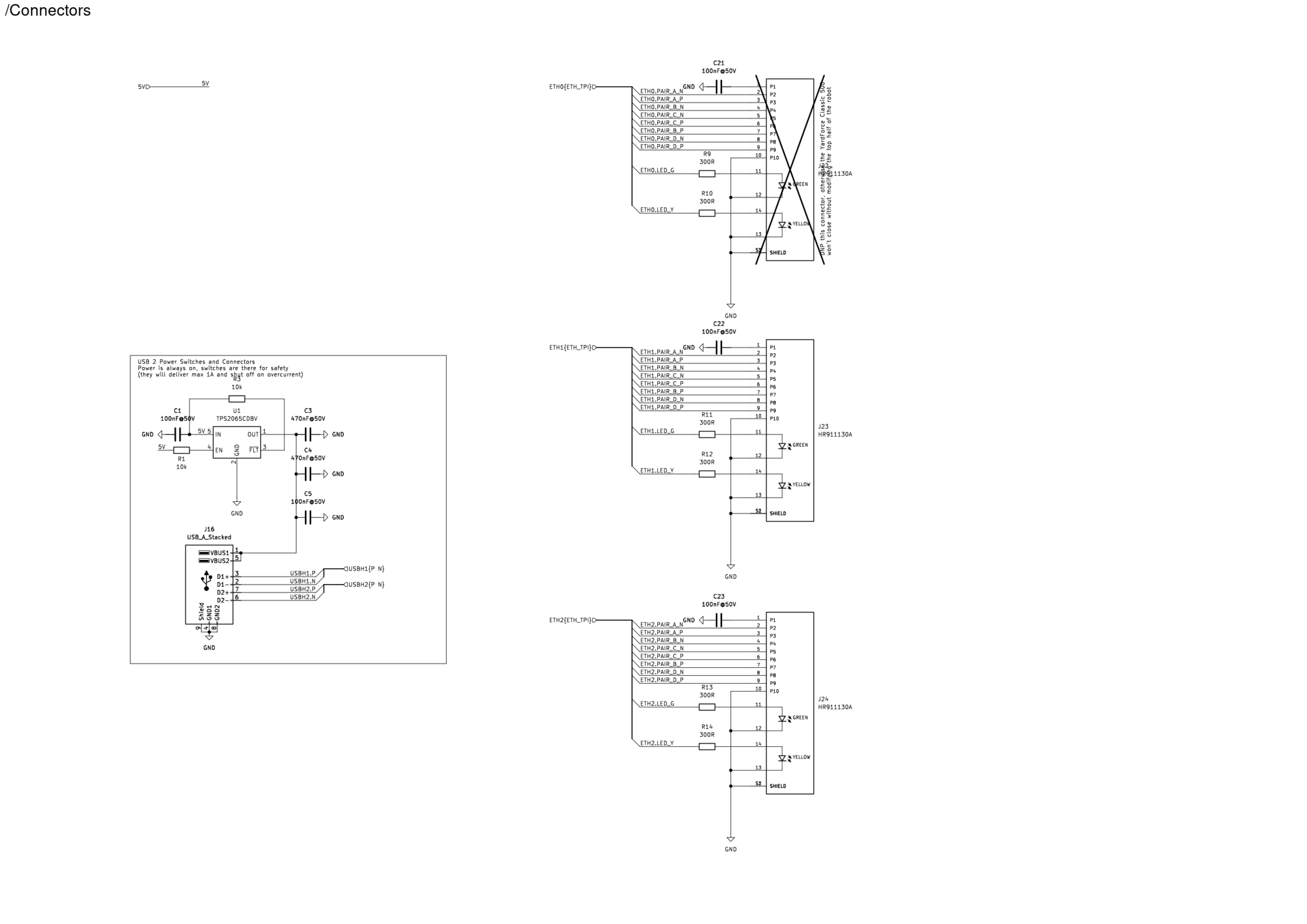

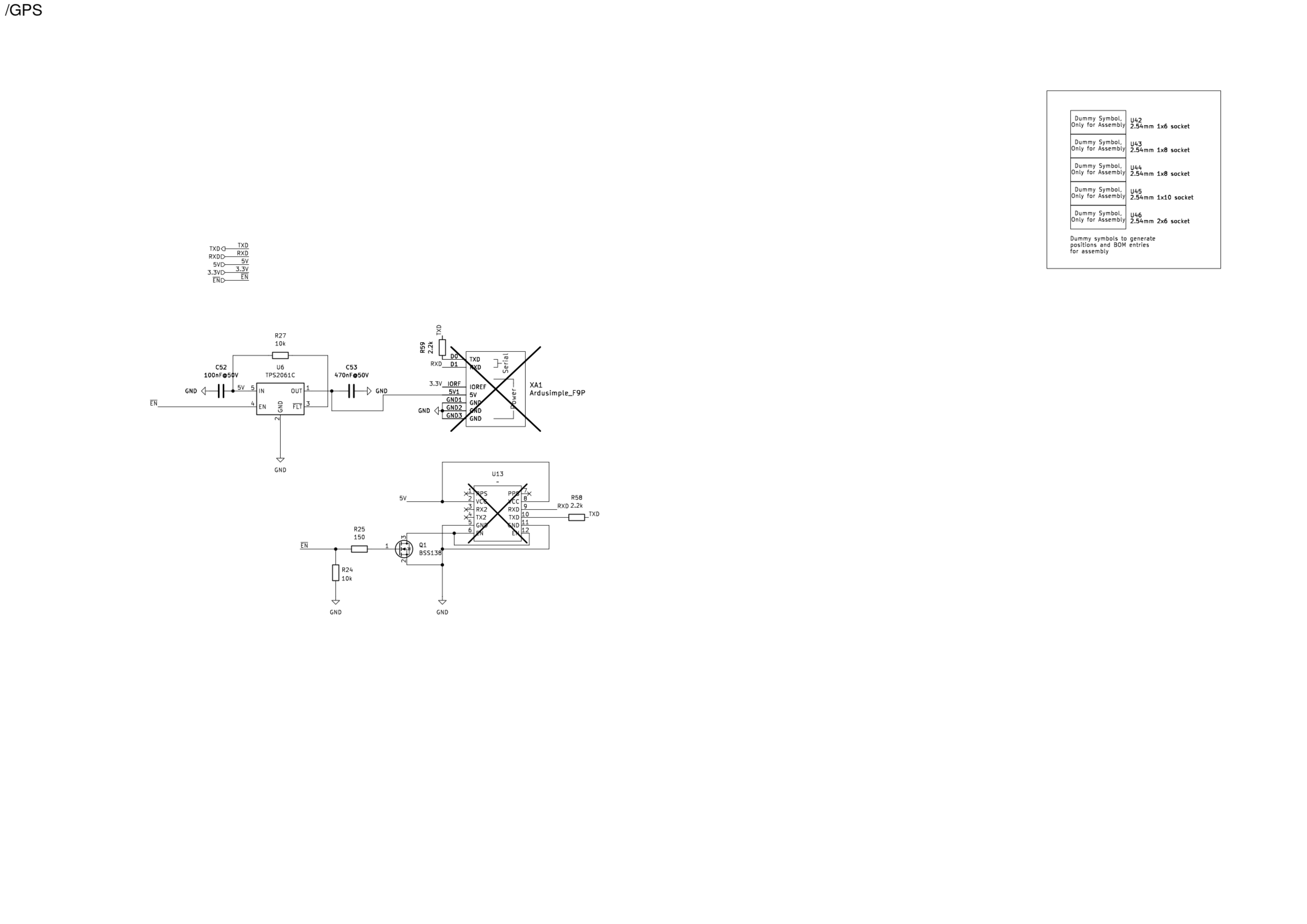

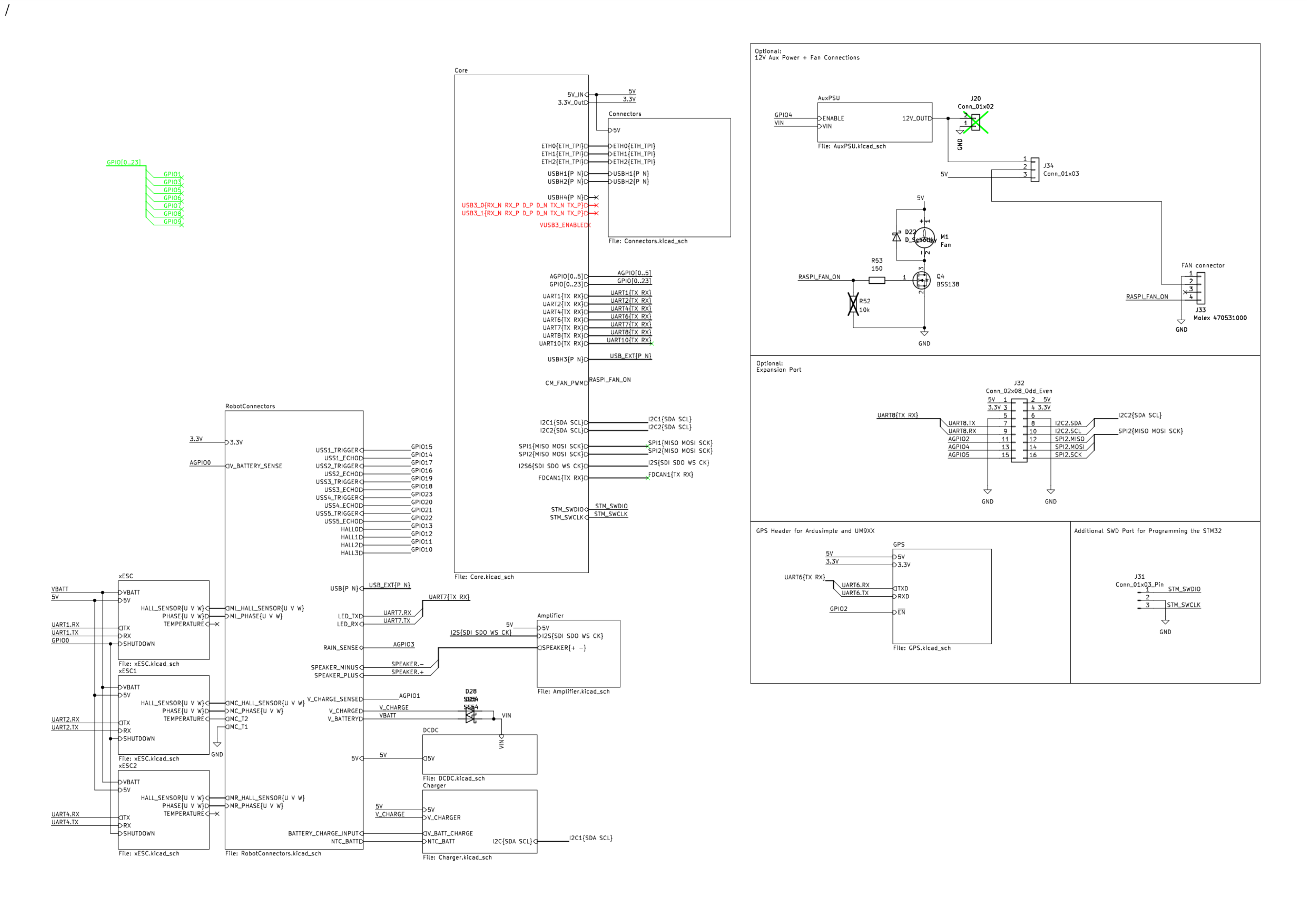

Schematic diff

Show schematic diff

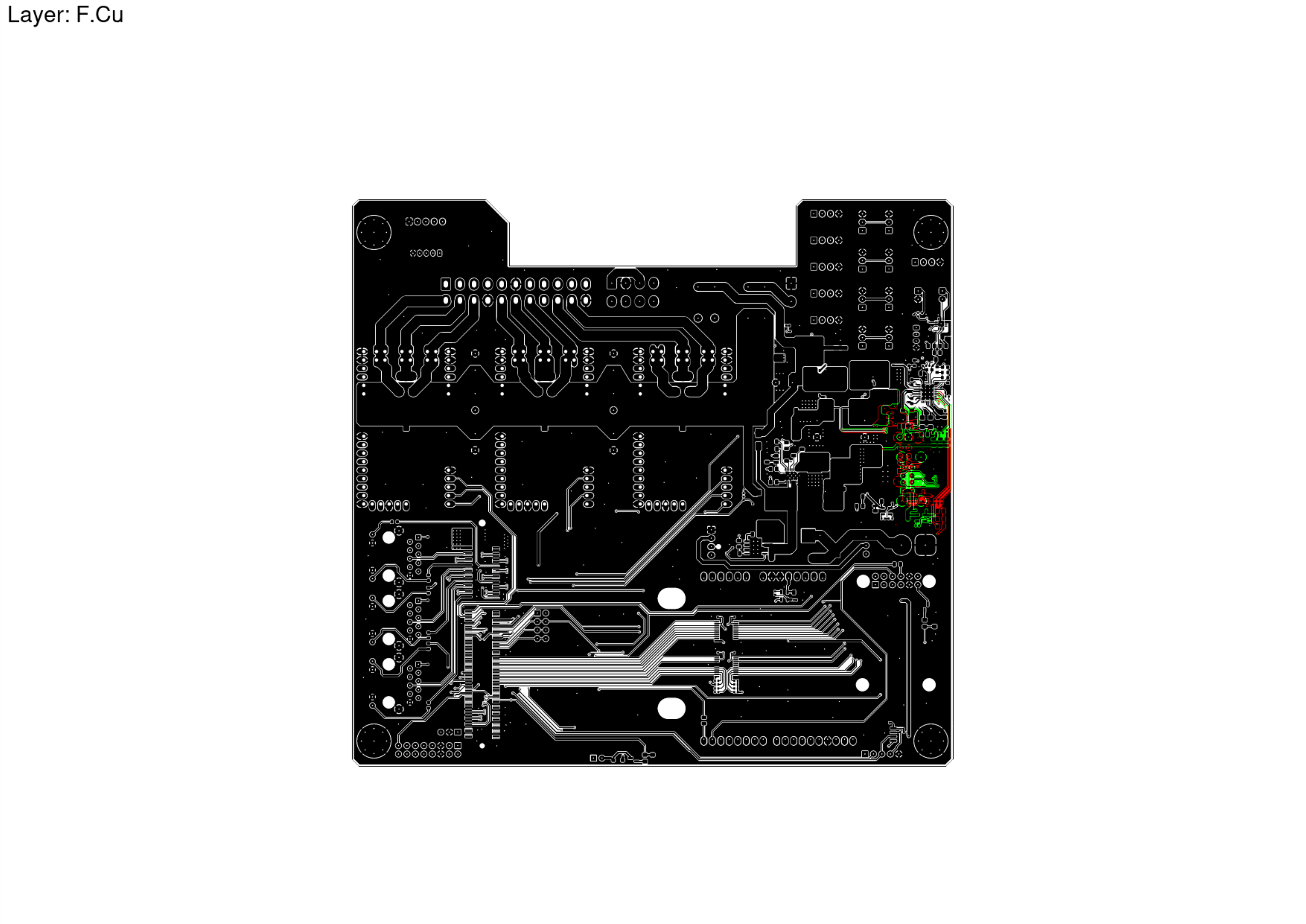

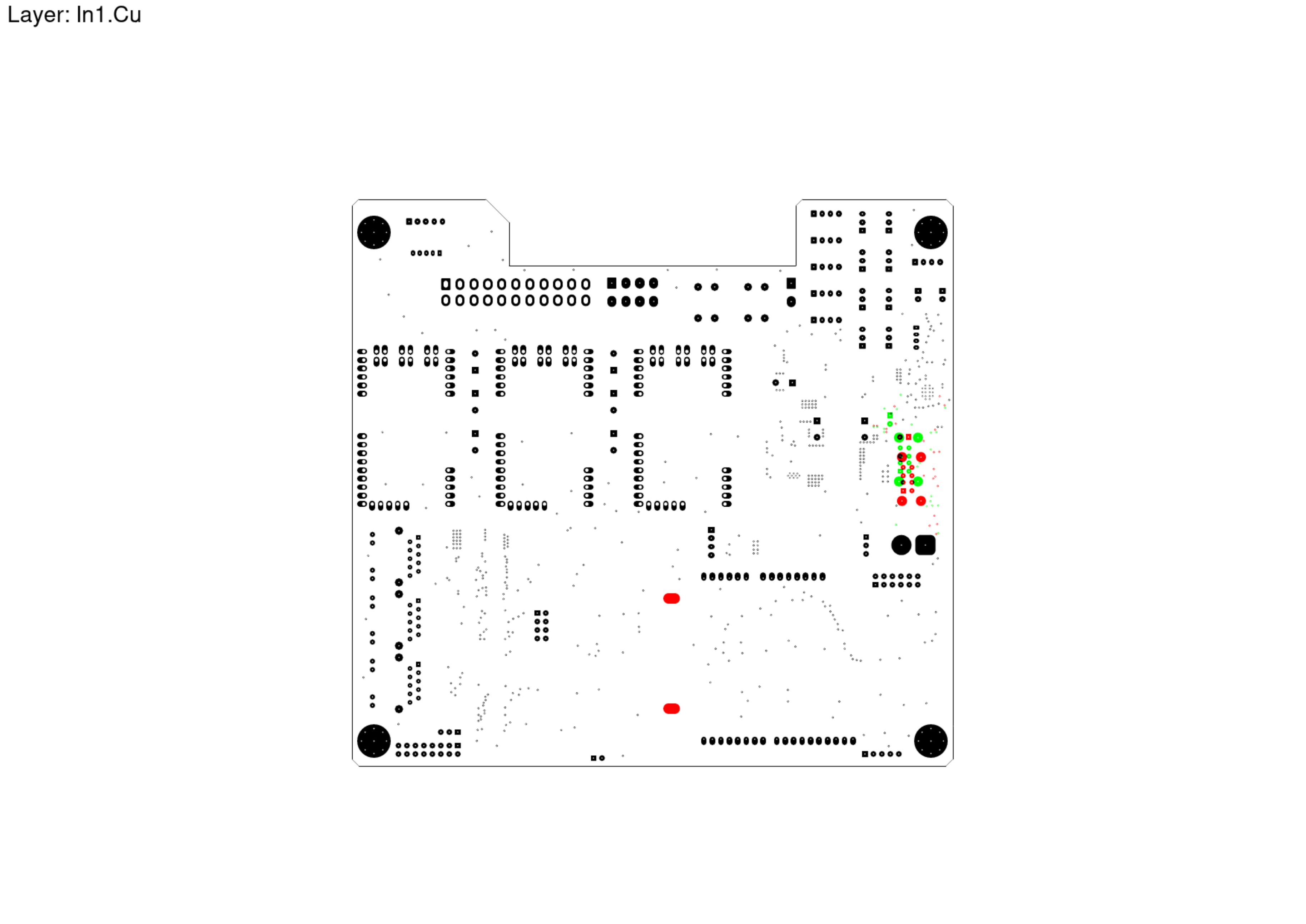

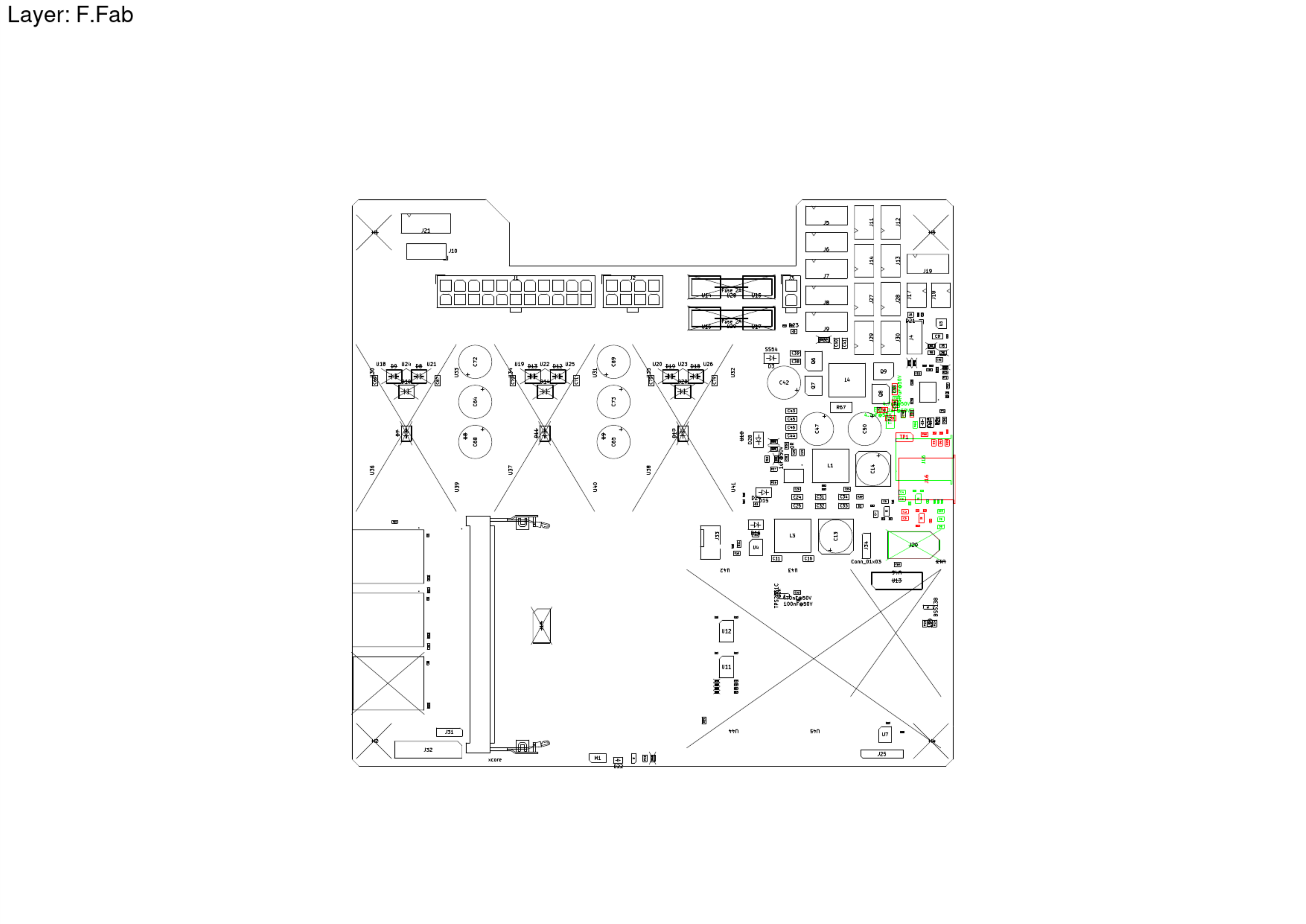

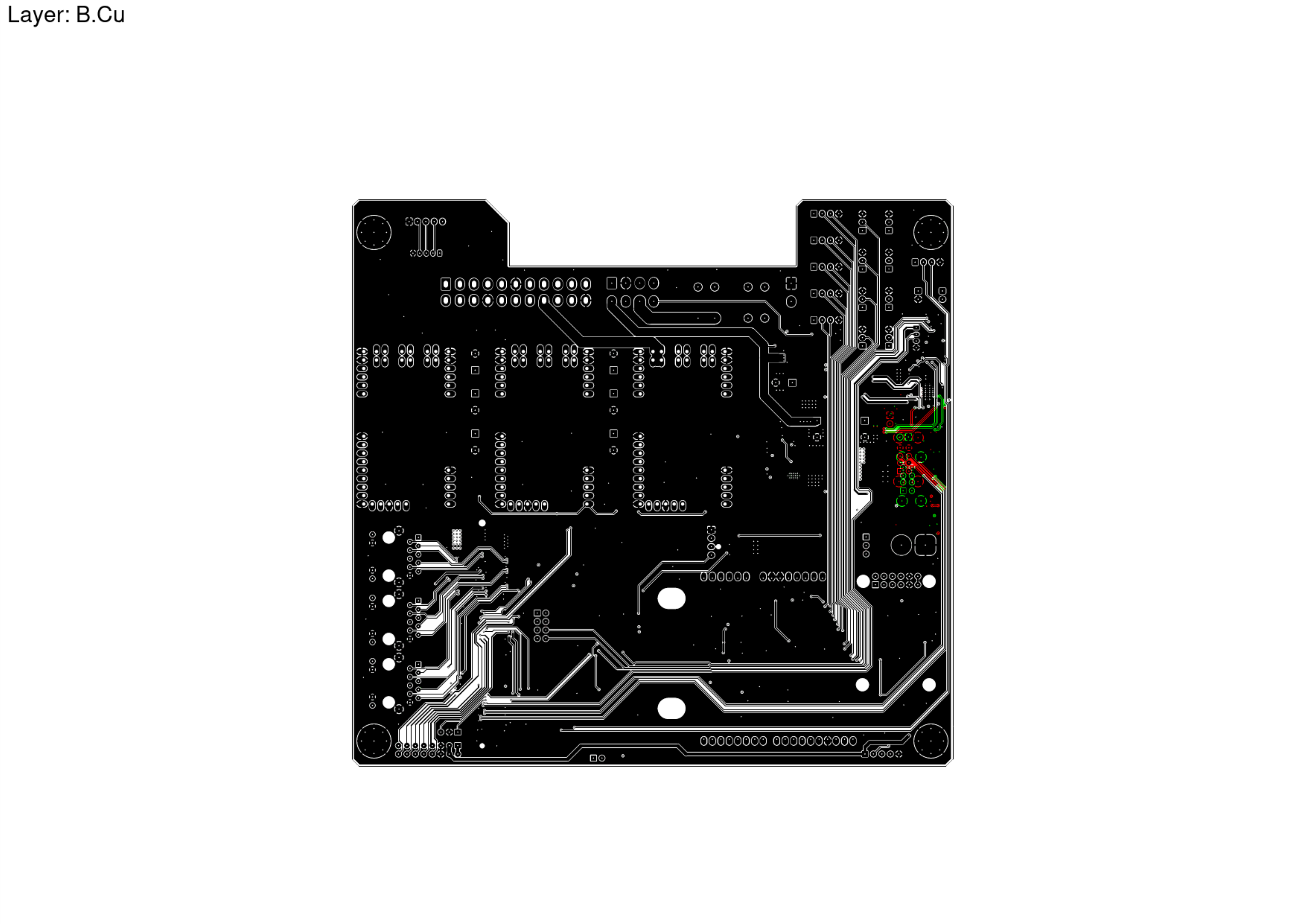

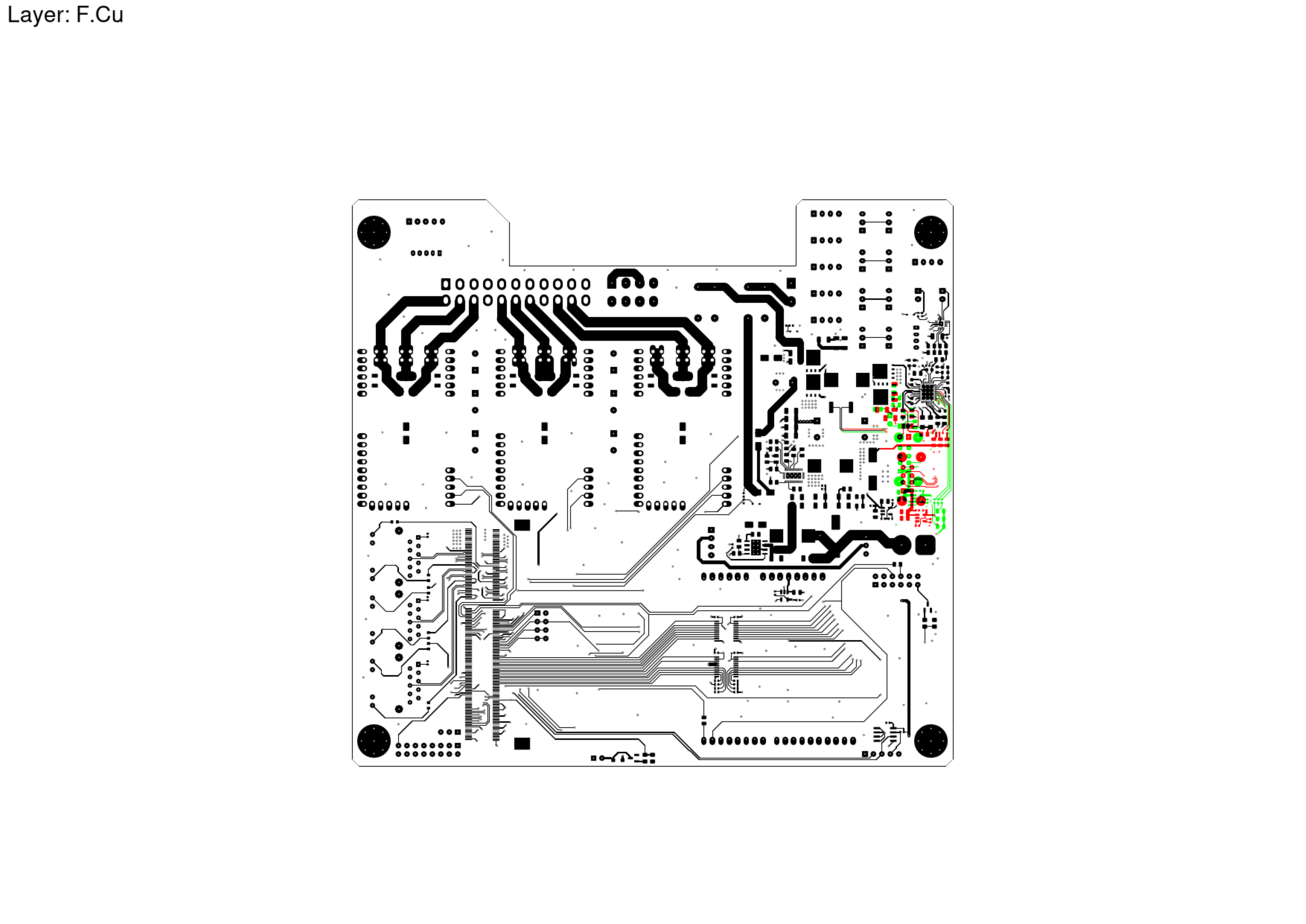

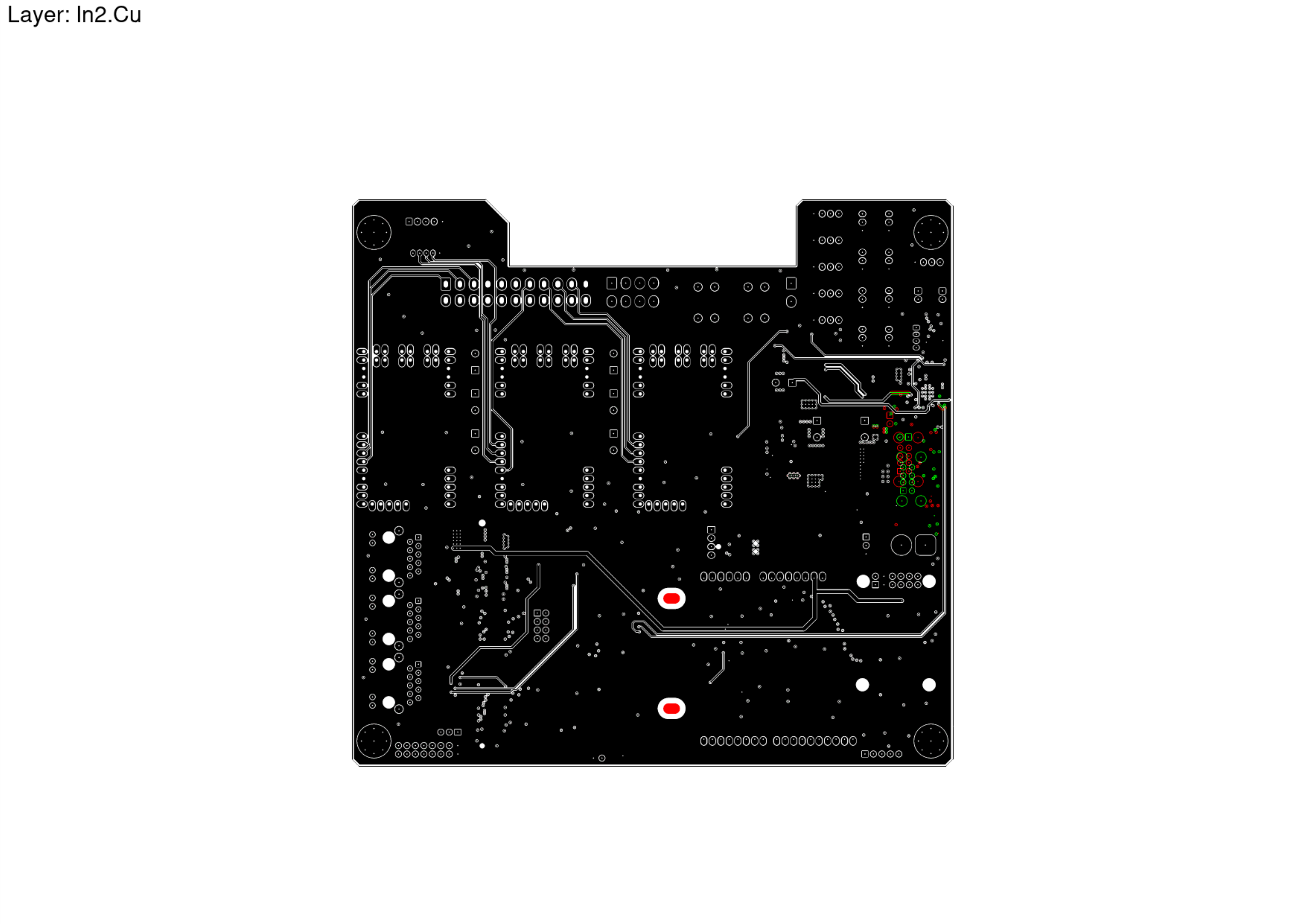

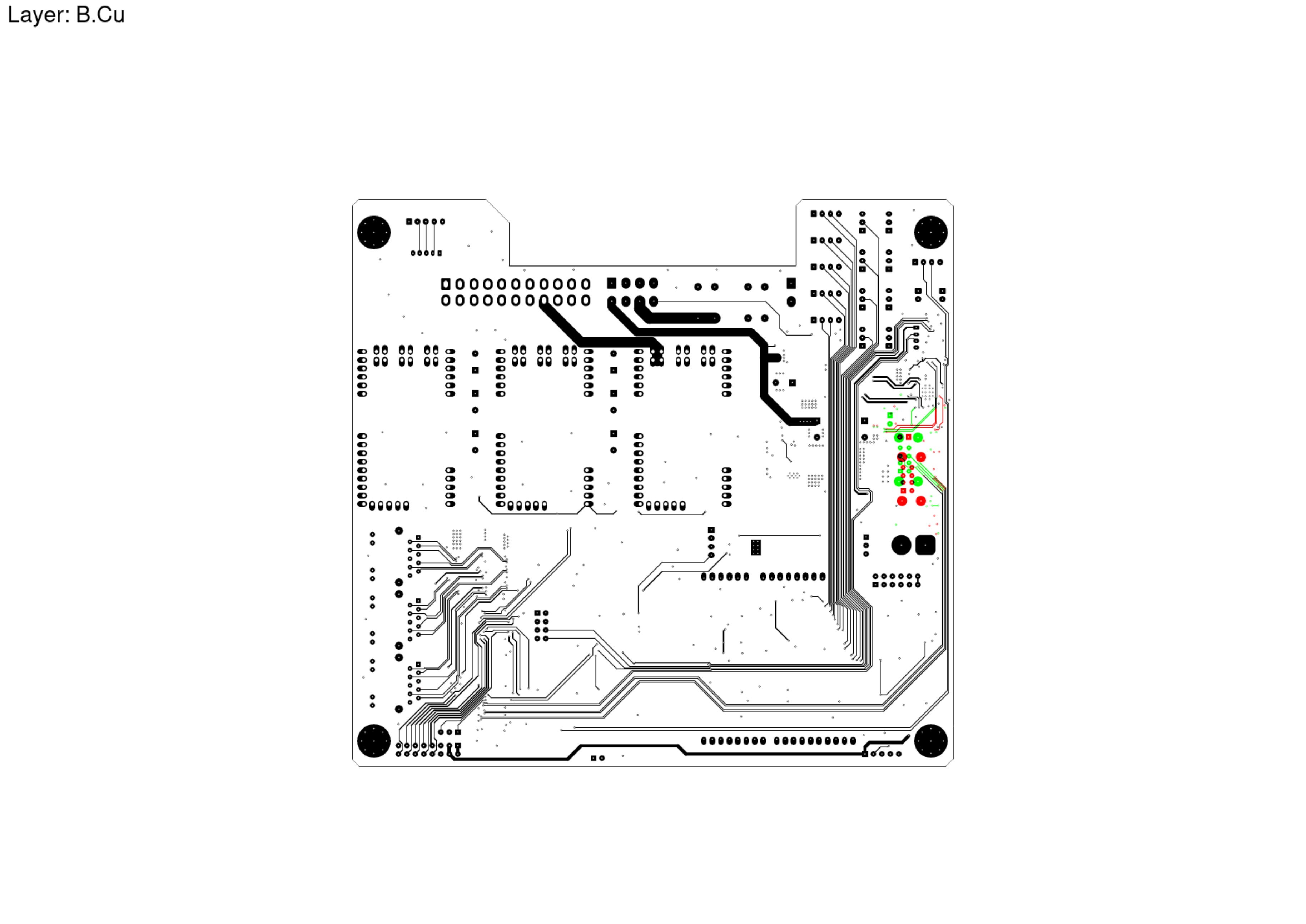

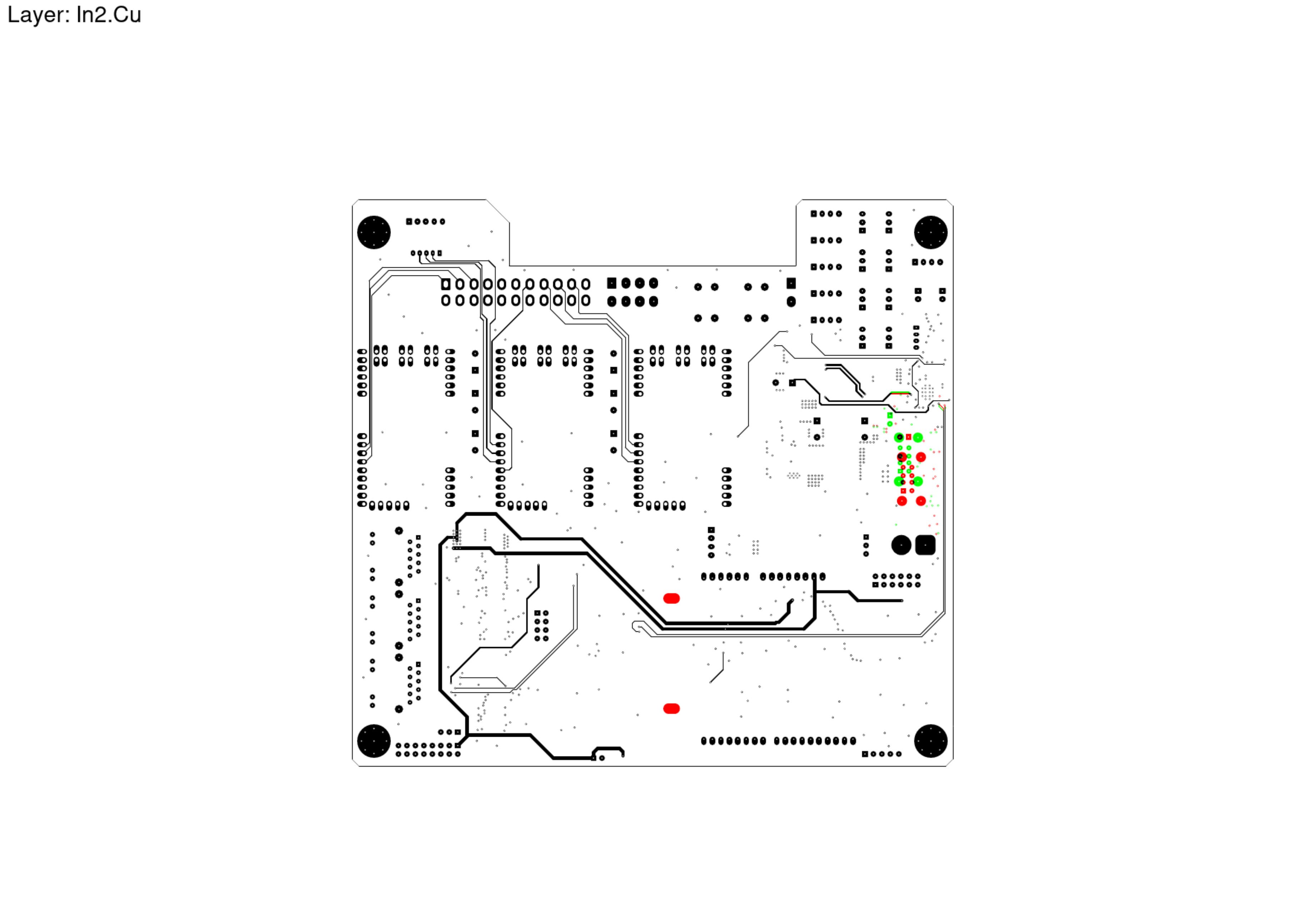

PCB diff (with copper fills)

Show PCB diff (with copper fills)

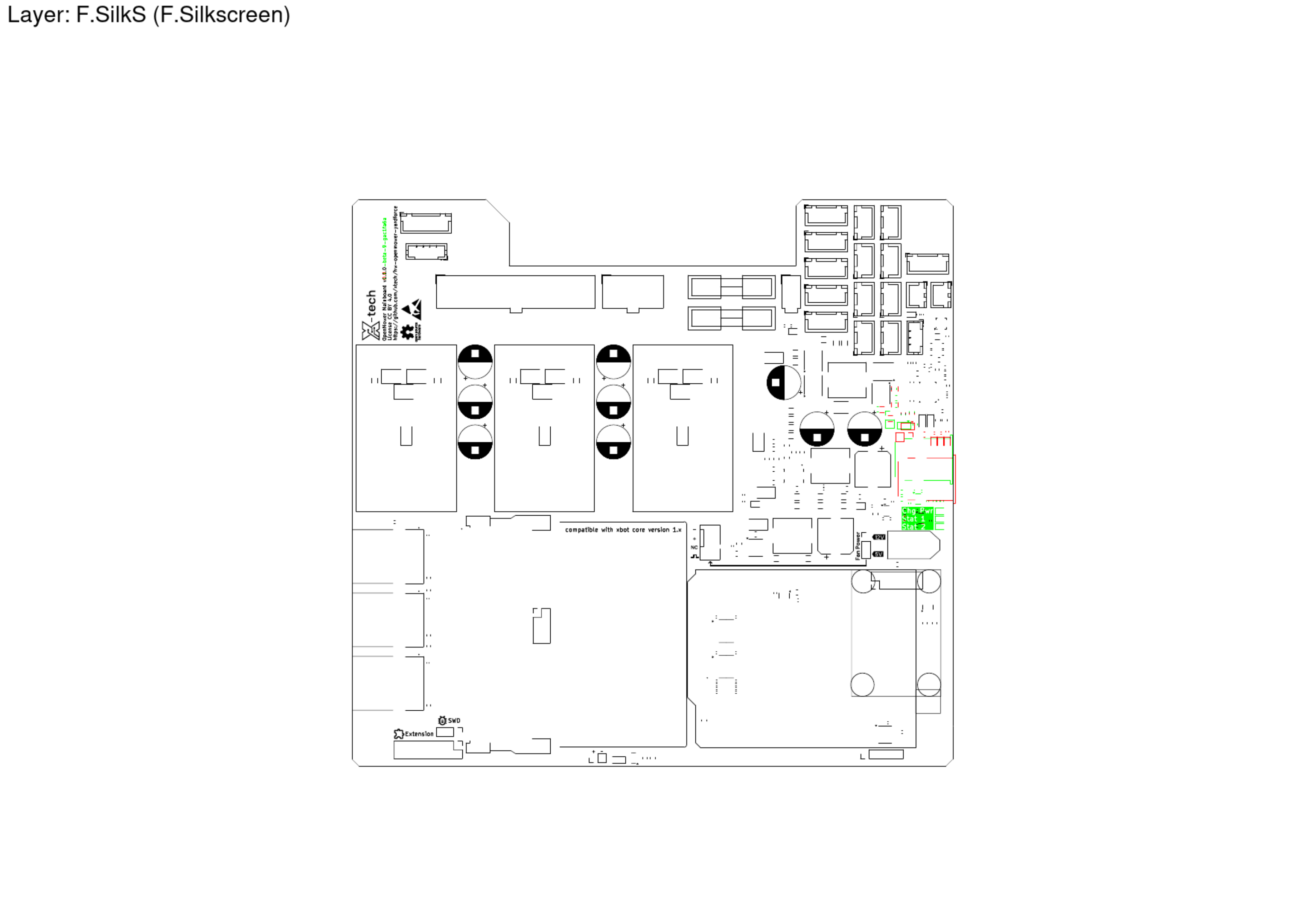

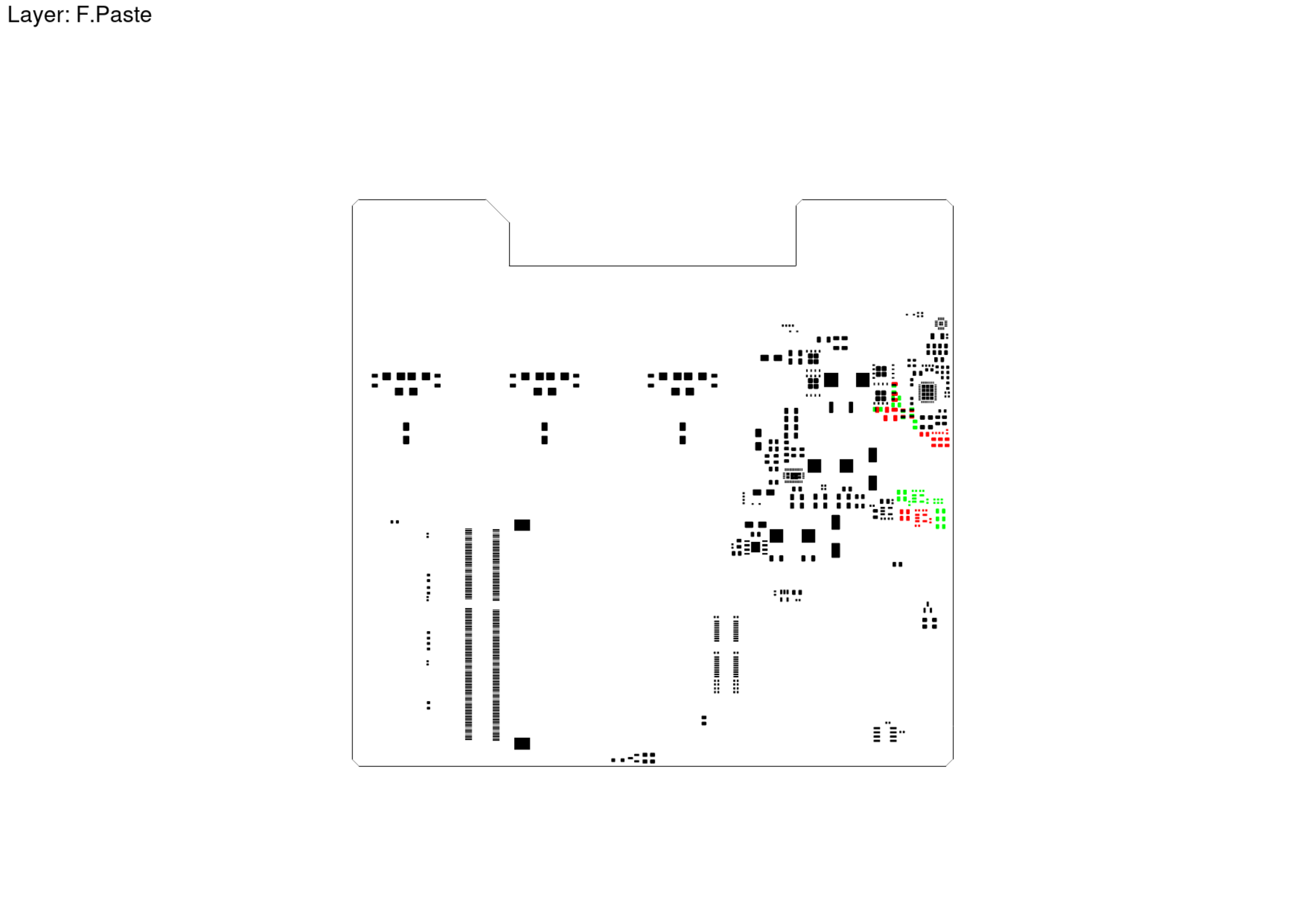

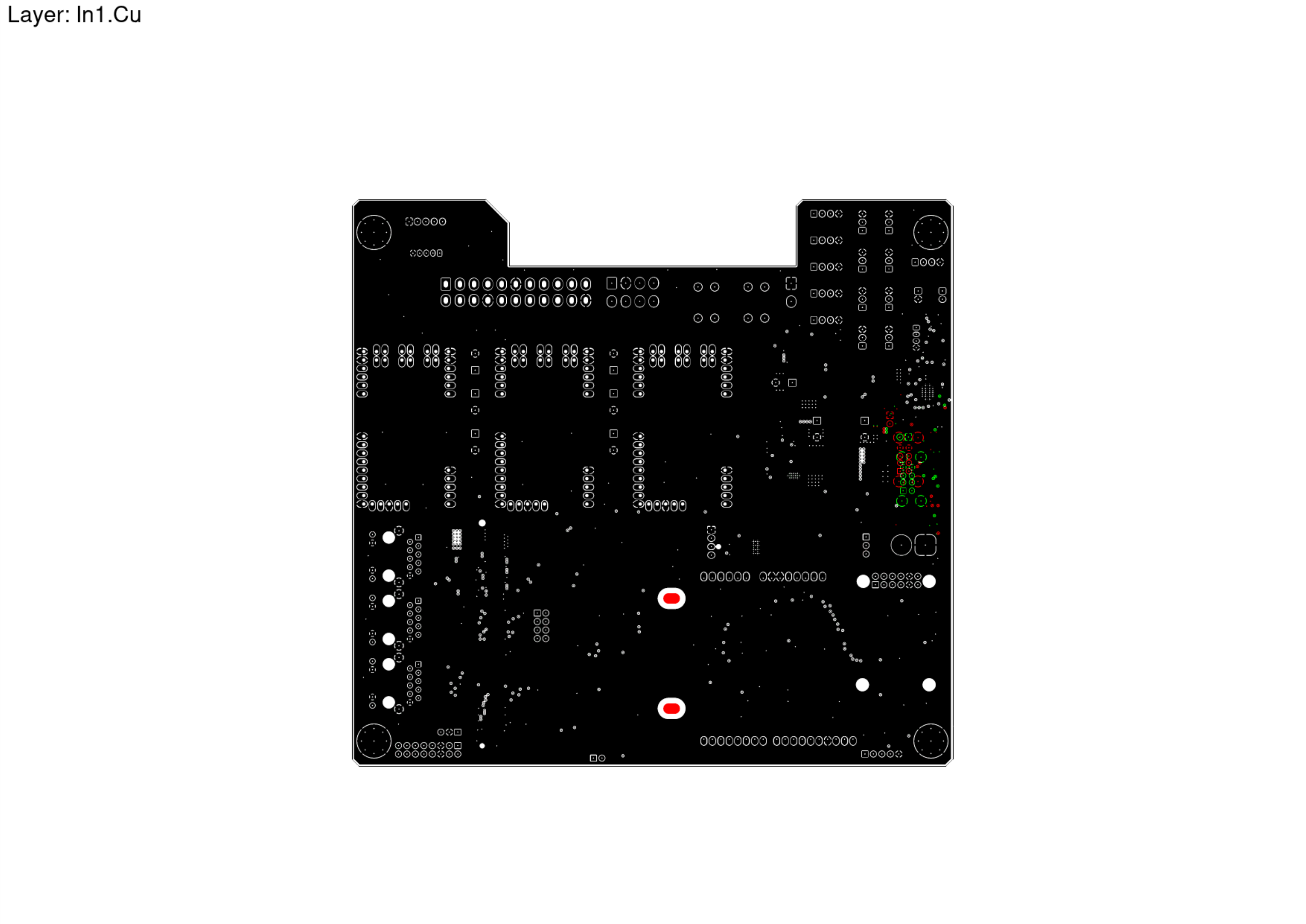

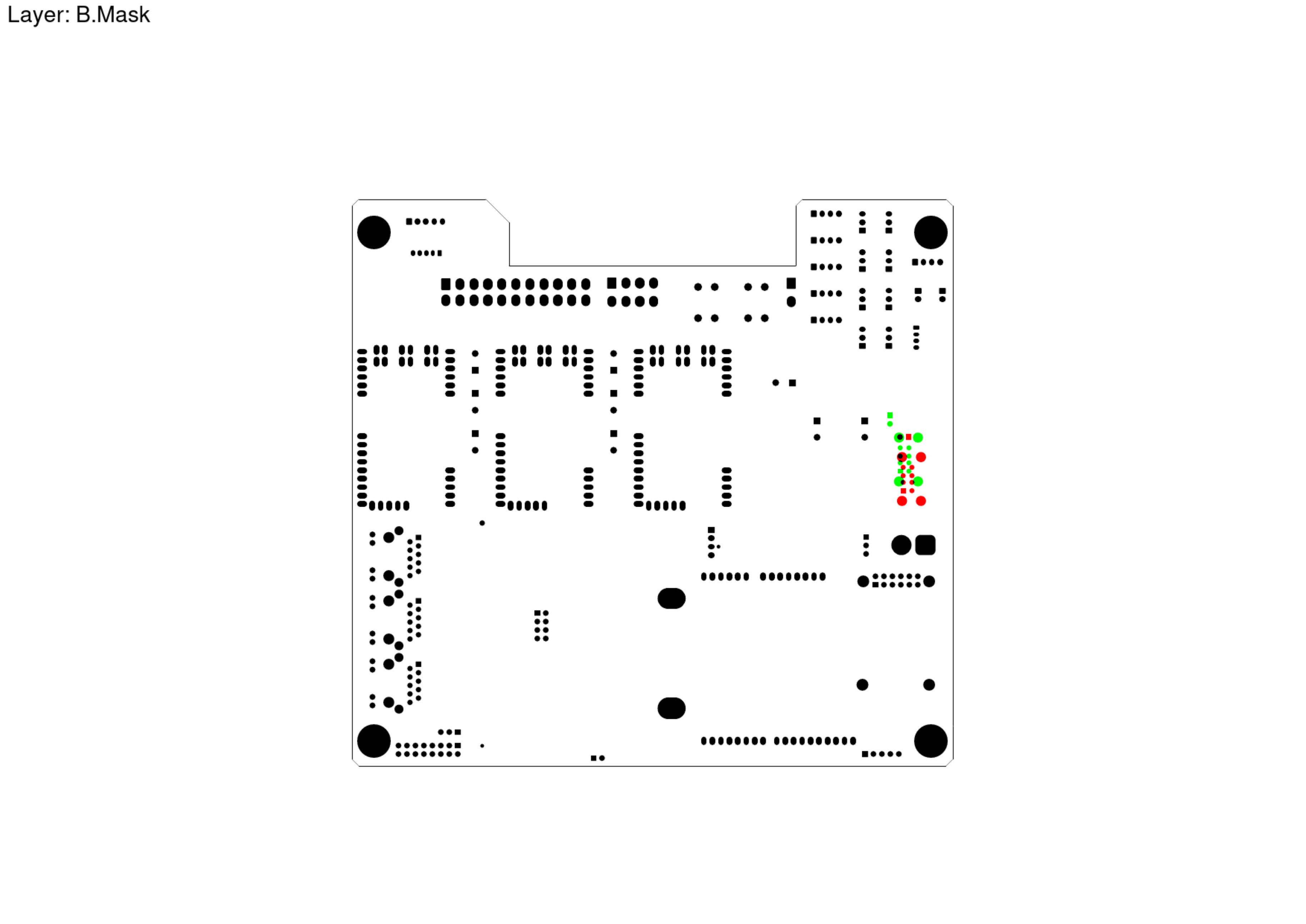

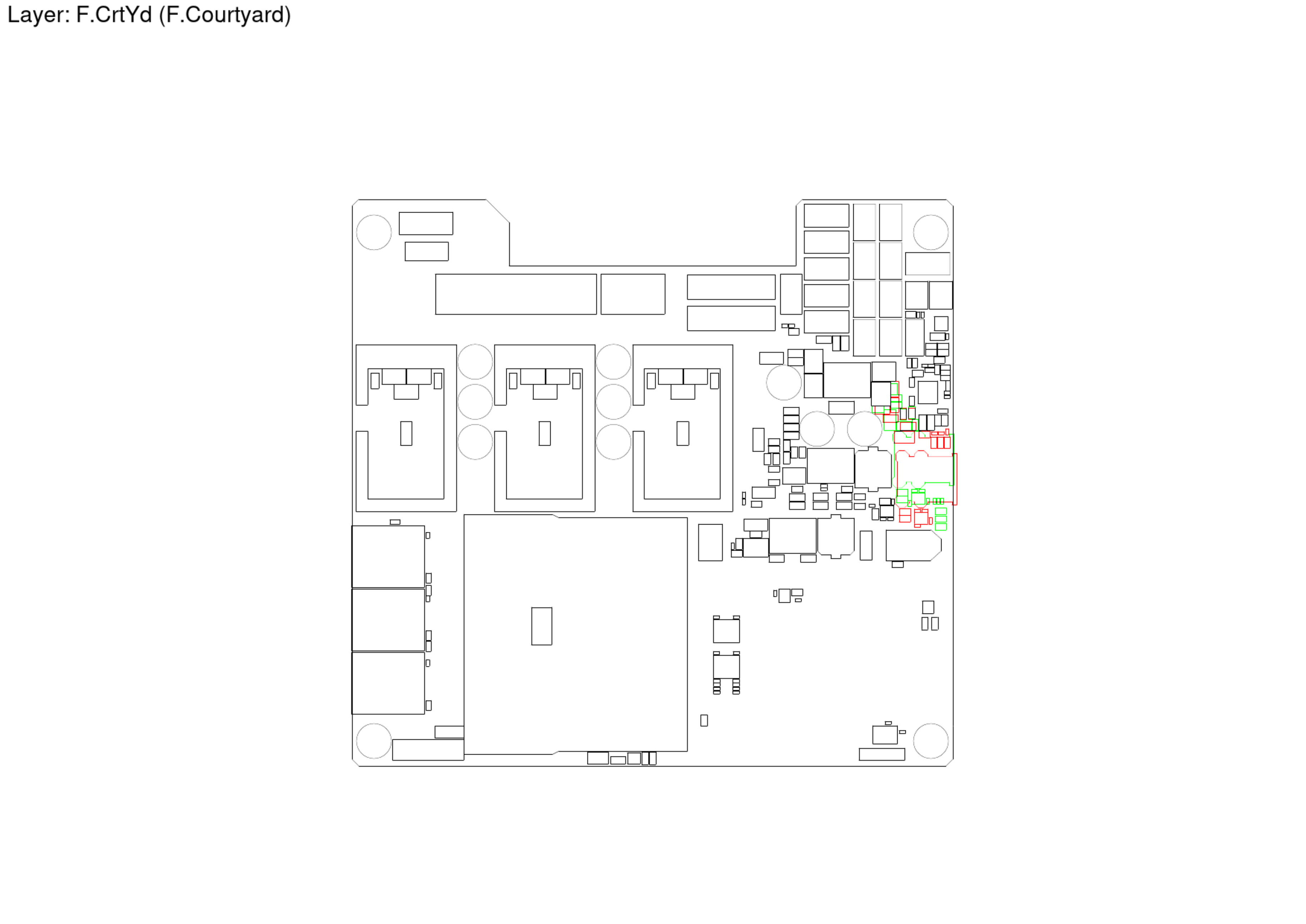

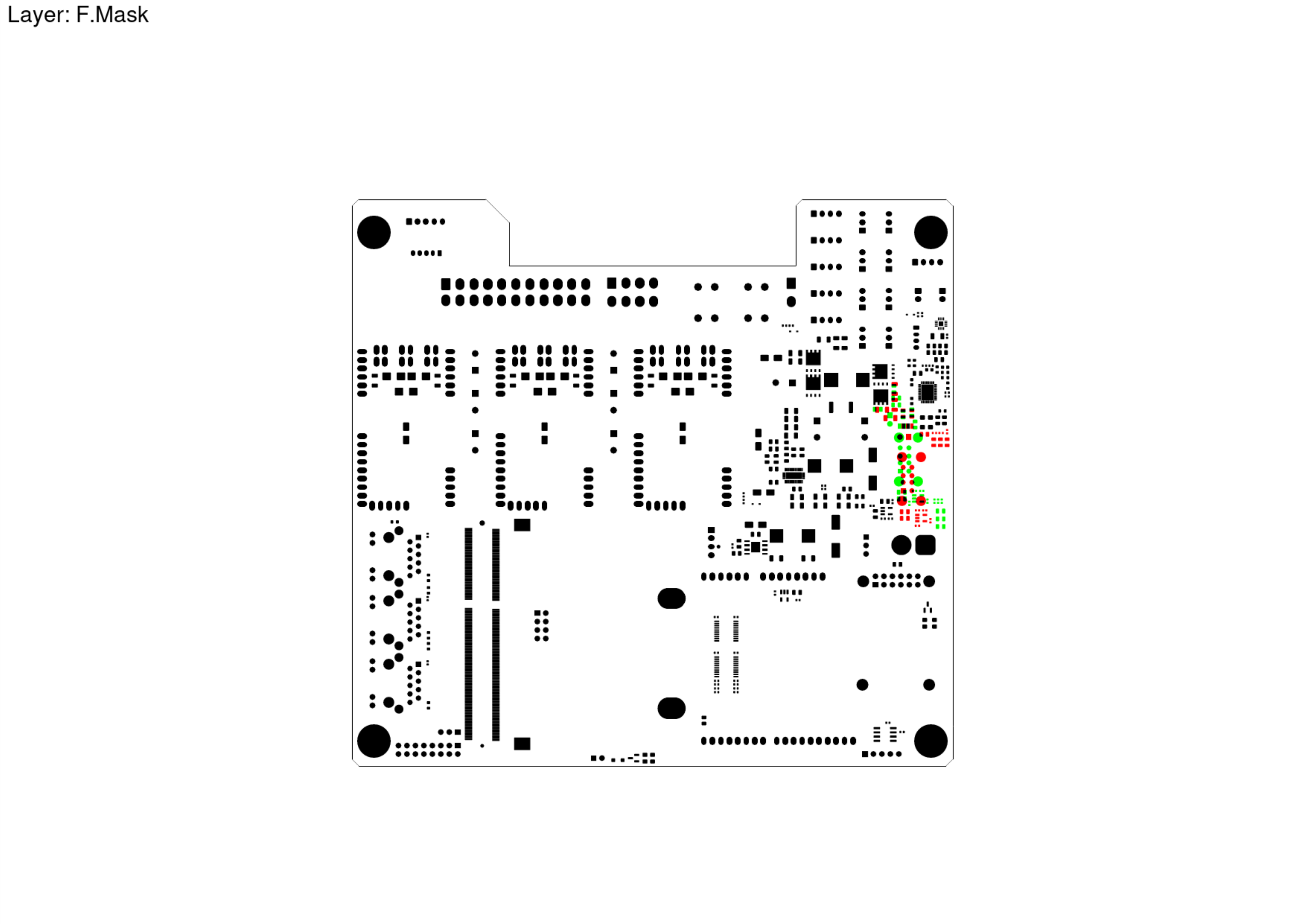

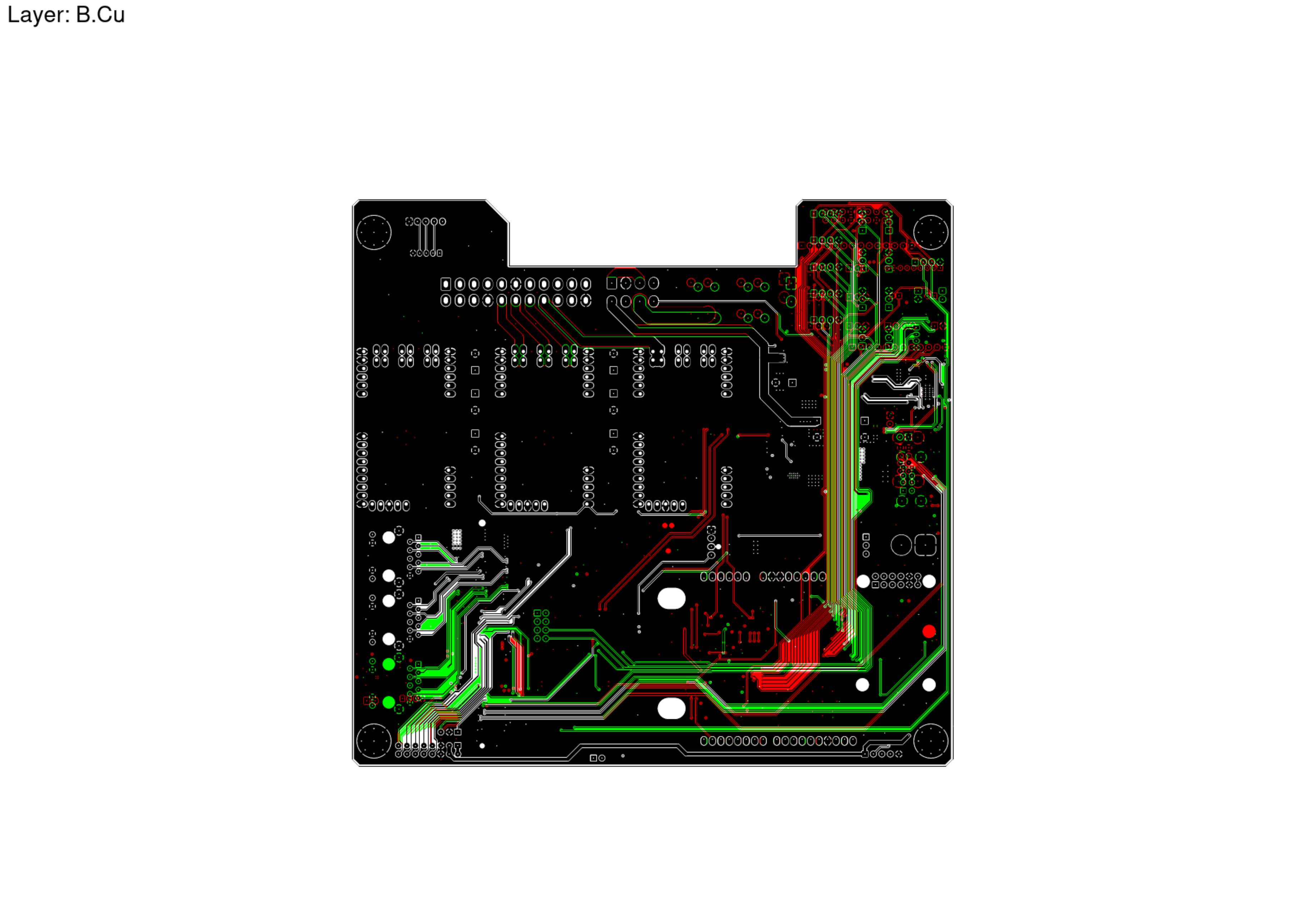

PCB diff (without copper fills)

Show PCB diff (without copper fills)

---

BOM

Show BOM diff

--- diff/bom_main_sorted.csv	2026-05-30 02:01:58.119210626 +0000
+++ diff/bom_current_sorted.csv	2026-05-30 02:01:58.119957518 +0000
@@ -49,10 +49,10 @@
 1uF@50V,C51,C_0805_2012Metric,C354368
 100nF@50V,C52,C_0402_1005Metric,C307331
 470nF@50V,C53,C_0805_2012Metric,C13967
-4.7uF@50V,C55,C_1206_3216Metric,C29823
-4.7uF@50V,C56,C_1206_3216Metric,C29823
-4.7uF@50V,C58,C_1206_3216Metric,C29823
-4.7uF@50V,C59,C_1206_3216Metric,C29823
+4.7uF@50V,C55,C_0805_2012Metric,C2991173
+4.7uF@50V,C56,C_0805_2012Metric,C2991173
+4.7uF@50V,C58,C_0805_2012Metric,C2991173
+4.7uF@50V,C59,C_0805_2012Metric,C2991173
 100nF,C63,C_0402_1005Metric,C307331
 220uF@80V,C64,CP_Radial_D10.0mm_P5.00mm,C106516
 220uF@80V,C65,CP_Radial_D10.0mm_P5.00mm,C106516
@@ -106,7 +106,6 @@
 Conn_01x02,J17,JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical,C2910525
 Conn_01x02,J18,JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical,C2910525
 Conn_01x04,J19,JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical,C144395 C144394
-Conn_01x02,J20,AMASS_XT60-F_1x02_P7.20mm_Vertical,C98734
 Conn_01x05,J21,JST_XH_B5B-XH-A_1x05_P2.50mm_Vertical,C157991
 HR911130A,J23,HR911130A,C54408
 HR911130A,J24,HR911130A,C54408

---

📦 Download diffs | Download build outputs
