Quantum Hints

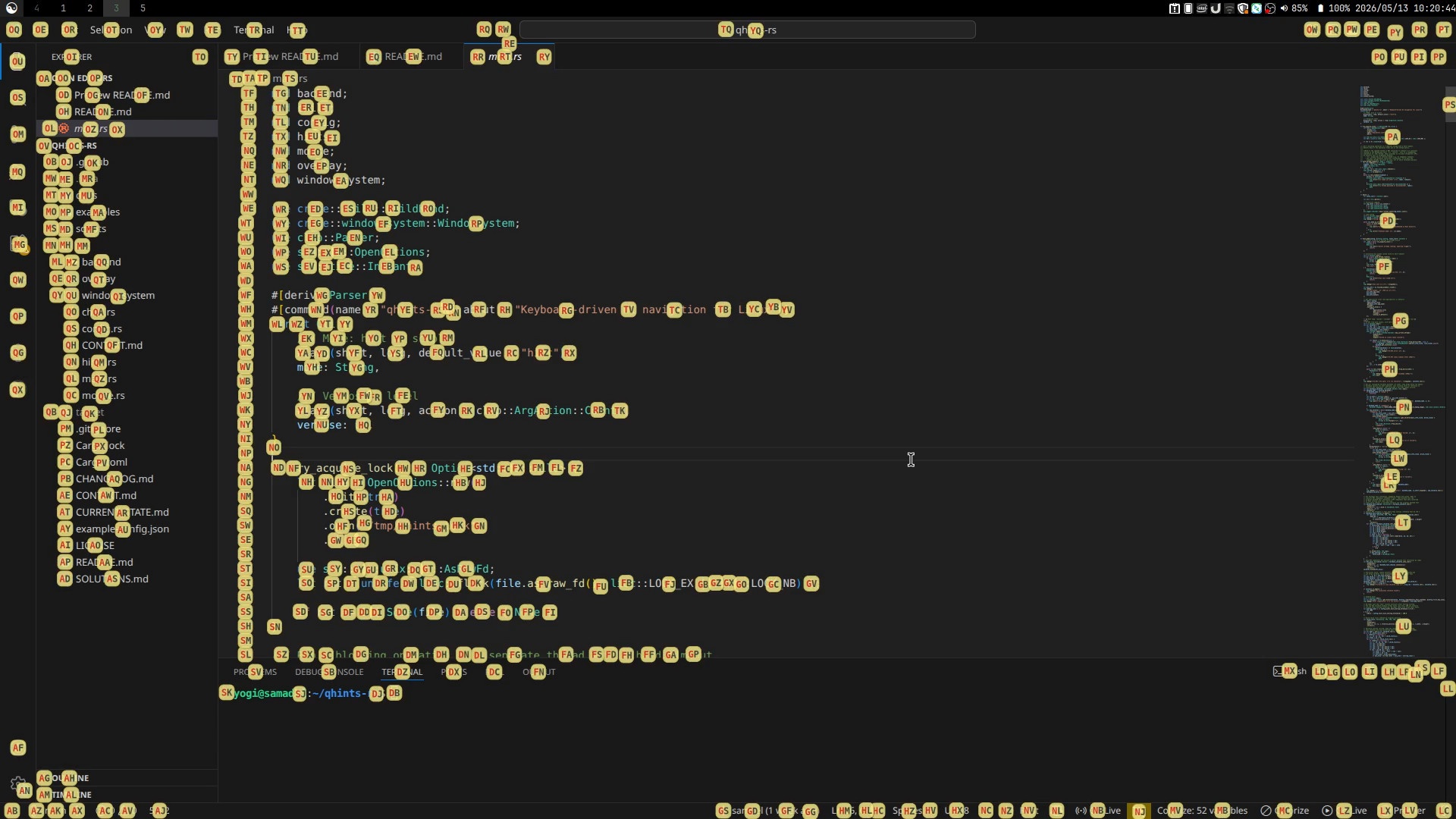

Keyboard-driven UI navigation tool for Linux — Rust rewrite of qhints (a fork of hints by Alfredo Sequeida). Shows labelled overlays on screen elements, letting you click/hover them via keyboard.

Documentation: https://smllb.github.io/qhints-rs/

Demonstration on https://youtu.be/BWC7h5dmkI4

Contents

• Status
• Requirements
• Build
• Usage
• Configuration
  • Top-level fields
  • first_key_zones
  • hints fields
  • dev fields
  • application_rules fields
• Modes
• Backends
• Wayland

Status

Tested on X11 only. Wayland is not yet supported (see below).

Requirements

• X11 session
• AT-SPI D-Bus service (at-spi-dbus-bus.service)
• Rust + Cargo
• A compositor recommended (tested with picom on i3)

Debian/Ubuntu/Mint

sudo apt install xdotool libgtk-3-dev librsvg2-dev

For OCR: sudo apt install clang libclang-dev

Build

cargo build --release

For OCR support (optional):

cargo build --release --features ocr

Note: The OCR backend downloads ~35MB of models (text-detection.rten, text-recognition.rten) from AWS S3 on first run to ~/.cache/qhints/ocrs/ (code).

The binary is at target/release/qhints-rs.

Usage

Run directly:

./target/release/qhints-rs

Or via the wrapper script (logs to syslog):

./scripts/run-qhints.sh

i3 keybinding example

bindsym ctrl+shift+p exec --no-startup-id /home/yogi/qhints-rs/scripts/run-qhints.sh

Modes

Key	Behavior	How to use	Advanced
Type hint keys	Click an element	Type its label	—
Ctrl on last key	Hover instead of click	Type the label, hold Ctrl on the last key	—
Alt (toggle)	Double-click next pick	Press Alt → type a label	—
/ (toggle)	Select text	Press / → pick start → pick end	After picking start, press / or Ctrl → pick end → arrow keys to adjust → Tab to switch sides → Enter to confirm
Shift (toggle)	Drag something	Press Shift → pick source → pick destination	After picking source, press Ctrl → pick target → arrow keys to adjust → Tab to switch sides → Enter to confirm. Or press Shift again to see all monitors and pick a target anywhere.
Escape	Dismiss overlay	Press Escape	—

Options

Flag	Description
-m, --mode	hint (default) or scroll
-v	Verbosity (-v = debug, -vv = trace)

Configuration

Config file: ~/.config/qhints/config.json (or $XDG_CONFIG_HOME/qhints/config.json). All fields are optional — defaults are used for missing keys.

Top-level fields

Field	Type	Default	Description
complementary_keys_alphabet	string	qwertyuiopasdfghjklzxcvbnm	Characters used for hint labels (second+ chars in multi-char hints)
exit_key	integer	65307 (Escape)	Keycode to dismiss the overlay
hover_modifier	integer	4 (Ctrl)	Modifier mask held with the final hint key to hover instead of click
double_click_key	integer	65513 (Alt)	Toggle double-click mode
text_select_key	integer	47 (/)	Toggle text selection mode
drag_key	integer	65505 (Shift)	Toggle drag mode
advanced_modifier	integer	0	Global key for advanced mode (e.g. 65507 for Ctrl); 0 = per-mode default
overlay_x_offset	integer	0	Horizontal offset for overlay position
overlay_y_offset	integer	0	Vertical offset for overlay position
backends	array of strings	["imageproc"]	Backend(s) to use in order
first_key_zones	array of arrays of strings	10/9/7 QWERTY grid	Keys assigned to each screen zone
hints	object	see below	Hint label appearance
application_rules	object	{"default": {...}}	Per-application overrides keyed by app name

first_key_zones (default)

Defines the keyboard-to-screen spatial mapping. Each outer array element is a row (top to bottom); each inner string is a cell (left to right). Rows may have different column counts — shorter rows' last cells span horizontally to fill the remaining screen width.

Default: single-key-per-cell for all 26 letters:

[
  ["q","w","e","r","t","y","u","i","o","p"],
  ["a","s","d","f","g","h","j","k","l"],
  ["z","x","c","v","b","n","m"]
]

Hint appearance fields

Field	Type	Default	Description
hint_height	float	20.0	Label height in pixels
hint_width_padding	float	10.0	Horizontal padding inside label
hint_font_size	float	14.0	Font size
hint_font_face	string	monospace	Font family
hint_font_r/g/b/a	float	0.16/0.16/0.16/1.0	Text color
hint_first_font_r/g/b/a	float	0.85/0.1/0.1/1.0	First-character color
hint_first_font_size_boost	float	0.0	Extra size for the first character
hint_pressed_font_r/g/b/a	float	0.45/0.75/0.25/1.0	Typed character color
hint_background_r/g/b/a	float	1.0/0.95/0.55/0.95	Label background
hint_border_r/g/b/a	float	0.78/0.72/0.36/1.0	Label border
hint_border_width	float	1.0	Border width in pixels
hint_corner_radius	float	6.0	Label corner radius
hint_upercase	bool	true	Uppercase hint labels
hint_overlap_threshold	float	60.0	Hint box overlap culling (0=all, 100=aggressive)
hint_opacity	float	1.0	Global hint opacity multiplier
hint_shadow	bool	true	Enable drop shadow
hint_shadow_r/g/b/a	float	0.0/0.0/0.0/0.3	Shadow color
hint_shadow_offset_x/y	float	1.0/1.0	Shadow offset

Text selection fields

Field	Default	Description
text_select_border_r/g/b/a	blue	Border in text selection mode
text_select_padding_left/right	0.0	Selection offset (fraction of width)
text_select_advanced_key	0	Per-mode advanced toggle key
text_select_nudge_step_x/y	0.03	Arrow nudge step
text_select_nudge_step_shift_x/y	0.15	Shift+arrow nudge step
text_select_pulse_period_ms	1200	Marker pulse period
marker_pulse_interval_ms	83	Pulse redraw rate
marker_bright_duration_ticks	10	Flash duration on placement
text_selection_show_boxes	true	Show blue bounding boxes

Drag fields

Field	Default	Description
drag_advanced_key	0	Per-mode advanced toggle key
drag_delay_ms	50	Delay before mousedown
drag_fullscreen_default	true	Auto fullscreen re-scan after source
drag_marker_shape	"circle"	"circle" or "square"
drag_marker_size	4.0	Marker radius
drag_show_boxes	true	Show green bounding boxes

advanced_border_extra_width

Default: 0.25. Extra border width when in advanced mode.

dev fields

Field	Type	Default	Description
show_grid	bool	false	Draw zone boundaries
hunt	bool	false	Re-scan after every action
hunt_timeout_ms	integer	300	Delay before re-scan (ms)
spotlight	bool	false	Dark overlay with holes around matching hints
spotlight_opacity	float	0.65	Darkness of spotlight
spotlight_radius	float	2.5	Radius multiplier for spotlight holes
advanced_spotlight_opacity	float	0.4	Spotlight in advanced mode
drag_spotlight_opacity	float	0.4	Spotlight in drag mode
show_text_boxes	bool	false	Debug: text word bounding boxes
show_bfs_boxes	bool	false	Debug: BFS component boxes
save_debug_images	bool	false	Save debug PNGs

application_rules fields

Field	Type	Default	Description
scale_factor	float	1.0	Coordinate scale for HiDPI
detection_scale	float	1.0	Upscale before CV (1–4)
states	array	[24, 25, 30]	AT-SPI states to filter
states_match_type	int	1 (all)	Match type
roles	array	excluded roles	AT-SPI roles to filter
roles_match_type	int	3 (none)	Match type
canny_min_val	int	15	Canny edge min threshold
canny_max_val	int	40	Canny edge max threshold
kernel_size	int	3	Canny kernel size

Backends

1. AT-SPI (primary) — walks the accessibility tree via D-Bus. Fast, async, respects application roles and states. Needs at-spi-dbus-bus.service running.
2. ocrs (optional, feature-gated) — OCR text detection. Produces word-level hints + BFS gap-filling for icons.
3. Imageproc (fallback) — Canny edge detection + BFS connected components + text line projection.

All configured backends run in order and their results are merged. Overlap culling prefers Text children over Element when overlap exceeds 80%.

Wayland

qhints-rs currently depends on:

• x11rb — window geometry, focus tracking, input emulation
• xdotool — mouse click simulation
• GTK3 overlay — may work under XWayland but is untested

To support Wayland natively, the following would need to be added:

• A window_system/wayland.rs backend using a Wayland client library for window info
• ext-image-capture-src or similar protocol for screenshot capture
• libei / ydotool for input emulation
• Testing across compositors (GNOME/KDE/Sway/Hyprland)

If this project helps you, consider sponsoring: https://github.com/sponsors/smllb

Contributions welcome.
