Project 3: Create a Data Warehouse with AWS Redshift

Summary

• Introduction
• Data Warehouse Schema Definition
• ETL process
• Project structure

---

Introduction

A music streaming startup, Sparkify, has grown their user base and song database and want to move their processes and data onto the cloud. Their data resides in S3, in a directory of JSON logs on user activity on the app, as well as a directory with JSON metadata on the songs in their app.

As their data engineer, you are tasked with building an ETL pipeline that extracts their data from S3, stages them in Redshift, and transforms data into a set of dimensional tables for their analytics team to continue finding insights in what songs their users are listening to. You'll be able to test your database and ETL pipeline by running queries given to you by the analytics team from Sparkify and compare your results with their expected results

In this project we are going to use two Amazon Web Services resources:

• S3
• AWS Redshift

The data sources to ingest into data warehouse are provided by two public S3 buckets:

1. Songs bucket (s3://udacity-dend/song_data), contains info about songs and artists. All files are in the same directory.
2. Event bucket (s3://udacity-dend/log_data), contains info about actions done by users, what song are listening, ... We have differents directories so we need a descriptor file (also a JSON) in order to extract data from the folders by path. We used a descriptor file (s3://udacity-dend/log_json_path.json) because we don't have a common prefix on folders

The objects contained in both buckets are JSON files. The song bucket has all the files under the same directory but
the event ones don't, so we need a descriptor file (also a JSON) in order to extract data from the folders by path. We used a descriptor file because we don't have a common prefix on folders

We need to ingest this data into AWS Redshift using COPY command. This command get JSON files from buckets and copy them into staging tables inside AWS Redshift.

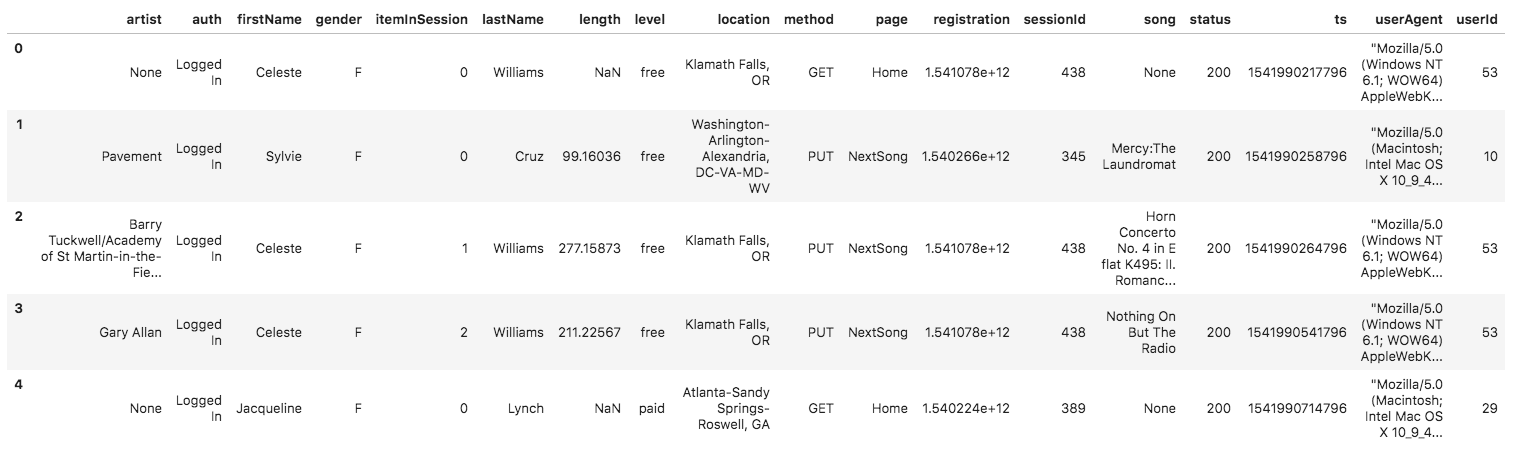

Log Dataset structure: https://video.udacity-data.com/topher/2019/February/5c6c3ce5_log-data/log-data.png Song dataset structure:

{"num_songs": 1, "artist_id": "ARJIE2Y1187B994AB7", "artist_latitude": null, "artist_longitude": null
, "artist_location": "", "artist_name": "Line Renaud", "song_id": "SOUPIRU12A6D4FA1E1",
"title": "Der Kleine Dompfaff", "duration": 152.92036, "year": 0}

---

Steps to execute this project

1. Go to dwh.cfg to fill in your [AWS] Key and Secret
2. run create_redshift_iam jupyter notebook and follow the important section at the bottom of the notebook.
3. run "python etl.py"
4. to destroy the infrastructure after finish reviewing , run "python destroy_redshift_iam.py"

Data Warehouse Schema Definition

This is the schema of the database

Staging tables

TABLE staging_songs

COLUMN	TYPE	FEATURES
num_songs	int
artist_id	varchar
artist_latitude	decimal
artist_longitude	decimal
artist_location	varchar
artist_name	varchar
song_id	varchar
title	varchar
duration	decimal
year	int

TABLE staging_events

COLUMN	TYPE	FEATURES
artist	varchar
auth	varchar
firstName	varchar
gender	varchar
itemInSession	int
lastName	varchar
length	decimal
level	varchar
location	varchar
method	varchar
page	varchar
registration	varchar
sessionId	int
song	varchar
status	int
ts	timestamp
userAgent	varchar
userId	int

Dimension tables

TABLE users

COLUMN	TYPE	FEATURES
user_id	int	distkey, PRIMARY KEY
first_name	varchar
last_name	varchar
gender	varchar
level	varchar

TABLE songs

COLUMN	TYPE	FEATURES
song_id	varchar	sortkey, PRIMARY KEY
title	varchar	NOT NULL
artist_id	varchar	NOT NULL
duration	decimal

TABLE artists

COLUMN	TYPE	FEATURES
artist_id	varchar	sortkey, PRIMARY KEY
name	varchar	NOT NULL
location	varchar
latitude	decimal
logitude	decimal

TABLE time

COLUMN	TYPE	FEATURES
start_time	timestamp	sortkey, PRIMARY KEY
hour	int
day	int
week	int
month	int
year	int
weekday	int

Fact table

TABLE songplays

COLUMN	TYPE	FEATURES
songplay_id	int	IDENTITY (0,1), PRIMARY KEY
start_time	timestamp	REFERENCES time(start_time) sortkey
user_id	int	REFERENCES users(user_id) distkey
level	varchar
song_id	varchar	REFERENCES songs(song_id)
artist_id	varchar	REFERENCES artists(artist_id)
session_id	int	NOT NULL
location	varchar
user_agent	varchar

---

ETL process

All the transformations logic (ETL) is done in SQL inside Redshift.

There are 2 main steps:

1. Ingest data from s3 public buckets into staging tables:
2. Insert record into a star schema from staging tables

Project structure

The structure is:

• create_tables.py - This script will drop old tables (if exist) ad re-create new tables
• etl.py - This script orchestrate ETL.
• sql_queries.py - This is the ETL. All the transformatios in SQL are done here.
• /img - Directory with images that are used in this markdown document

We need an extra file with the credentials an information about AWS resources named dhw.cfg
