Kaffa Mobile - Pre Qualification Test

This repository contains my results of a test to pre qualify to a job opportunity as a Sotware Developer Analyst at Kaffa Mobile

Table of Contents

• Installation
• Technologies
• Exercices
• Test
• License

---

Installation

• Install NodeJS

• Clone this repo to your local machine (preferably on C:/)

• Open the command prompt and navigate to the repository root

• Execute this command to install the dependencies:

$ npm install

• Execute this command to install JSON Server:

$ npm install -g json-server

• Execute this command to run the application

$ npm start

• Only if you get an error, execute instead this command to run only the main server without the clock API:

$ npm run server

• Open your browser and access the local host on port 5005 👉 http://localhost:5005

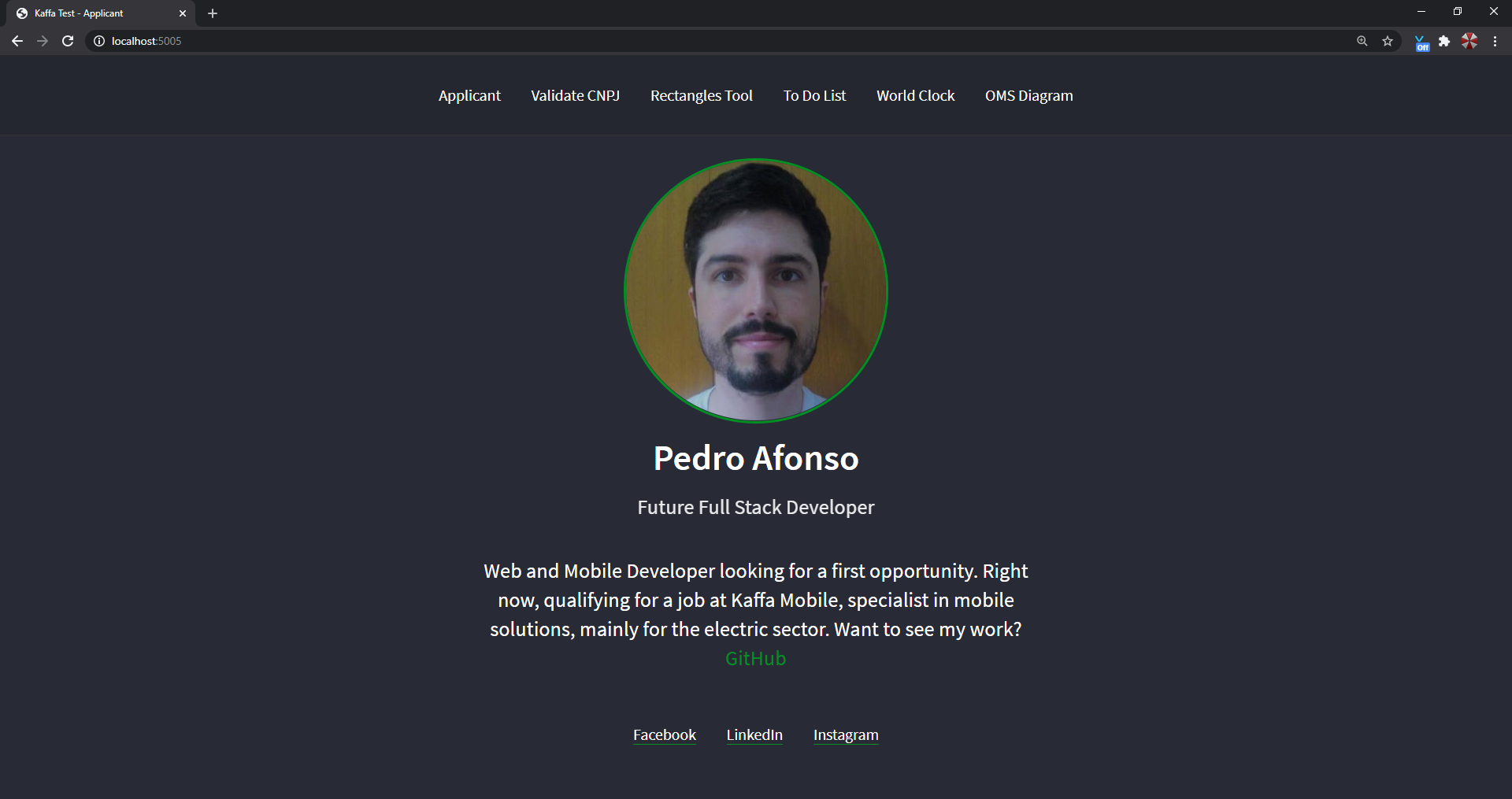

• You are all set up! You should see the Home Page:

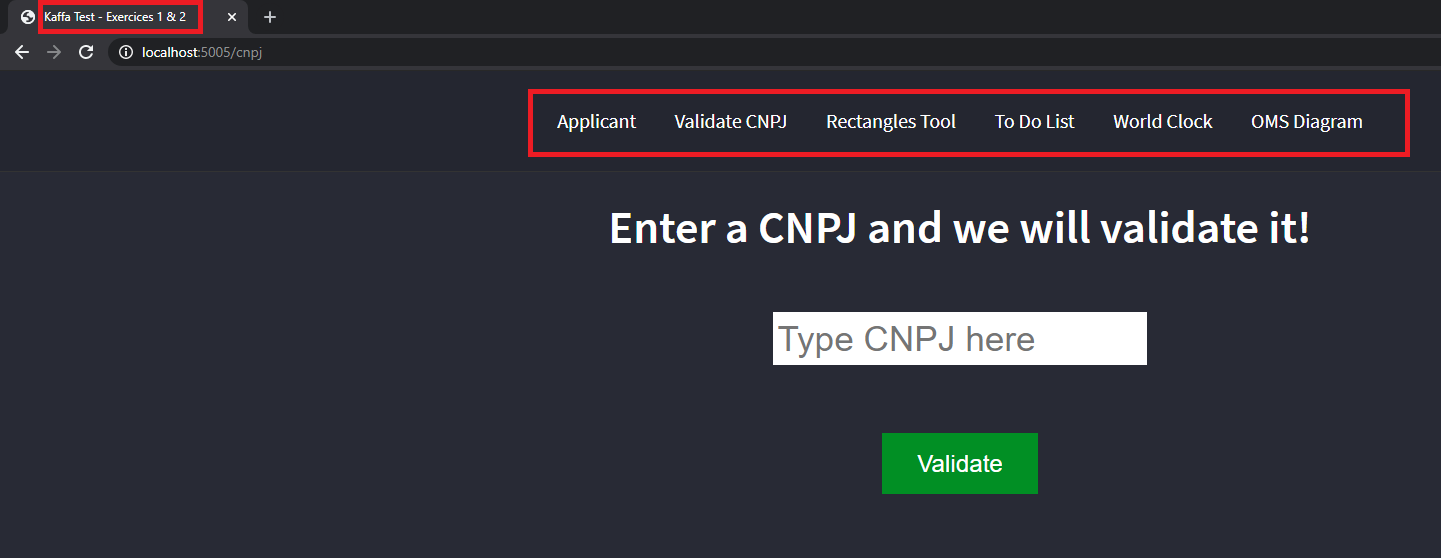

• You can access all the pages and exercices reponses using the upper menu. Also, note that title of the page, on the browser tab, shows which exercices you are accessing.

• ❗ If you have any problems on installing or running the application, please fell free to contact me by any means.
  • Call me or send a WhatsApp message: +55 35 9 9151 6117
  • Send an e-mail: pedroafonso23@yahoo.com.br
  • Facebook
  • LinkedIn
  • Instagram

---

Technologies

To develop the present application, I used the following technologies and resources:

• NodeJS
• JavaScript
• HTML5
• CSS3
• Nodemon (auto update the server, useful while developing)
• Nunjucks (template engine to reuse and add powerful resources to HTML, like FOR loops)
• Npm run all (to easily run more than one server in parallel)
• Express (powerful framework for NodeJS that helps to create servers and routes)
• SQLite 3 (SQL database)
• Axios (promise based HTTP client for the browser and NodeJS, used for API requests)
• JSON Server (easily create a REST API)

---

Exercices

There are 8 exercices in total and all of them were solved in this same web application.
You may navigate trough the exercices by clicking on the tabs of the upper menu.
The first tab Applicant is a short introduction to myself and the purpose of this application.
On the subsection below, I will explain how I solved each proposed exercice, and show trough GIFs and screenshots how it works.

Exercices 1 & 2 - Validate CNPJ format and verification digits

• These exercieces consists of:

  • Given a string, check if it looks like a CNPJ, considering two formats:
    Formatted:
    "00.000.000/0000-00"
    Number only:
    "00000000000000"
  • Validate if it’s a well-formed CNPJ, considering the “check digits” as defined by Receita Federal.
  • Don’t use a library. You should write the validation code.

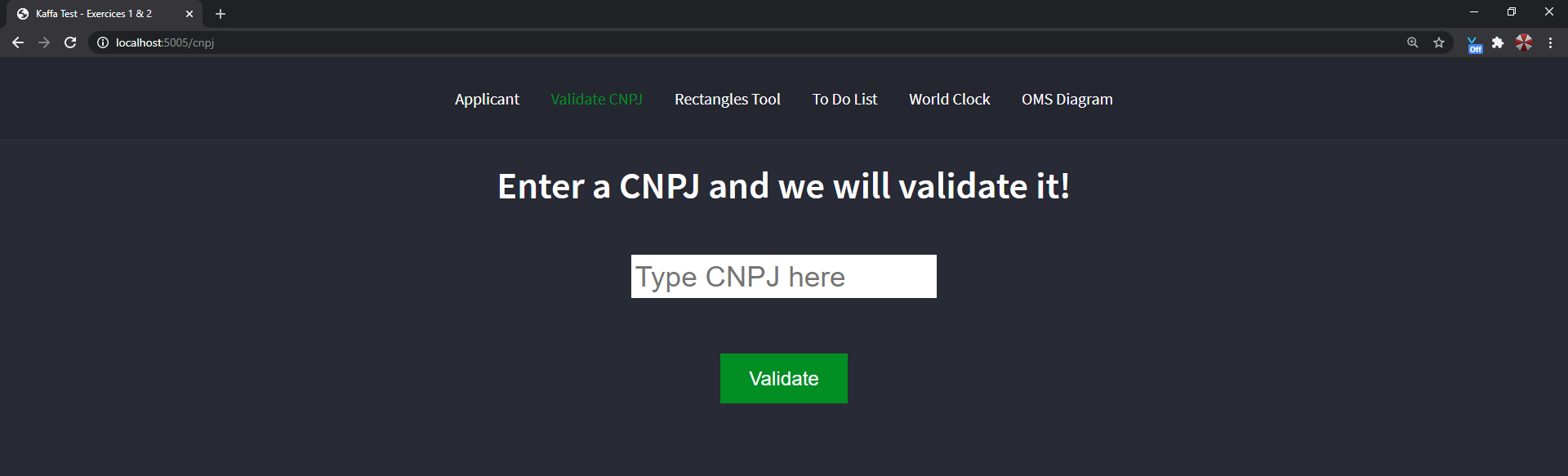

• To access the solution, click on the tab Validate CNPJ on the upper menu:

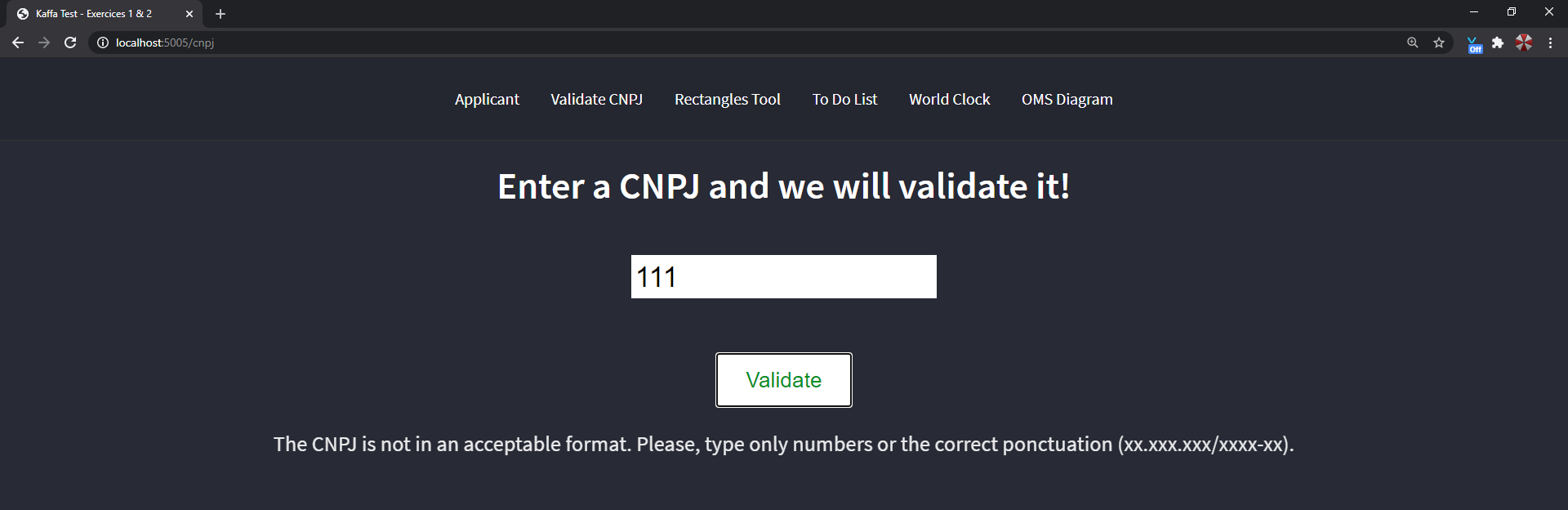

• If you enter with a wrong format CNPJ (less or more characters or wrong ponctuation), you will get this result:

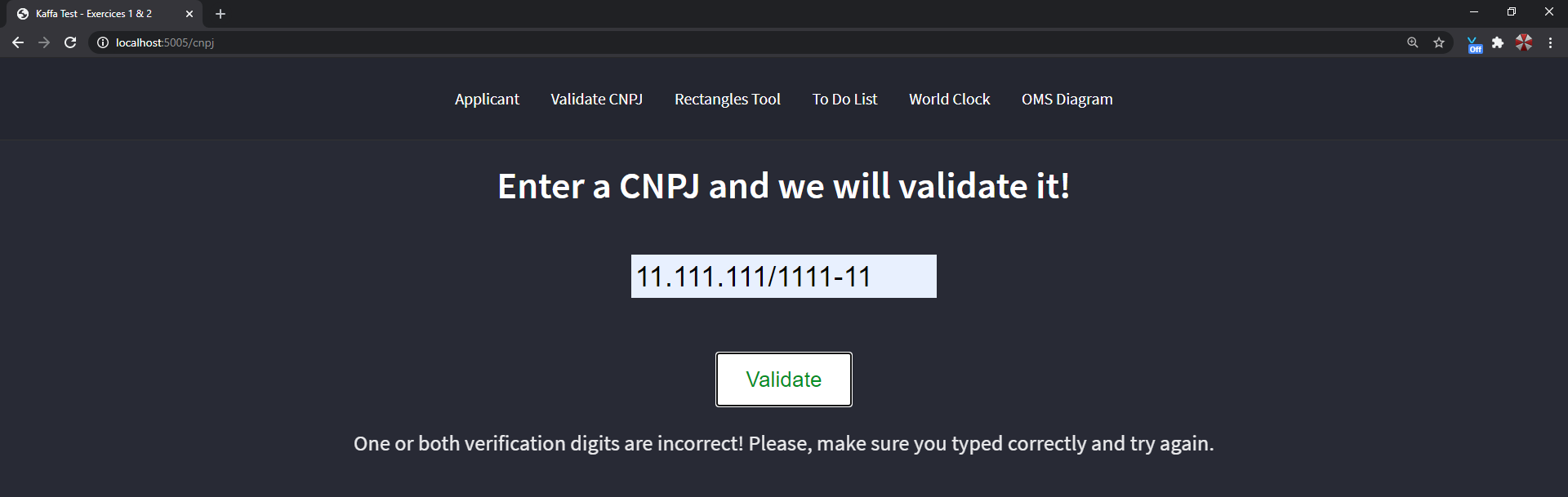

• If you enter a CNPJ with the right format, but one or both verification digits are wrong, you will get this result:

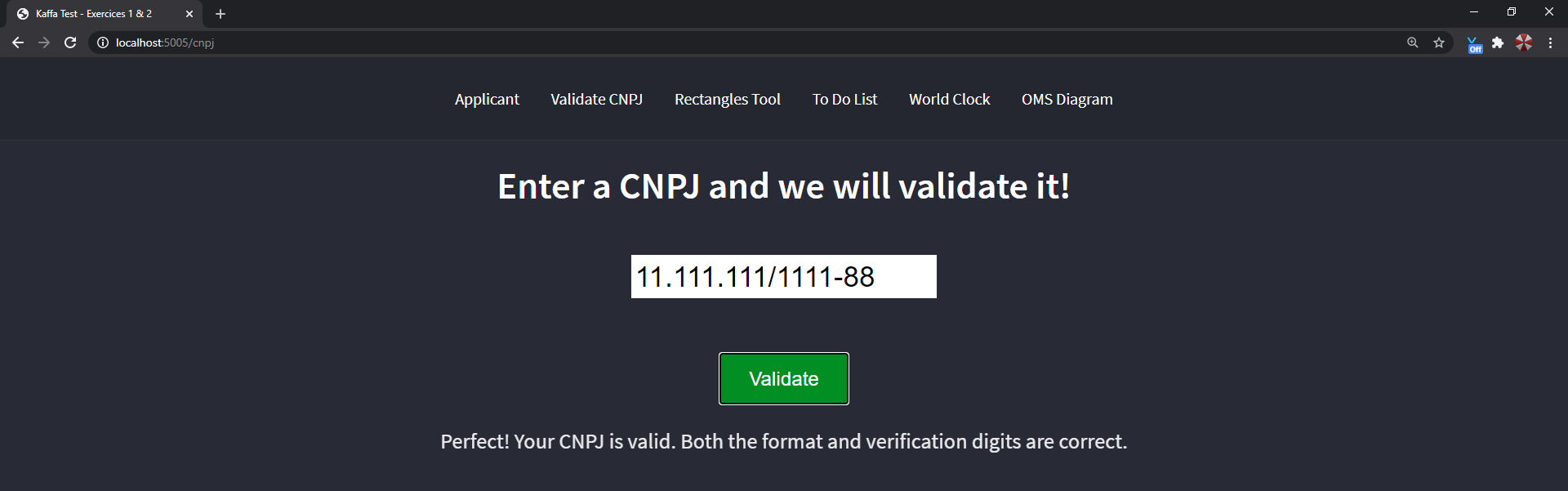

• Finally, if you enter a CNPJ in the right format and with valid verification digits, you will get this response:

• I simply used and IF with the condition of two regular expressions (OR between them) to verify if the user inputed a valid format string. The first REGEX verifies if it has 18 characters and if the ponctuation is correct, the second verifies the case of only numbers, which should be exactly 12 digits.

if (inputCNPJ.value.match(/(^\d{2}\.\d{3}\.\d{3}\/\d{4}\-\d{2}$)|(^\d{14}$)/)) {
...
}

• To validate the verification digits, I implemented the logic explained in this website, which consists of a series of math operations to result in each verification number. Then I only had to compare the result with what the user inputed and verify if they are correct or not. You can check the full code on the file script-cnpj.js.

Exercices 3 & 4 - Verify if rectangles intersect and calculate the intersection area

• These exercieces consists of:

  • Considering rectangles in a discrete grid (like pixels in a display), each defined by two points, return true if they intersect, false otherwise.

  • Compute the areas of intersection.

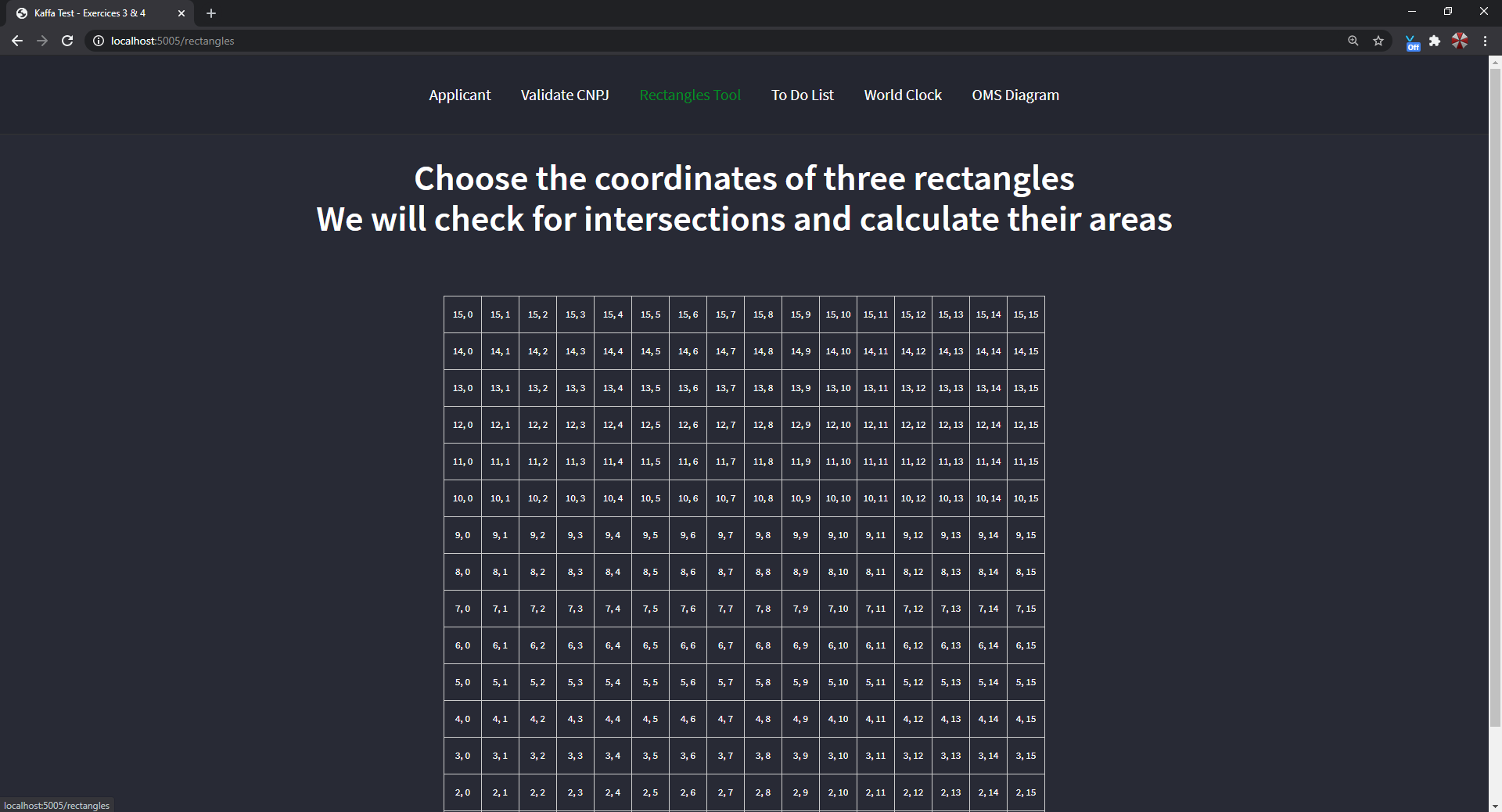

• To access the solution, click on the tab Rectangles Tool on the upper menu:

• Now you have to click on a total of 6 cells of the grid, to draw 3 rectangles. The first 2 clicks will define the red rectangle, the following two clicks will define the green one and finally the last two clicks will define the blue rectangle.

• As soon as you click on the last cell, the results will be computed and shown to you right above the grid. You can have intersection between any two rectangles or even between the three of them. You can repeat the process by clicking on the "Rectangles Tool" tab or reloading the page.

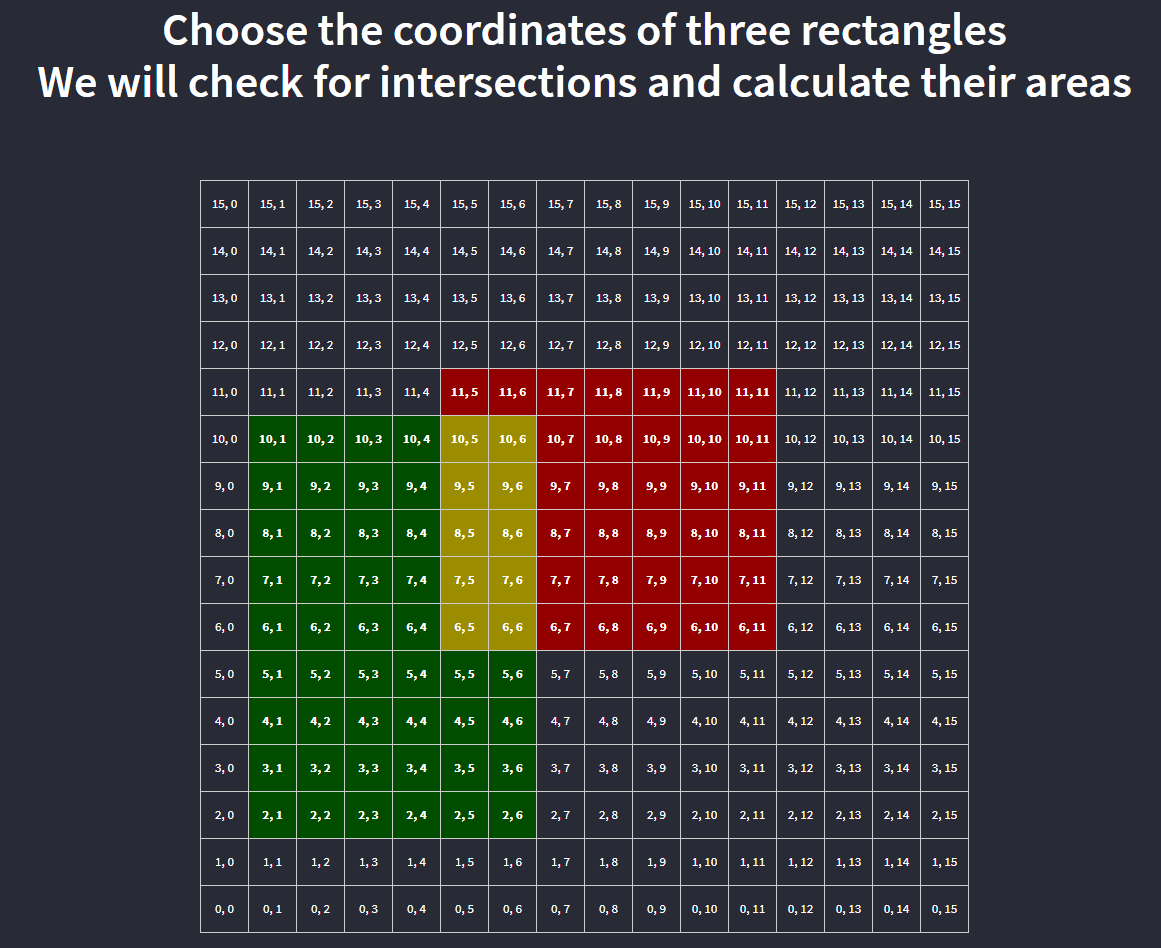

• Note that intersections between the rectangles red and green will be colored yellow, intersections between the rectangles red and blue will be colored purple, intersections between the rectangles green and blue will be colored cyan and intersections between the three rectangles will be colored white.

• Take a look on the file script-rectangles.js. My solution was to create the grid as a table, row by row, column by column, with the function clickableGrid(). This function creates the tr and td HTML elements and also assigns a value, and ID and an eventListener to each cell.

• When you click a cell, you call the function selectCell(), which will only be executed 6 times. This function makes use of a Switch structure to color the cells that are clicked, and define the rectangles, by adding classes to the element. So, each cell can have none, one of each, or any combination of the classes red, green and blue.

• Finally, after the last click, the entire grid will be verified for how many cells it has with each combination of classes. This way I can know if there is an intersecion between rectangles and even count how many cell are in this intersection. For example, if I have 10 cells with both classes red and blue, I know that the rectangles red and blue are intesecting and this intersection has an area of 10 units.

Exercice 5 - Simple To Do List

• This exerciece consists of:

  • Todo list application that permits the creation and deletion of tasks (texts).

  • The application must persist the tasks between executions.

  • Use any storage you want: database, files, PaaS backends (Firebase, etc.).

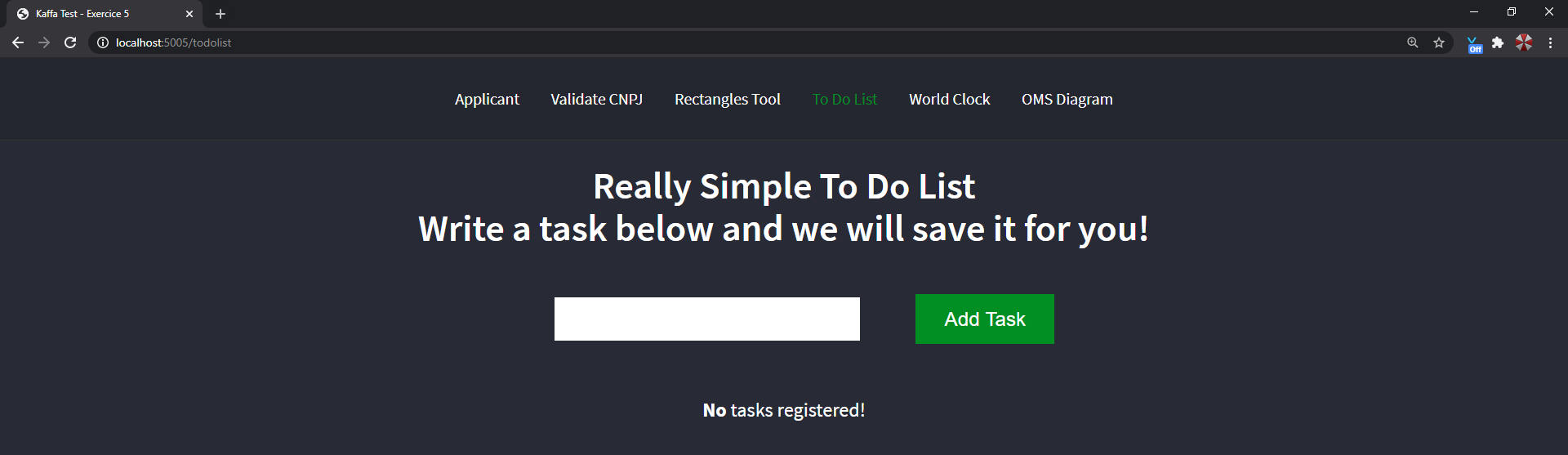

• To access the solution, click on the tab To Do List on the upper menu:

• Now, type a text on the field and click on Add task. The task will be saved below and you can add more tasks to make a list. You can also delete tasks by simply clicking on the x icon besides each task.

• I used SQLite to make the database and the Express framework to handle the requests.

• Inside the database folder you will find db.js, the file that creates the database and the table, and data-base.db, the database itself.

• In the file server.js you can find the routes to save a new task on the database, to delete a task and to show the page containing all the tasks registered.

Exercice 6 & 7 - Rest Client and Server for a world clock

• These exercieces consists of:

  • Build an application that queries a server and displays the current date/time hour in local and UTC timezones.

  • Server URL: http://worldclockapi.com/api/json/utc/now

  • REST server returning a JSON like:

  {
      "currentDateTime":"2019­08­12T14:40Z"
  }

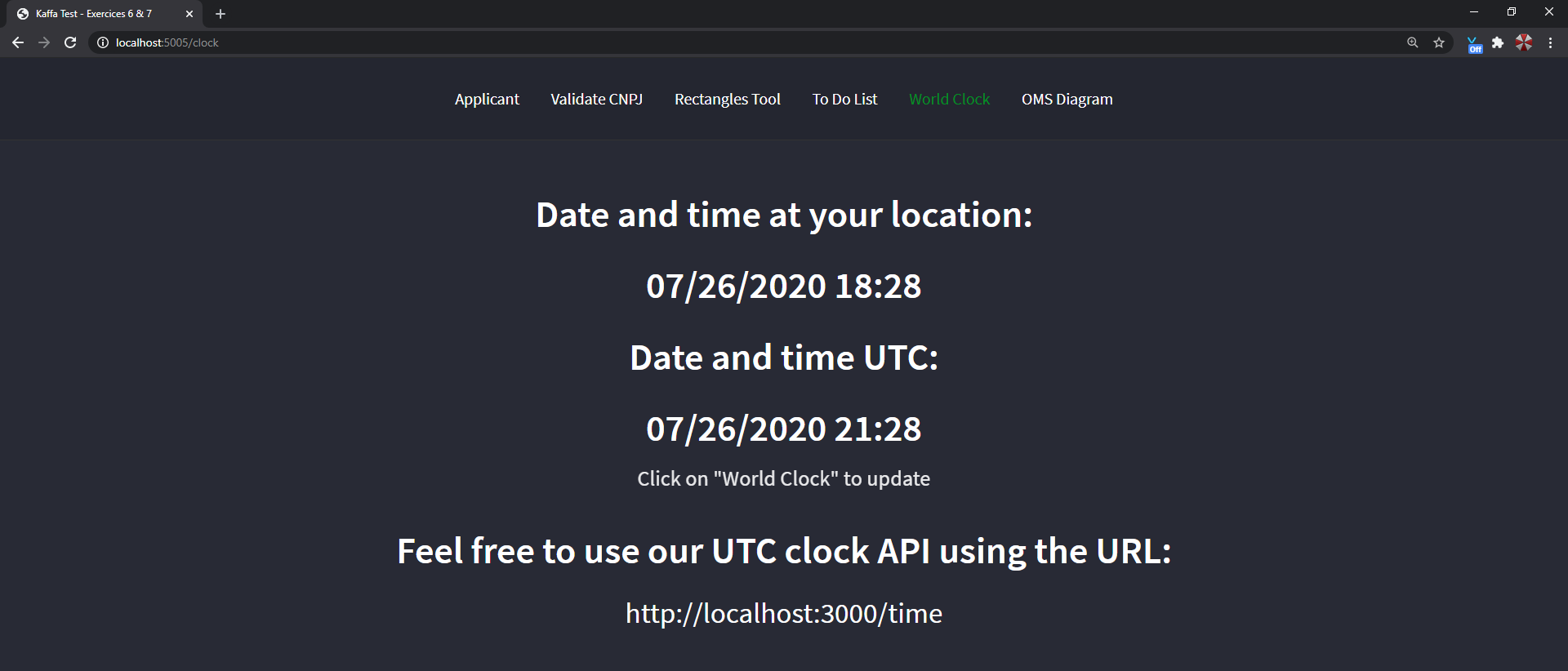

• To access the solution, click on the tab World Clock on the upper menu:

• I made use of Axios to make the request to the World Clock API, which is a promise based HTTP client for the browser and NodeJS. Take a look at the file server.js.

server.get('/clock', function (req, res) {

    // Using Axios to get the data from the API
    axios.get('http://worldclockapi.com/api/json/utc/now').then((response) => {

        let time = response.data
        return res.render('clock', { time })

    })
})

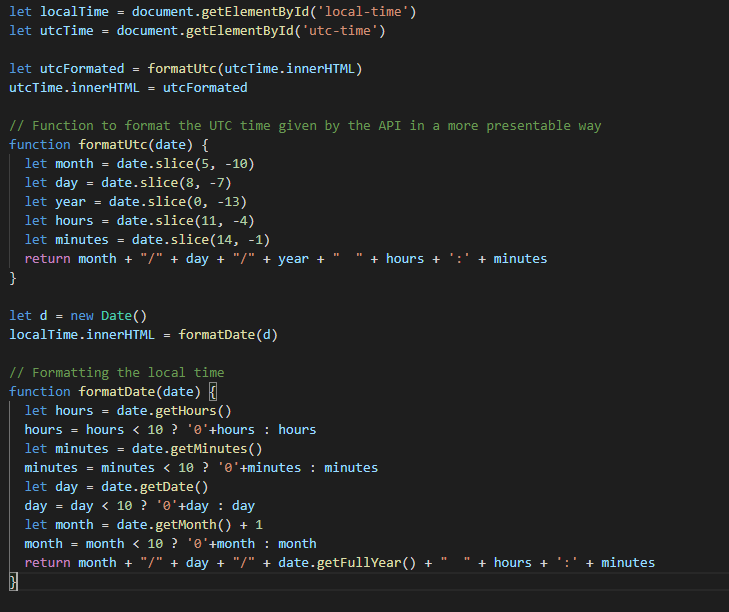

• Also take a look in the file script-clock.js. I get the current UTC date and time on the HTML page, and format in a more presentable way with JavaScript. The local time comes simply by a Date() function, also manipulated to be in the same format as the UTC time and date.

• To make the server I used the JSON Server. Take a look at the bottom of the server.js file and you will see the implementation of the function that updates the db.json file, which contains the UTC time. I used fs API (file system) to write the current time in the db.json file.

const fs = require('fs')
const fileName = './db.json'
const file = require(fileName)

axios.get('http://worldclockapi.com/api/json/utc/now').then((response) => {

    let t = response.data.currentDateTime

    file.time.currentDateTime = `${t}`

    fs.writeFile(fileName, JSON.stringify(file, null, 2), function writeJSON(err) {
        if (err) return console.log(err)
    })
})

• Also, take a look at the package.json file and you will see that I am running two scripts in parallel (using npm-run-all). This way, executing npm start will run the server on port 5005 and the clock JSON server on port 3000.

• You can click on the link to access the API, with the current UTC time.

Exercice 8 - Entity Relationship Diagram for a Order Manager System

• These exercieces consists of:

  • Design the model of a simple Order Manager System.

  • The system consists of: Clients, Products, Orders.

  • You can draw, describe, or list the tables as SQL.

  • SQL: list ORDERS with number of items.

  • Which indexes should be created in this model?

  • This exercise is documentation only and there’s no executable to run in this case.

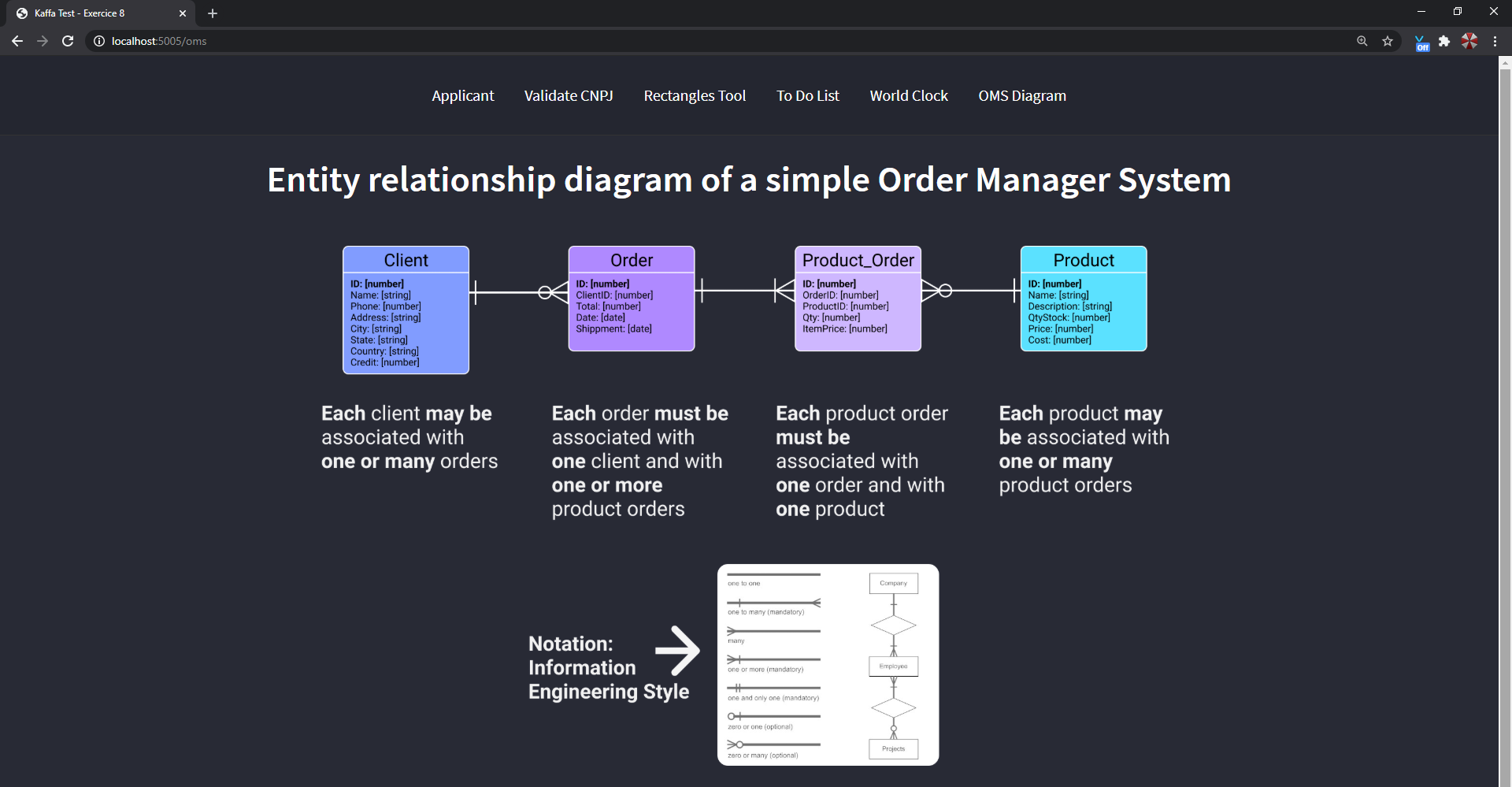

• To access the solution, click on the tab OMS Diagram on the upper menu:

• This exercice is pretty much self explanatory. I chose the engineering notation to make the diagram and I imagined 4 tables, Client, Order, Product_Order and Product. I had the necessity to add the Product_Order table mainly to add the information of how many of each product is in the order. So lets say, If I place an order of 1 apple, 2 banannas and 3 oranges, I have only one Order table, but associated with three Product_Order tables, one for each product.

Test

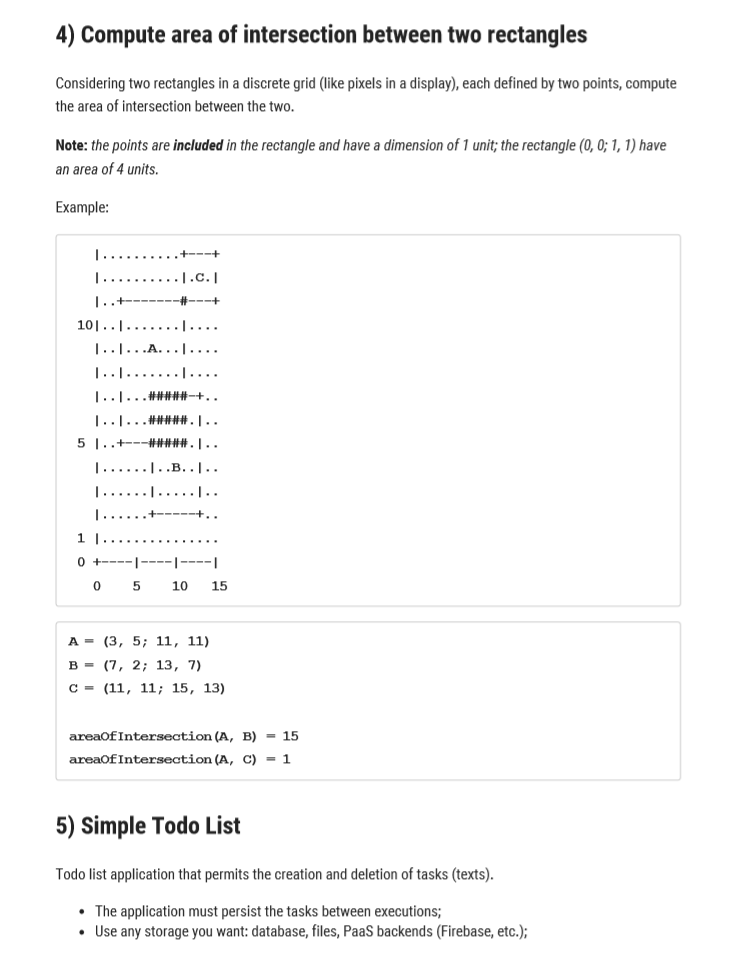

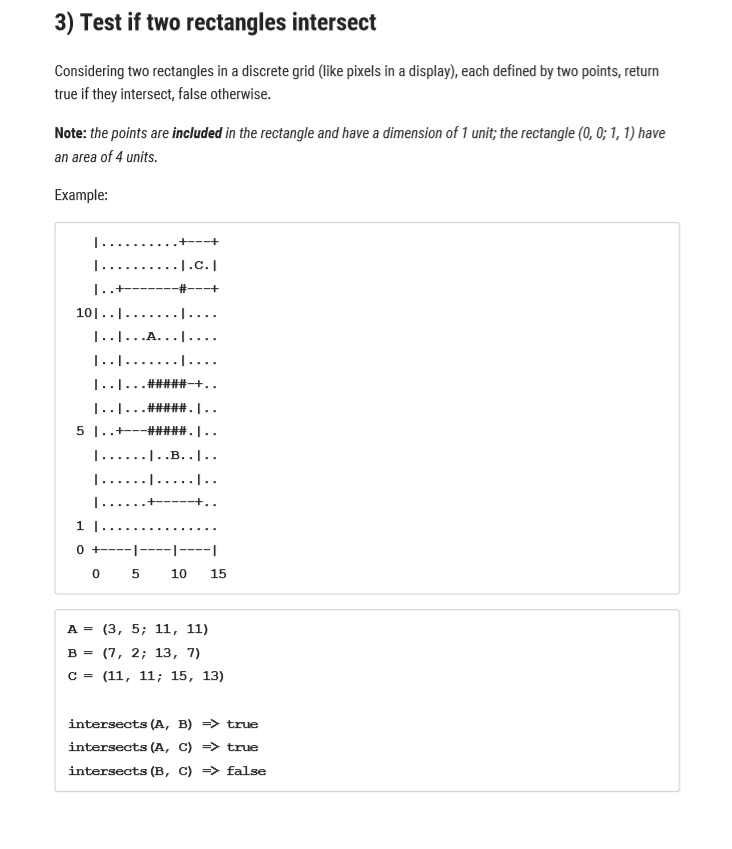

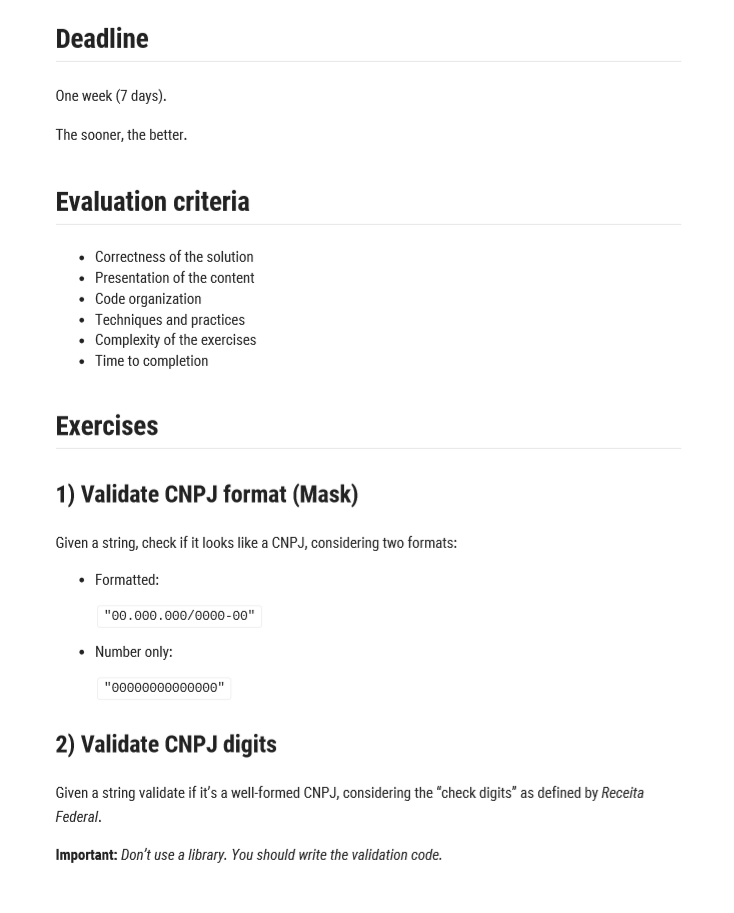

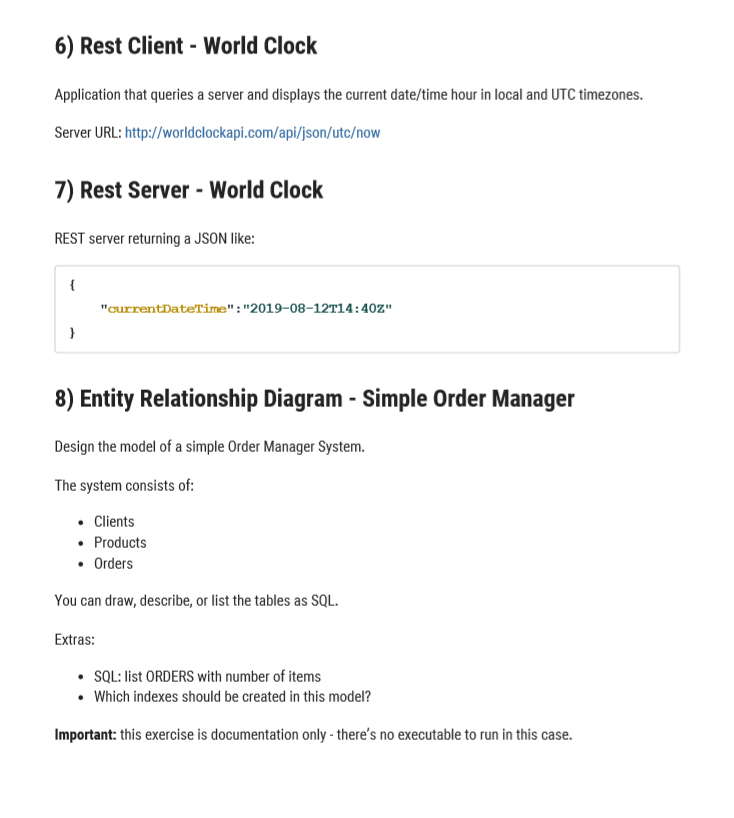

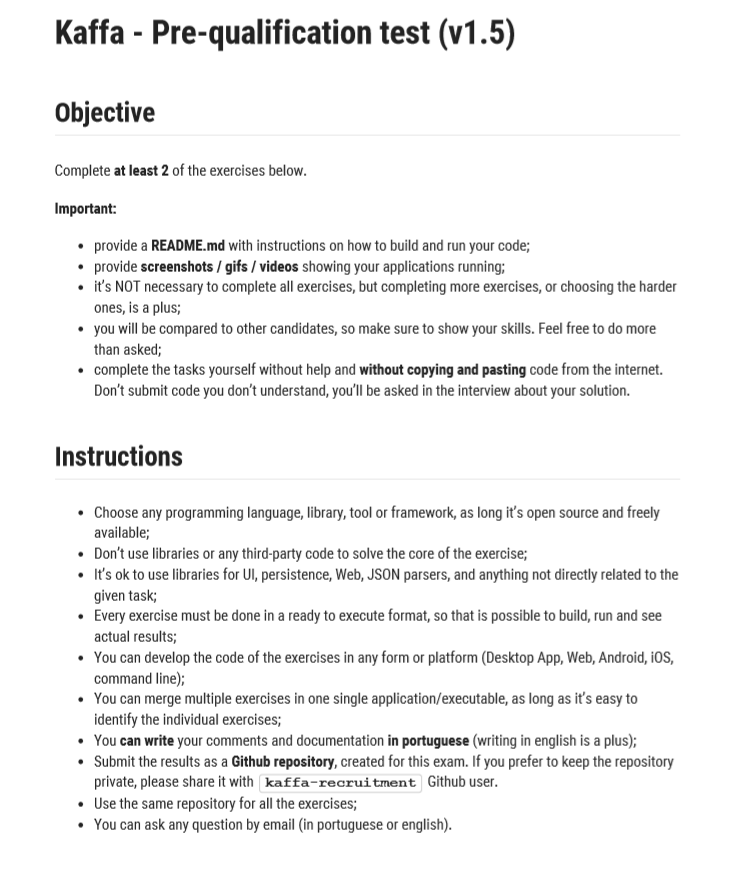

This is the full test I received from Kaffa Mobile:

---

License

• MIT license
