About

This is an implementation of the Hough Transform algorithm for detecting lines in a greyscale image. The algorithm is implemented in Rust.

Unlike most examples I found on the web this implementation not only dumps a visualization of the accumulator (the so called "Hough Space") but also shows the detected lines, transformed back from the polar system to the original image.

Installation

This project requires a working Rust compiler. The easiest way to get Rust installed is probably using Rustup.

$ git clone https://github.com/maxbeutel/rust-hough-transform.git
$ cd rust-hough-transform
$ cargo build --release

Usage

$ hough-transform <input-image> <output-houghspace> <output-lines> <theta-axis-scale-factor> <rho-axis-scale-factor> <accumulator-threshold>

Arguments

• <input-image> - Path to the image which will be searched for lines. The algorithm assumes a greyscale image, black lines are considered edges.
• <output-houghspace> - Output path for a visualization of the Hough Space. Useful for debugging.
• <output-lines> - Output path for a visualization of the detected lines.
• <theta-axis-scale-factor> - Theta axis, scale factor, can improve accuracy, should be integer >= 1. See examples.
• <rho-axis-scale-factor> - Rho axis scale factor, should be integer >= 1. See examples.

Examples

Detecting square

$ target/release/hough-transform data/sample-square.png houghspace.png visualization.png 1 8 20

# max accumulator value: 20
# detected lines: 4

Detecting square, 45 degree rotation

$ target/release/hough-transform data/sample-square-rotated45.png houghspace.png visualization.png 1 8 14

# max accumulator value: 14
# detected lines: 4

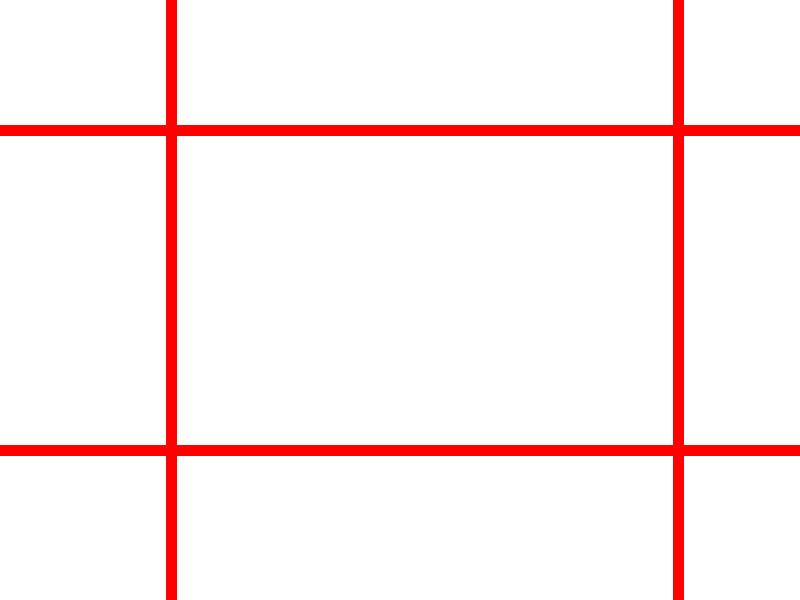

Rectangle

$ target/release/hough-transform data/sample-rectangle.png houghspace.png visualization.png 1 8 300

# max accumulator value: 518
# detected lines: 44

Pentagon

$ target/release/hough-transform data/sample-pentagon.png houghspace.png visualization.png 16 16 15

# max accumulator value: 27
# detected lines: 105

(Image from rosettacode.org)

Possible improvements

• The edge detection is very unsophisticated, as can be observed in the "Rectangle" example, also detection of lines in the "Pentagon" example would benefit from a more accurate edge detection algorithm. The current edge detection only checks of the pixel has an RGB value of 0/0/0 (black).
• Pre-compute lookup tables for sinus/cosinus for all angles to increase performance and reduce costly floating point arithmetic.
• More test cases could be added, currently some methods take an Image as argument, which makes them hard to test.
• The style of this project could be a lot more functional.
• Add travis build to stay up to date with new Rust versions and updated libraries.
• The threshold for filtering the Hough Space could be defined automatically, like 70% of the maximum value in the accumulator. Filtering can also be improved, e. g. by finding local maxima.
