USB Vault

Local-first encrypted password vault secured by a physical USB identity key.

USB Vault stores all secrets locally and encrypts them using:

• AES-256-GCM
• scrypt key derivation
• A user PIN/password
• A physical USB keyfile (identity.key)

No cloud. No accounts. No tracking.
Your USB stick is your identity.

---

🚀 Features

• 🔐 USB-based identity authentication
• 🔑 PIN + hardware key encryption
• 💾 Fully local encrypted vault file

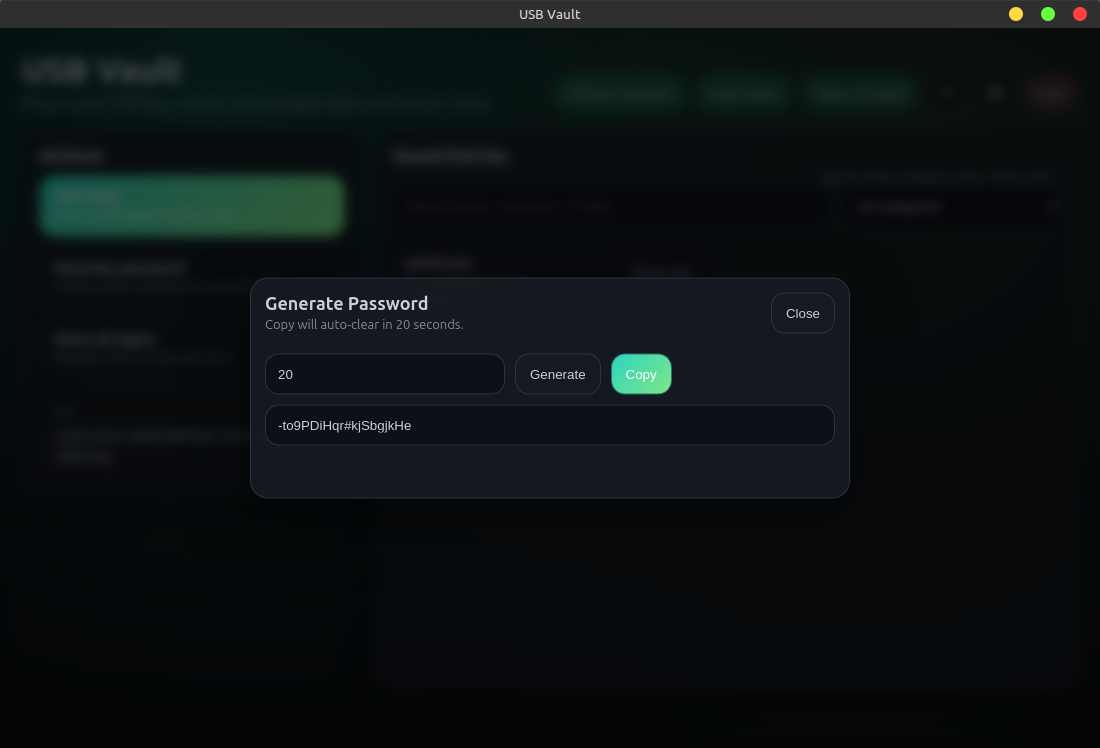

• 🎲 Built-in password generator
• 📋 Clipboard auto-clear
• ⏱ Idle auto-lock
• 🔌 Auto-lock on USB removal
• 🎨 Multiple UI themes
  Dark • Light • Blue • Green • Purple
• 🐧 Linux installer (.deb)
• 📦 Portable AppImage build

---

🧠 How It Works

1. You create a USB keyfile (identity.key)
2. USB Vault derives an encryption key from:
   • Your PIN
   • The USB keyfile
3. Vault data is encrypted locally and stored on disk
4. The vault can only be opened with BOTH:
   • The USB keyfile
   • The correct PIN

Practical Meaning

• Steal the computer → vault remains encrypted
• Steal the USB → vault remains encrypted
• Both required → plus PIN

---

🛠 First-Time Setup

Step 1 — Create a USB Keyfile

Insert a USB drive, open USB Vault, and click:

Create USB Key

This writes identity.key to the root of the USB drive.

Advanced/manual option:

head -c 64 /dev/urandom > /media/YOURNAME/YOURUSB/identity.key

⚠ Do NOT lose this file.
It is permanently required to unlock the vault.

---

Step 2 — Install USB Vault

🐧 Ubuntu / Linux Mint / Debian

Download the .deb from Releases:

sudo apt install ./usb-vault_VERSION_amd64.deb

Launch from the application menu or:

usb-vault

---

📦 Portable Version (AppImage)

chmod +x USB\ Vault.AppImage
./USB\ Vault.AppImage

If you see:

Cannot mount AppImage, please check your FUSE setup

Install:

sudo apt install libfuse2

---

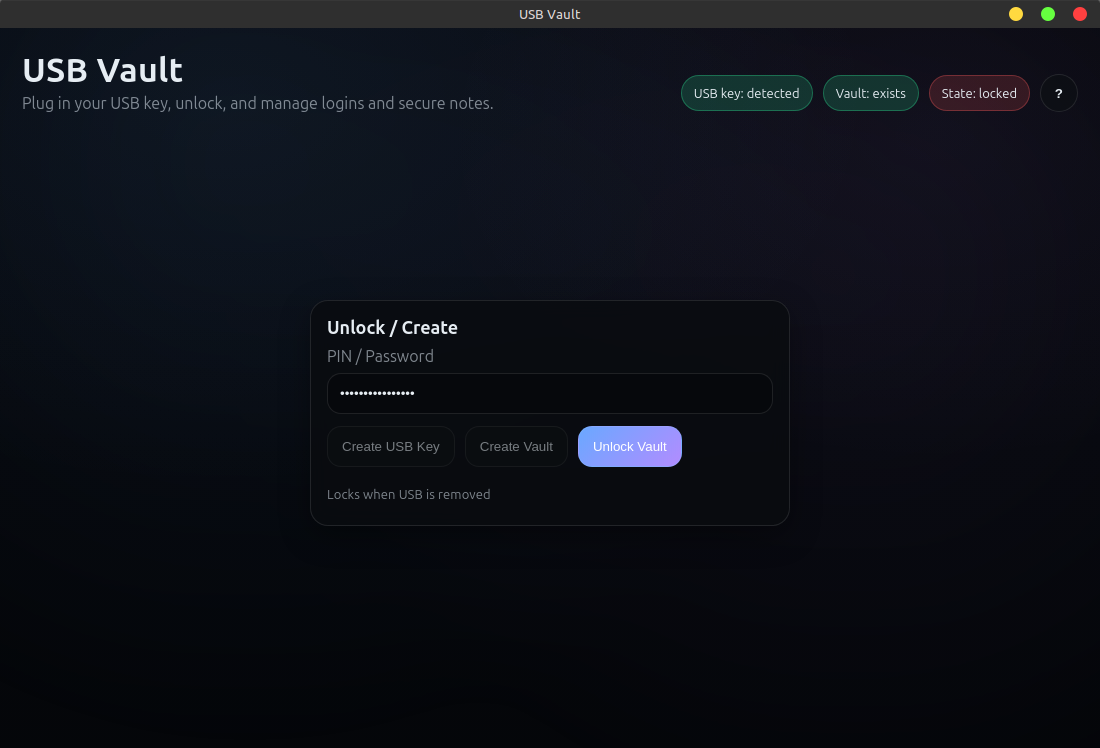

🔐 Creating Your Vault

1. Insert USB containing identity.key
2. Open USB Vault
3. Enter a PIN
4. Click Create Vault
5. Unlock using PIN + USB

Vault file location:

~/.config/usb-vault/vault.enc

---

🔒 Security Model

USB Vault uses:

• AES-256-GCM authenticated encryption
• scrypt key derivation
• Unique random salt per vault
• Tamper detection via GCM authentication tag
• Memory-only decrypted vault while unlocked
• Auto-lock on USB removal
• Clipboard auto-clear

All encryption is performed locally.

No data leaves your machine.

---

⚠ Threat Model

USB Vault protects against:

• Stolen laptop
• Lost USB device
• Offline disk inspection
• Cold storage data extraction

USB Vault does NOT protect against:

• Malware running on your system
• Keyloggers capturing your PIN
• A compromised operating system
• Physical coercion

For maximum security, use USB Vault on a trusted, clean system.

---

🧰 Building From Source

Requirements

• Node.js 20 LTS
• npm
• Electron

Development

nvm use
npm ci
npm start

Build Installers

For Debian/Ubuntu

sudo apt update
sudo apt install libfuse2
npm install
npm run dist
chmod +x build/linux/afterInstall.sh
sudo dpkg -i dist/*.deb
Then look for USB-Vault under applications

Artifacts:

dist/
  usb-vault_x.x.x_amd64.deb
  USB Vault-x.x.x.AppImage

---

🐧 Linux Packaging Notes

The Linux installer automatically configures:

• System launcher
• Application icon
• Runtime wrapper (ensures Electron launches correctly on systems with sandbox/dev-shm restrictions)

No manual configuration required after install.

---

📁 Project Structure

main.js           Electron main process
preload.js        Secure IPC bridge
renderer/         UI modules
src/usb.js        USB detection + key creation
src/vault.js      Encryption logic
build/            Packaging scripts

---

💾 Backup Requirements

You MUST back up:

1. Your USB keyfile (identity.key)
2. Your PIN
3. Your vault file (vault.enc)

If you lose the USB keyfile: the vault is permanently unrecoverable.

There is no backdoor.

---

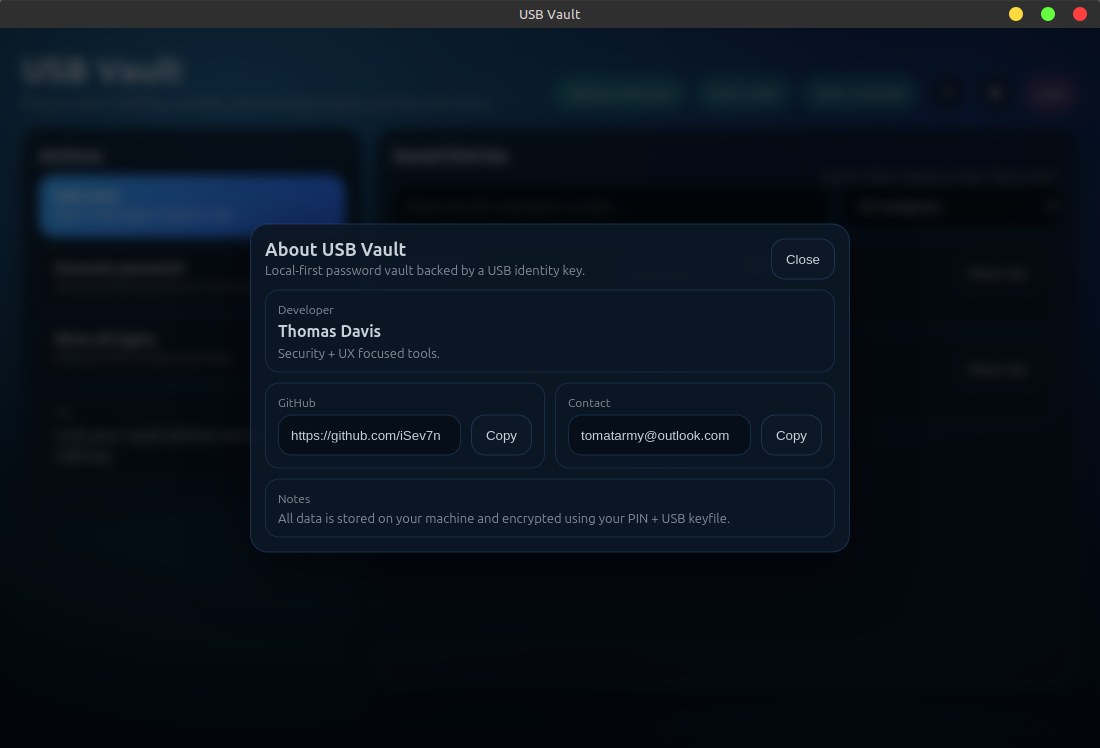

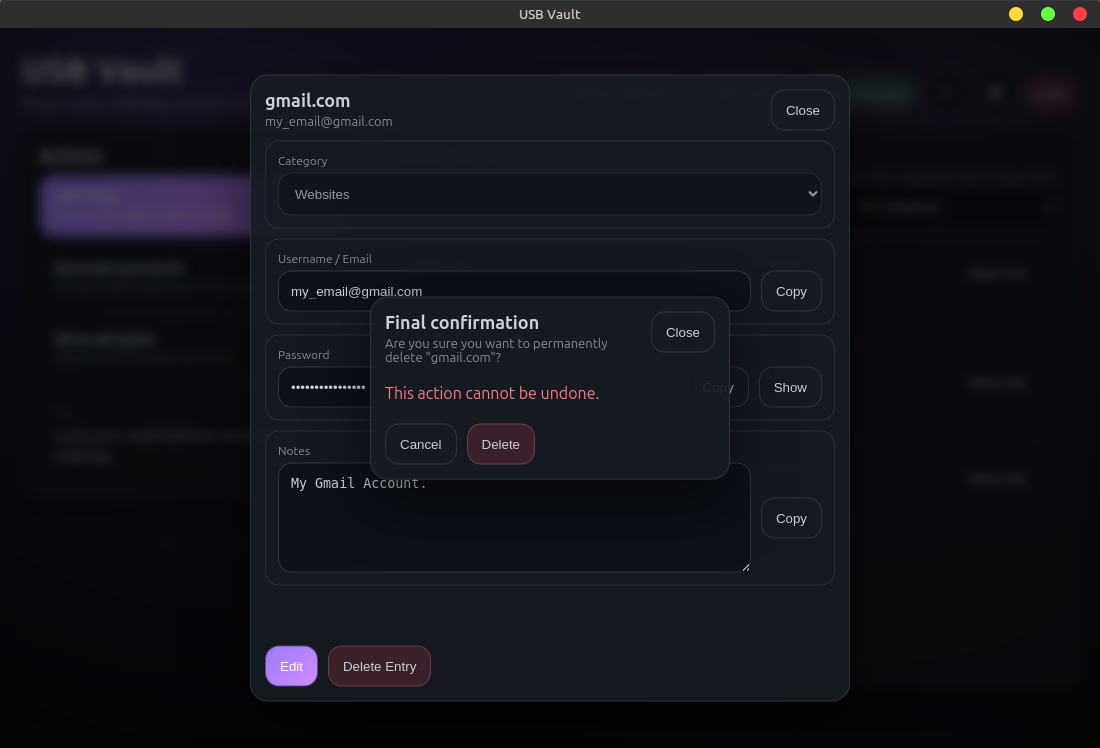

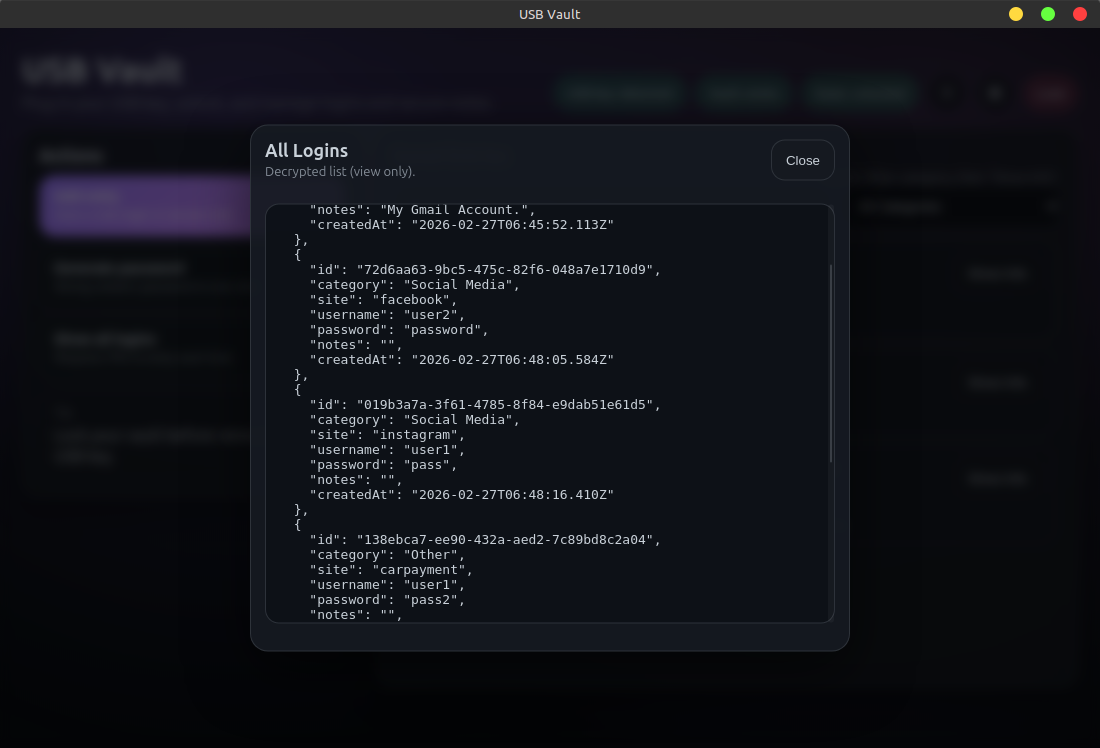

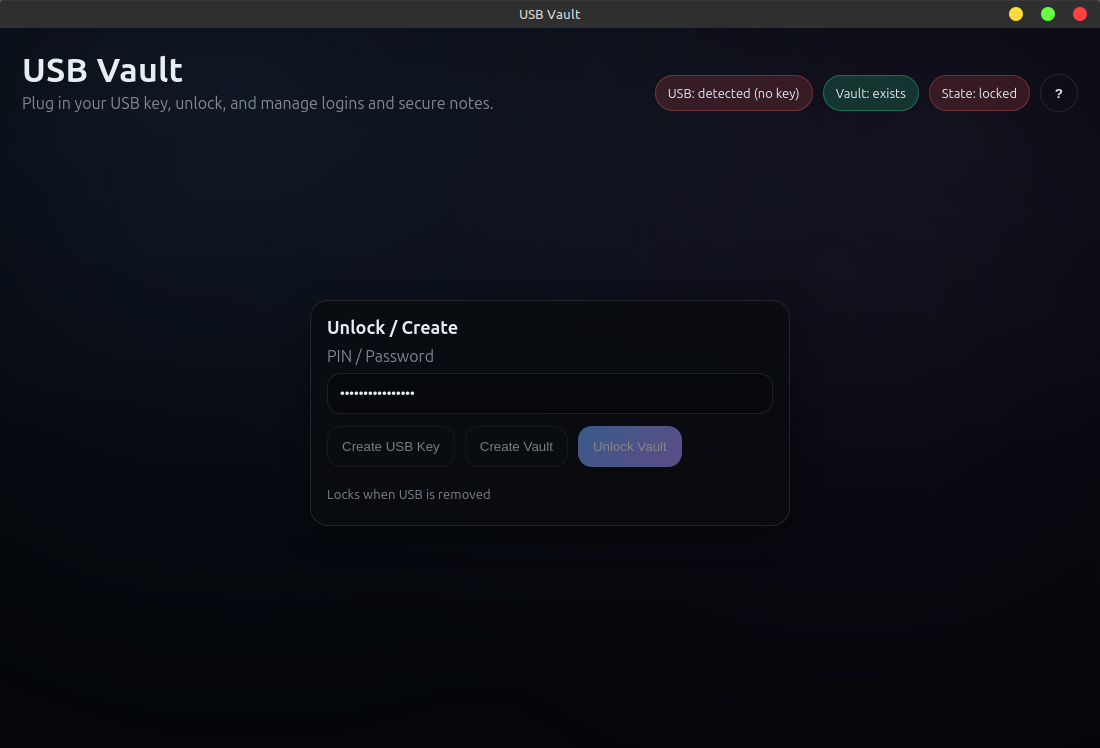

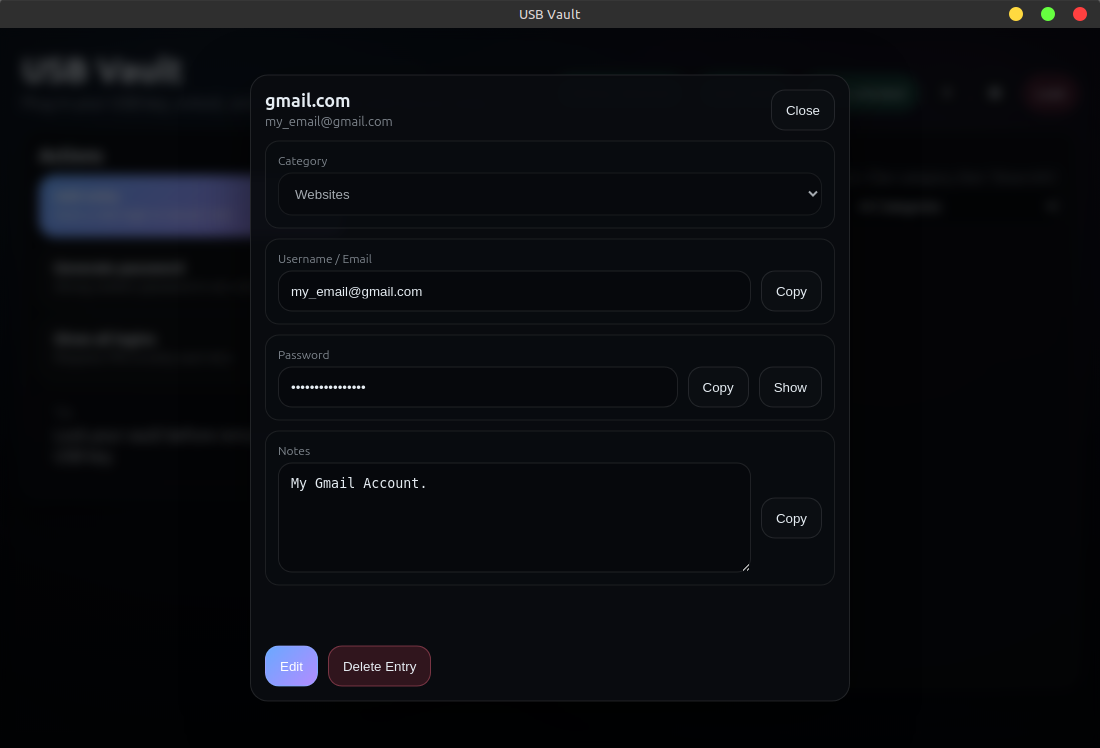

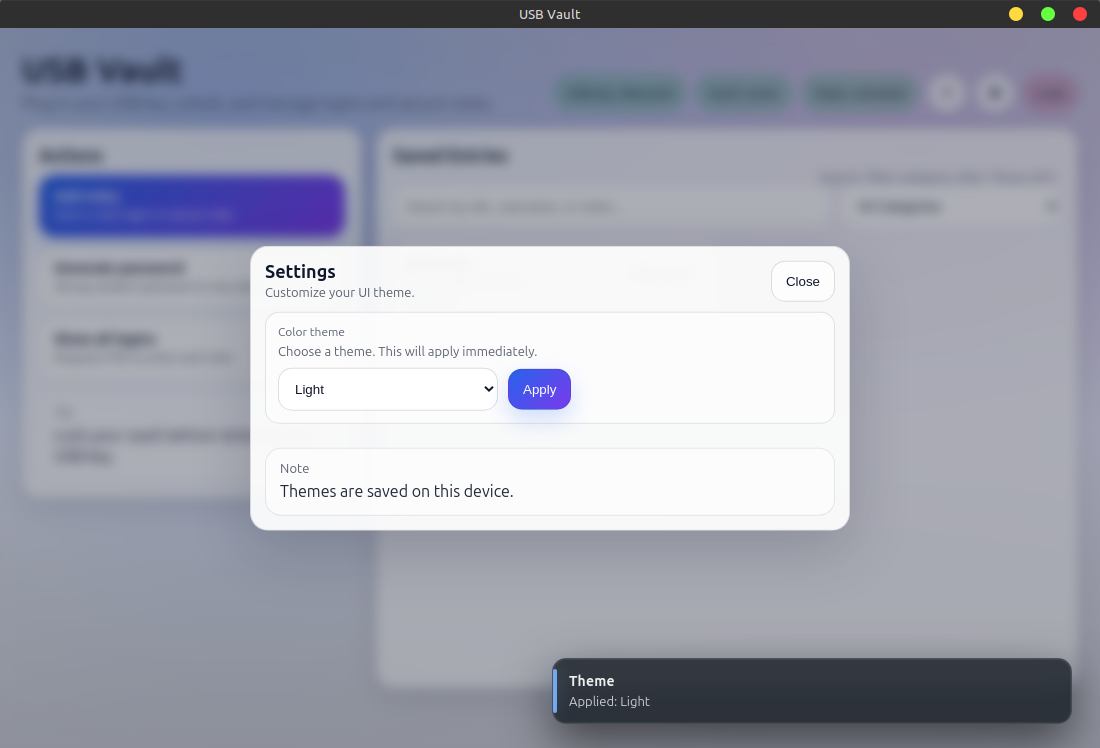

📸 Screenshots

---

🏁 Roadmap

• Windows installer
• macOS notarized build
• Optional encrypted export / backup
• Multi-vault profiles
• Hardware token support (YubiKey / FIDO2)
• Optional secondary USB factor

---

🔐 Reproducible Builds

USB Vault uses a pinned Node version via .nvmrc.

Clean Build

nvm install
nvm use

npm ci
npm run lint
npm run format
npm run dist
npm run checksums

Checksums are written to:

dist/SHA256SUMS.txt

.nvmrc:

20

Reproducible here means:

• Locked dependencies (package-lock.json)
• Same Node major version
• Same build steps

---

🤝 Contributing

Pull requests welcome.
Security issues should be reported responsibly.

See: SECURITY.md

---

📜 License

MIT License
© Thomas Davis
