fix(docx): render floating picture rotation

[developer0hye]

Summary

• Preserve floating DOCX picture rotation parsed from a:xfrm/@rot in the image IR.
• Rotate floating pictures around their original drawing-box centre, including pictures that cross a page edge.
• Add a parser-to-Typst regression test and fresh 150 DPI before/after evidence for the Place your event title here.docx #1219 fixture.
• Consume the compatible docx-rs parser fix merged in fix: preserve parsed picture rotation docx-rs#4; the equivalent upstream change is Preserve picture rotation while reading DOCX bokuweb/docx-rs#920.

Related issue

Related: #1366

Testing

• cargo test -p office2pdf --lib parser::docx::tests::image_tests::docx_floating_picture_rotation_reaches_ir_and_typst -- --exact --nocapture
• cargo fmt --all -- --check
• cargo check --workspace
• cargo clippy --workspace --all-targets -- -D warnings
• OFFICE2PDF_VALIDATE_PDF=1 cargo test --workspace
• cargo check --target wasm32-unknown-unknown -p office2pdf
• cargo check --target wasm32-unknown-unknown -p office2pdf --features wasm
• cargo check --target wasm32-unknown-unknown -p office2pdf --features wasm-cjk-font
• wasm-pack build crates/office2pdf --target web --features wasm
• wasm-pack test --node --features wasm (10 passed)
• wasm-pack build crates/office2pdf --target web --features wasm-cjk-font
• wasm-pack test --node --features wasm-cjk-font (11 passed)
• python3 scripts/compare_render.py --page 1 --dpi 150 --artifacts-dir /tmp/office2pdf-issue-1366.HDrLbu/after-pivot-audit --audit /tmp/office2pdf-issue-1366.HDrLbu/gt.pdf /tmp/office2pdf-issue-1366.HDrLbu/after-pivot.pdf (expected nonzero; remaining clusters dispositioned below)
• python3 scripts/compare_layout.py --audit /tmp/office2pdf-issue-1366.HDrLbu/gt.pdf /tmp/office2pdf-issue-1366.HDrLbu/after-pivot.pdf (expected nonzero; every large text-instance shift dispositioned below)
• Local validate_evidence check from scripts/check_visual_pr.py
• Documentation freshness review: PASS

Visual impact

• No rendered PDF change
• Rendered PDF change or visual evidence added
• Reason:

Visual audit

• Issue: DOCX floating picture rotation is not rendered #1366
• Fixture: Issue Place your event title here.docx #1219 attachment Place your event title here.docx
• Page(s): 1 (page count and order also checked across pages 1-2)
• Renderer and DPI: pdftoppm and ImageMagick, 150 DPI
• Evidence mode: fix
• New follow-up issues found in this audit: None
• Model vision findings: Full-page, 5% pixel-diff, and full-resolution matched-photo crops show the event photo changing from axis-aligned to the reference's counterclockwise tilt while retaining its drawing-box centre. PDF transform inspection measures the output frame at 11.000 degrees and 343.808pt per edge versus 11.110 degrees and 343.850pt in the GT. The remaining full-page clusters are the previously tracked custom paths and dot fields (DOCX WPG custom geometry renders as bounding rectangles #1363), flat gradients (DOCX WPG gradient fills collapse to a solid color #1364), WPG child transforms and grouped-text shifts including GATES/ALL/AGES/subtitle/WELC (DOCX WPG child rotations and flips are ignored #1365), theme aliases and alpha (DOCX WPG tx/bg theme aliases and fill alpha are unresolved #1367), RSVP pagination (Place your event title here.docx moves RSVP text onto page 1 #1368), and the footer baseline (DOCX footer WPS text box sits 8pt too low #1370).

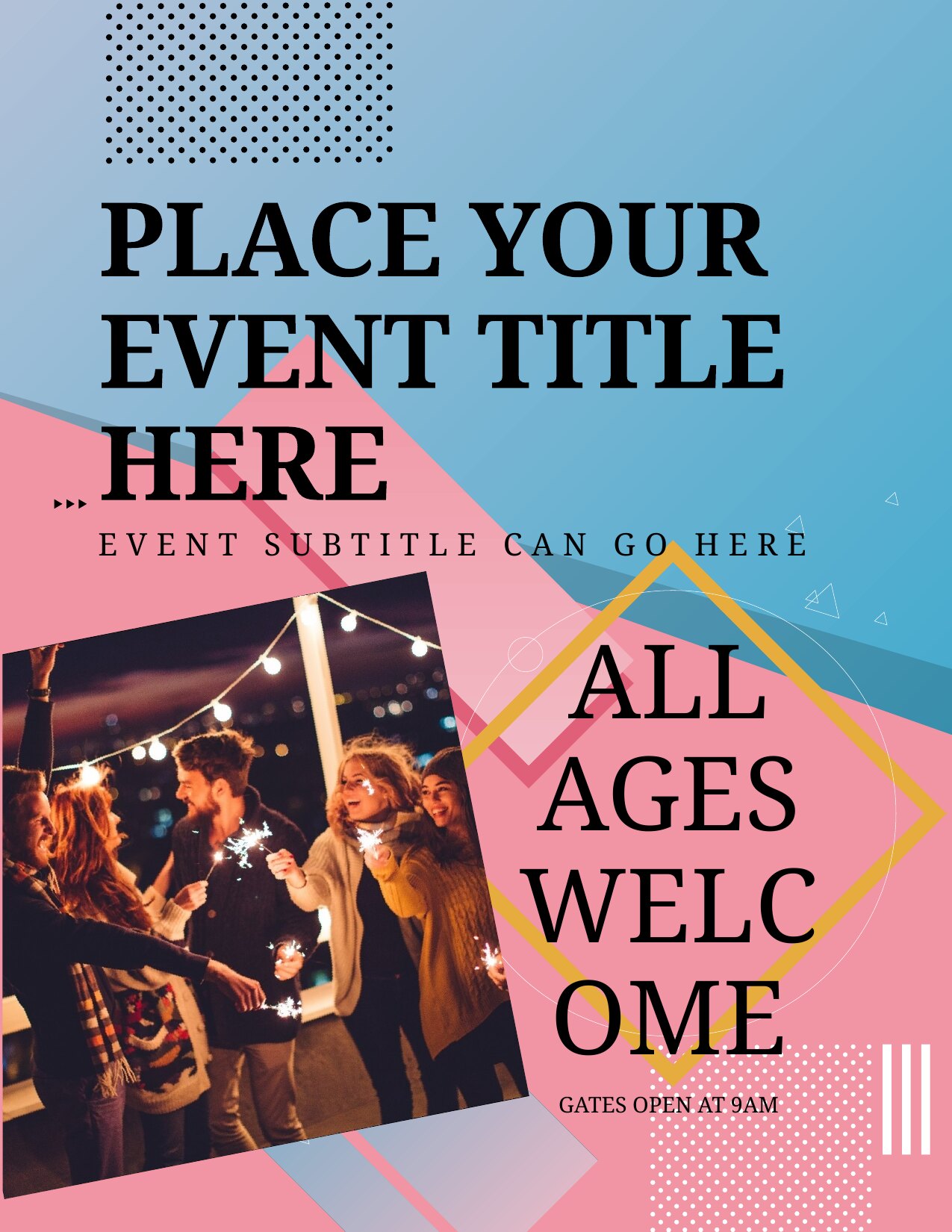

• GT: assets/bugfixes/issue-1366/gt.jpg

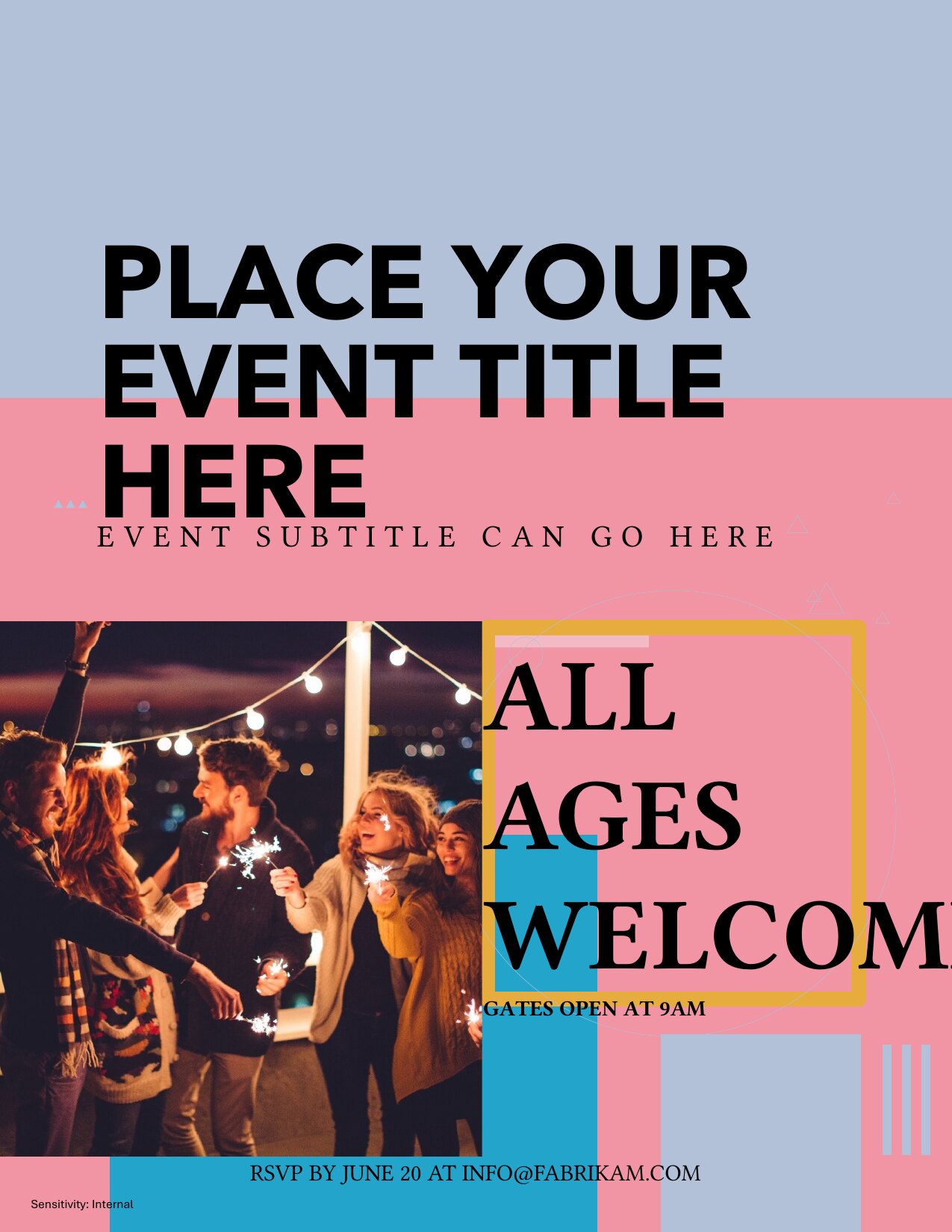

• Before: assets/bugfixes/issue-1366/before.jpg

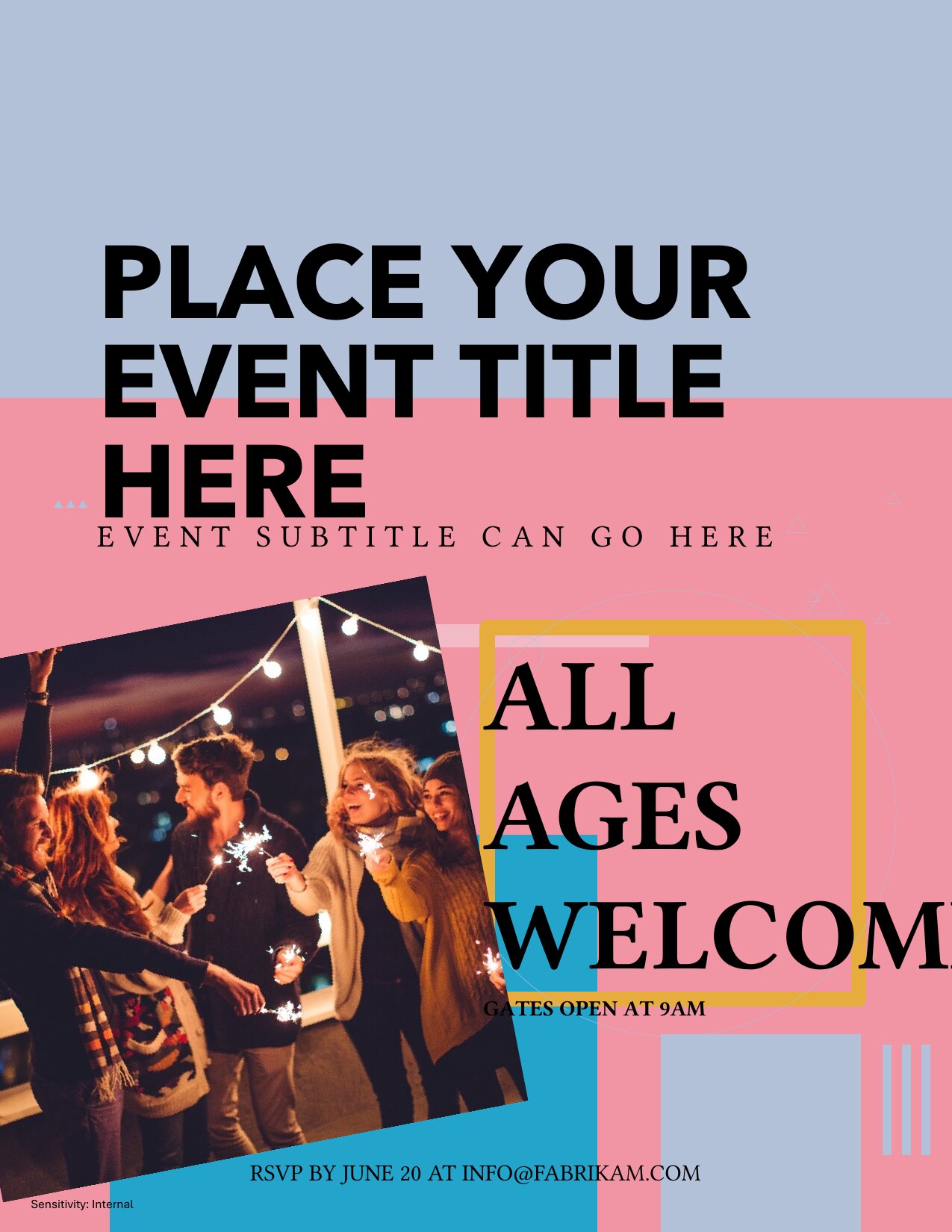

• After: assets/bugfixes/issue-1366/after.jpg

Visual comparison

GT	Before	After

At 150 DPI, the 5% fuzz absolute-error count decreased from 1,539,170 before the fix to 1,357,860 after it. The output retains the same two Letter pages as the GT.

Required inspection

• Rendered all evidence at 150 DPI or higher
• Stored progressive JPEG quality 86 assets with metadata stripped
• Used Codex/Claude vision to inspect the full GT/output pages, diff, and matched crops
• Inspected matched region crops at full resolution
• Ran compare_layout.py --audit and dispositioned every large text-instance shift
• Ran the 5% fuzz pixel-difference sweep
• Inventoried hairlines and border dash styles
• Inventoried font weight, italic, and underline emphasis

Deviation audit

Check	Result
Page count/order	Matches GT: two Letter pages in the same order
Element presence	Remaining: #1363 tracks custom paths and dot fields; #1368 tracks the RSVP line on the wrong page
Position/size	Remaining: #1365 tracks grouped WPG placement, #1368 the RSVP page placement, and #1370 the footer baseline; the photo keeps its pre-fix centre and matches the GT edge length within 0.05pt
Rotation/flip	Fixed: the photo now follows the GT angle and centre pivot; WPG child rotations/flips remain tracked in #1365
Fill	Remaining: #1364 tracks gradients and #1367 tracks theme aliases and alpha
Stroke/border	Remaining: #1363 and #1365 track custom and transformed outlines; the photo declares no border, and no new dash-style deviation was observed
Shape outline geometry	Remaining: #1363 tracks custom paths and #1365 tracks transformed preset outlines
Text content	Remaining: #1368 tracks the RSVP text on page 1 instead of page 2; the text itself survives
Font family/weight/style	Matches GT: heavy title, regular serif subtitle, and bold gate-line emphasis are preserved; host font substitution explains family raster differences
Text color	Remaining: #1367 tracks unresolved tx/bg aliases; no photo color transform changed
Alignment	Remaining: #1365 tracks grouped-text shifts, #1368 the RSVP shift, and #1370 the footer text-box shift
Line/paragraph spacing	No deviation observed: the reported pitch deltas come from independently positioned WPG text tracked in #1365
Clipping/overflow	No deviation observed: the rotated photo remains clipped to its drawing frame without new overflow; RSVP pagination remains tracked in #1368

The page-1 hairline inventory contains the thin white circle and small triangle outlines; they remain present, with their transform deviations tracked in #1365. The dot fields are filled custom geometry rather than dashed strokes and remain tracked in #1363. The photo region contains no hairline, border, bold, italic, or underlined element.

Checklist

• Commits include a Signed-off-by line
• PR scope contains one root cause
• Remaining visual deviations each reference an open issue
