Atto for n8n

Use Atto in n8n workflows. The package can derive wallet addresses, read network data, sign payments, receive funds, change representatives, and start workflows from live Atto events.

It includes two nodes:

• Atto runs wallet, account, receivable, transaction, account-entry, and representative operations.
• Atto Trigger listens to receivable, account, transaction, and account-entry streams.

Contents

• Installation
• Quick start
• Credentials
• Nodes
• Example workflows
• Security
• Compatibility
• Development
• How Commons is used
• Support

Installation

Self-hosted n8n

1. Open Settings > Community Nodes.
2. Select Install.
3. Enter @attocash/n8n-nodes-atto.
4. Confirm the community-node warning and install the package.

Restart n8n if the nodes do not appear in the node picker. The n8n community-node installation guide covers other self-hosted installation methods.

Quick start

1. Create an Atto API credential.
2. Set the Node Base URL for the Atto HTTP API.
3. Add an Atto or Atto Trigger node to a workflow.
4. Choose a resource and operation, then run the node.

Read operations and triggers use the Node Base URL. Sending, receiving, and changing representatives also require the Worker Base URL and wallet material.

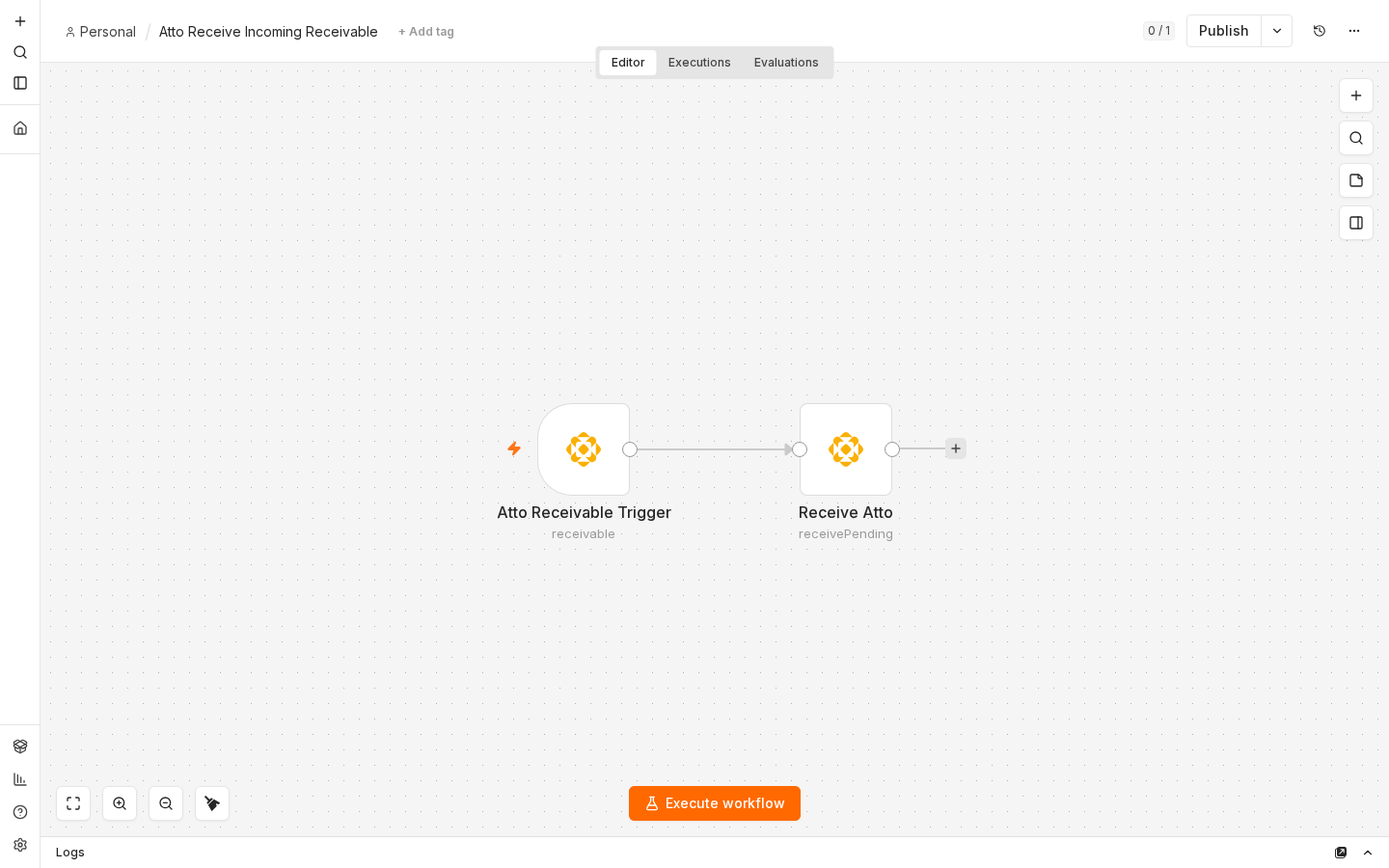

The example above starts when a receivable appears and passes it to Receivable > Receive. Import examples/incoming-to-receive.json to use the same layout.

Credentials

Create an Atto API credential in n8n.

Field	When it is needed
Node Base URL	Network reads, transaction publication, and triggers
Worker Base URL	Send, receive, and representative-change operations
API Key, Header, and Prefix	Optional authentication for Node and Worker requests
Wallet Secret Type and Wallet Secret	Signing and filters that derive an address from credentials
Key Index	Mnemonic-derived addresses; defaults to 0

The wallet secret can be a 24-word Atto mnemonic or a compatible hex private key. n8n encrypts credential values at rest.

The credential test sends GET / to the Node Base URL. It does not send the wallet secret or call the Worker Base URL.

Nodes

Atto

Resource	Operations	What it does
Address	Derive	Derives an address and public key from a mnemonic or private key
Account	Get	Reads balance, representative, height, and frontier
Receivable	Get, Receive	Lists pending receivables or publishes a receive transaction
Transaction	Get, Send	Reads transaction streams or publishes a send transaction
Account Entry	Get	Fetches entries by hash or reads a bounded entry stream
Representative	Change	Publishes a representative-change transaction

Send and receive wait up to 60 seconds for publication by default. Stream reads stop when they reach Max Items or Timeout.

Atto Trigger

Event	Filters
Receivable	Credential-derived address, manual addresses, and minimum amount
Account Update	Credential-derived address, manual addresses, or all accounts
Transaction	Hash, credential-derived address, manual addresses, or all transactions
Account Entry	Hash, credential-derived address, manual addresses, or all entries

Triggers use Atto's NDJSON endpoints. When a stream closes or fails, the node reconnects with exponential backoff from 1 to 30 seconds. Receiving an event resets the delay.

Example workflows

The examples directory contains importable workflows:

• send-transaction.json sends Atto from a manual trigger.
• incoming-to-receive.json receives an incoming receivable.
• ping-pong-receivable.json receives a payment and sends the same raw amount back.
• receivable-trigger.json starts a workflow when a receivable appears.

Attach your Atto API credential after importing a workflow. Replace placeholder addresses before running a transaction operation.

Security

Store wallet material in n8n credentials when working with real funds. The node also accepts wallet material as password-type node parameters for local derivation and controlled testing, but your n8n instance may retain node parameters in workflow or execution records.

The node does not log or return wallet secrets, seeds, private keys, or API keys. Review n8n execution-data retention and access controls before using signing operations in production.

Compatibility

Component	Requirement
n8n node metadata	Nodes API v1
Node.js runtime and development	22.22.0 or newer
Package manager	npm
Container integration tests	Docker or a local Podman socket

The Node.js requirement is checked when npm installs the package. The official current n8n container image uses a compatible runtime; custom installations must provide Node.js 22.22.0 or newer.

Development

Install dependencies and run the checks:

npm ci --ignore-scripts
npm run build
npm run lint
npm test

npm test runs the integration, smoke, trigger, and unit test files in sequence. The integration file records a skip when neither Docker nor a local Podman socket is available. Require the container path with:

ATTO_TEST_INTEGRATION=1 npm run test:integration

Start the n8n development environment with:

npm run dev

Install from a checkout

If you have shell access inside an n8n container:

cd /tmp
git clone https://github.com/attocash/integrations-n8n.git
cd integrations-n8n
npm run install:n8n

The installer builds, validates, packs, and installs the generated tarball. It uses these locations in order:

1. N8N_NODES_DIR, when set.
2. ${N8N_USER_FOLDER}/.n8n/nodes, when N8N_USER_FOLDER is set.
3. ${HOME}/.n8n/nodes.

Set RUN_TESTS=1 to run the full test suite before installation. Restart n8n when the installer finishes.

See CONTRIBUTING.md for the release process and maintainer setup.

How Commons is used

Atto Commons supplies the protocol models, address derivation, block construction, hashing, and signing.

Package	Role in this repository	Published package
@attocash/commons-core	Runtime protocol implementation	Bundled into the built protocol adapter
@attocash/commons-test	Node and Worker mocks for integration tests	Not used or installed at runtime
n8n-workflow	n8n types and runtime APIs	Provided by n8n as a peer dependency

Network requests go through n8n's HTTP helpers. The npm package has no production dependencies; Commons Core is bundled once so n8n does not need a separate Commons installation.

Support

• Read the operation notes in USAGE.md.
• Open a bug or feature request in GitHub Issues.
• See the n8n community-node documentation.

This package is available under the MIT License.
