Heatmap overlay for next-move frequencies

[jeffpalm]

Hey! 👋 Just discovered Opening Scanner — really impressed with it. The no-server-state, all-client-side scan model is a delightful piece of engineering and the warm wood/paper aesthetic is gorgeous. Whipped this up in an evening and figured I'd toss it over the fence.

What this adds

A "Heatmap" toggle next to the Export button on the board panel. Flip it on and every candidate next move at the current position gets a per-square overlay:

• Cold-to-hot color tint on the destination square — blue for the least-played continuation, red for the most-played, the short way through purple/magenta around the hue wheel. Skips green/yellow on purpose so the gradient doesn't fight the warm wood board.
• Differentiating opening name — when every candidate falls under the same family (e.g. you're sitting in a Sicilian and looking at Najdorf / Closed / Alapin), the shared family prefix is stripped so each square shows just the variation. Otherwise the full ECO name shows.
• Share % and game count — significant cells (≥ 3% of games) get whole-percent precision; insignificant cells drop the tint and use board-aware text colors with hundredth-of-a-percent precision (so a 1-game outlier reads as 0.02% instead of collapsing to 0%).

Everything fades in/out smoothly when you drill, and the typography is cqi-driven so it scales with the rendered square width — not the viewport.

Screenshots

Hikaru on chess.com, last year, blitz + rapid, 500 games:

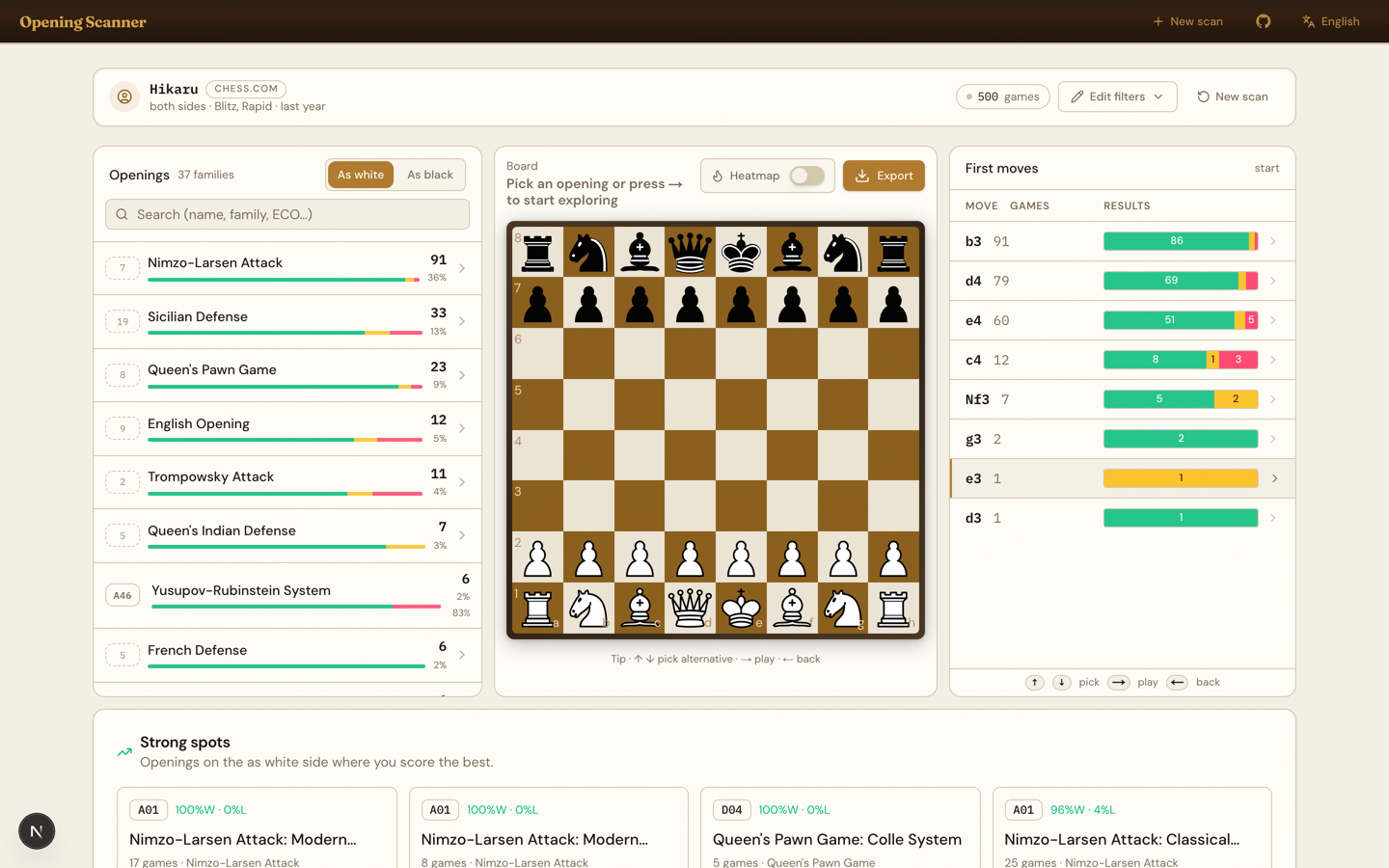

Default — heatmap off

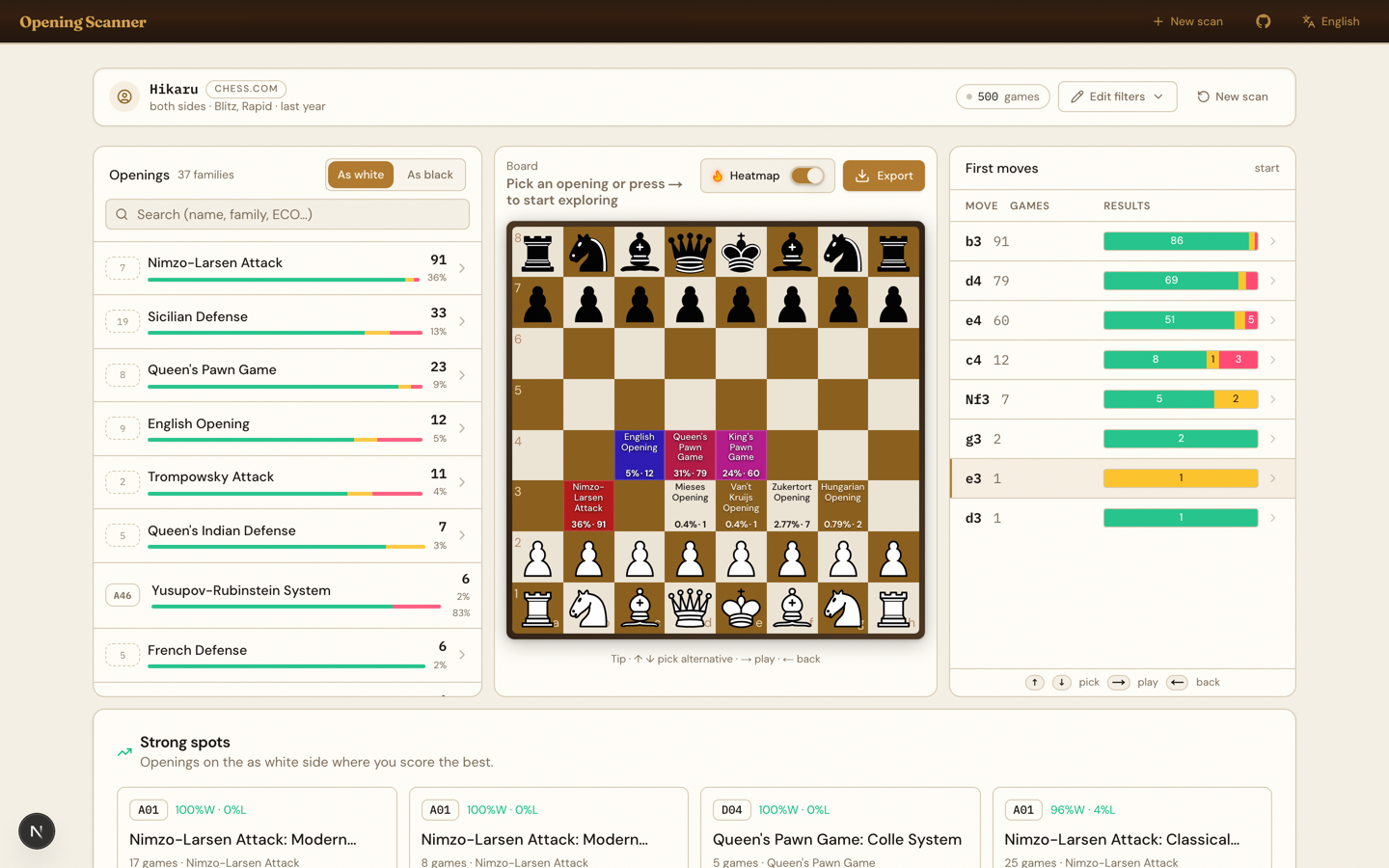

Heatmap on, initial position

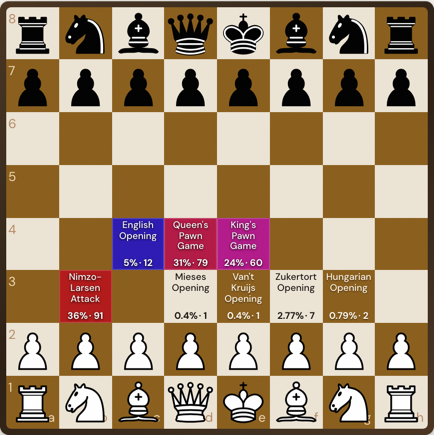

Board close-up — gradient + adaptive labels

You can see the cold-to-hot scale at work: Nimzo-Larsen (b3) at 36% reads as deep red, Queen's Pawn / King's Pawn step down through magenta, English (c4) at 5% reads as cool blue. Insignificant cells (Mieses, Van't Kruijs, Hungarian, Zukertort) skip the tint entirely and switch to board-aware text colors so the label still reads cleanly on the bare squares.

Heatmap on, mid-opening (after 1.Nf3 d5 2.c4)

Implementation notes

A few things you might want to know before reviewing:

• No new server state, no new dependencies. The heatmap is a pure transform over the existing MoveNode continuations tree. Lives in lib/heatmap/heatmap.ts.
• ECO catalog is dynamic-imported. eco-data.ts is ~800 kB. Users who never flip the toggle don't pay for it — hooks/use-eco-lookup.ts lazy-imports the module on first enable, then caches the lookup.
• No worker boundary changes. Worker still streams + classifies + emits aggregated stats; the heatmap reads what's already there.
• Stays inside the existing react-chessboard API. Uses the squareRenderer option (v5+) to paint per-square overlays. No fork, no monkey-patch.
• i18n complete. All 13 locales got heatmap.label / heatmap.tooltip translations in this PR.

Files

• lib/heatmap/heatmap.ts — buildHeatmap(), gradient color, significance threshold (3% share), variation-name picker
• hooks/use-eco-lookup.ts — lazy ECO catalog loader
• components/chess/heatmap-toggle.tsx — labelled <Switch> with a flame icon (lit when on)
• components/chess/chess-board.tsx — accepts a heatmap prop, renders the overlay via squareRenderer with a fade-in/out state machine
• components/scanner/dashboard.tsx — owns the toggle state, plumbs cells to the board

Test plan

• pnpm typecheck clean
• pnpm lint clean (0 new warnings)
• Manual smoke: scan Hikaru on chess.com, toggle heatmap on, drill in/out, toggle off → on again (the toggle-back-on path was a bug at one point — fixed in this PR)
• Light + dark squares both legible at every gradient stop
• Long opening names truncate to 3 lines + ellipsis instead of spilling
• Long counts (49% · 1,071) shrink the stat font instead of overflowing

Happy to iterate on color, threshold, label placement, or anything else — and equally happy if this just turns out not to be the direction you want for the project. Either way, thanks for building Opening Scanner.

🤖 Generated with Claude Code

[vercel]

Someone is attempting to deploy a commit to the atamano's projects Team on Vercel.

A member of the Team first needs to authorize it.

[atamano]

Hey, thanks for the contribution! The idea looks interesting, I'll take a closer look and get back to you ASAP.
