Aspectow Demo Site: Comprehensive WAS Reference Application

The Aspectow Demo Site is a comprehensive reference application designed to showcase the multi-application integration, enterprise architecture, and operational capabilities of the Aspectow Web Application Server (WAS) powered by the Aspectran framework.

It demonstrates how enterprise web applications, RESTful services, real-time interactive components, and monitoring agents run concurrently within a unified Aspectow runtime environment.

Hosted Web Applications

The demo site hosts distinct, fully functioning web applications served simultaneously by the embedded Undertow server:

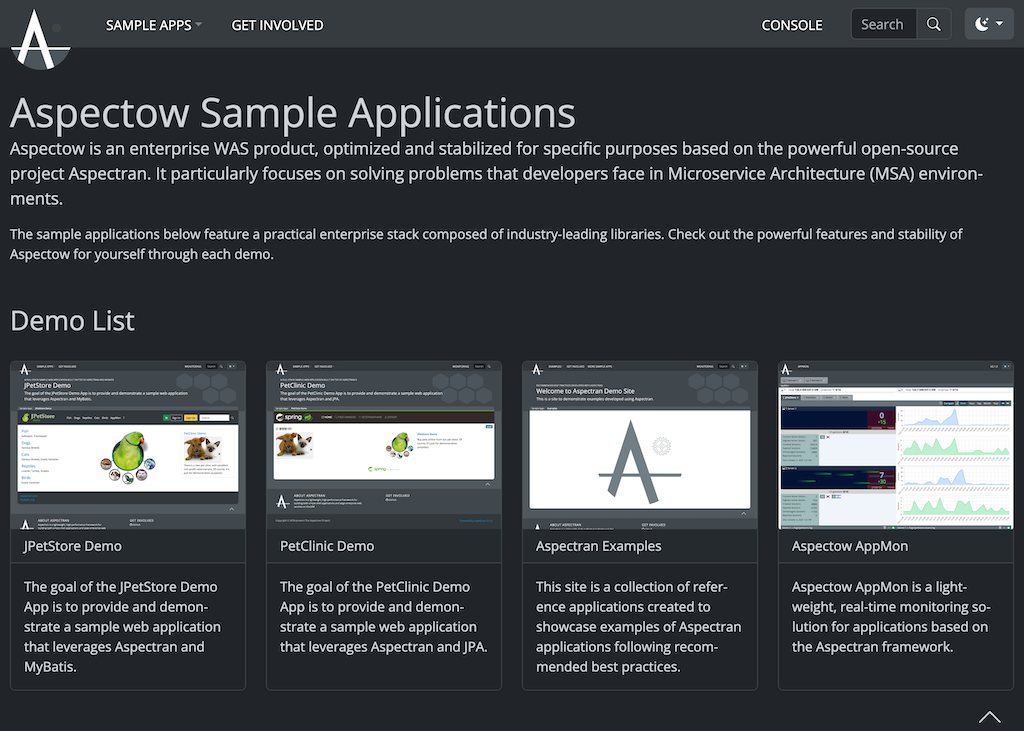

• Main Portal (/)

  • Central entry point and landing dashboard linking to all hosted applications and demonstration modules.

• JPetStore Demo (/jpetstore/)

  • A full-featured enterprise e-commerce reference application ported to Aspectran.
  • Demonstrates MyBatis integration, declarative transaction management, shopping cart session handling, and order workflows.

• PetClinic Demo (/petclinic/)

  • The classic PetClinic enterprise application built with Aspectran.
  • Demonstrates JPA / Hibernate ORM integration, Querydsl type-safe querying, bean validation, and Thymeleaf layout templating.

• Aspectran Examples & Skylark Showcase (/demo/)

  • WebSocket Chat: Real-time multi-user bidirectional chat service with custom JSON encoders/decoders.
  • Text-to-Speech (TTS): Server-side audio synthesis and streaming powered by FreeTTS.
  • File Upload: Async multipart file upload and processing.
  • RESTful Services & Translet Interpreter: Dynamic Translet execution and interactive web terminal.

• Aspectow AppMon (/console/)

  • Embedded Application Monitoring engine exposing real-time server health, JVM heap and Undertow worker thread pool metrics, live request activities, active sessions, and log tailing with WHOIS IP geolocation resolution.

• H2 Database Console (/h2console/)

  • Integrated web-based H2 database management console for inspecting application data schemas and tables.

Architecture & Integration

aspectow-demo operates as an enterprise WAS node capable of coordinating with the centralized Aspectow Demo Console via Redis.

┌─────────────────────────────────────────────────────────────┐
│                 Aspectow Demo Site (WAS)                    │
│                                                             │
│  ┌──────────────┐ ┌──────────────┐ ┌─────────────────────┐  │
│  │ Main Portal  │ │  JPetStore   │ │      PetClinic      │  │
│  │     (/)      │ │ (/jpetstore) │ │    (/petclinic)     │  │
│  └──────────────┘ └──────────────┘ └─────────────────────┘  │
│  ┌───────────────────────────────┐ ┌─────────────────────┐  │
│  │   Aspectran Examples (/demo)  │ │ AppMon Engine Agent │  │
│  │  - WebSocket Chat, TTS, etc.  │ │     (/console)      │  │
│  └───────────────────────────────┘ └─────────────────────┘  │
│  ─────────────────────────────────────────────────────────  │
│             Embedded Undertow Server Engine (:8080)         │
└──────────────────────────────┬──────────────────────────────┘
                               │ (Cluster & Metrics Bus)
                               ▼
                          ┌─────────┐
                          │  Redis  │
                          └─────────┘

Key Technical Features

• Unified Multi-Context Hosting: Runs multiple independent web applications and REST APIs concurrently within a single embedded Undertow server without separate container deployments.
• Diverse Persistence Stack: Integrates MyBatis (for SQL-centric data mapping) and JPA/Hibernate + Querydsl (for domain-driven ORM) in harmony.
• Modern Templating: Full support for Thymeleaf (with Layout Dialect) and JSP view resolvers.
• Real-Time Communication: Low-latency bidirectional WebSocket communication with custom message pipelines.
• Session Management & Clustering: Flexible session backends supporting local file stores as well as distributed Redis (Lettuce) clustering.
• Observability & Health Monitoring: Built-in AppMon exporters for live JVM memory, thread pool statistics, access logs, and request tracing.

Project Structure

aspectow-demo/
├── app/
│   ├── bin/             Runtime scripts for Shell, Daemon, and Windows Service (Procrun)
│   ├── config/          Application rules, server configurations, AppMon, and logging setups
│   ├── lib/             Runtime dependencies and application JARs (generated on build)
│   ├── logs/            Application, access, and subsystem logs
│   └── webapps/         Static web resources, templates, and WEB-INF assets
│       ├── demo/        Aspectran Examples & WebSocket chat assets
│       ├── jpetstore/   JPetStore web application
│       ├── petclinic/   PetClinic web application
│       └── root/        Main portal landing page
├── setup/               Server deployment scripts and service installation utilities
├── src/                 Java source code (PetClinic, JPetStore, Chat, TTS, AppMon)
└── pom.xml              Maven build configuration

Configuration & Profiles

Configuration files are located under app/config/:

• aspectran-config.apon: Core Aspectran configuration, shell commands, and daemon settings
• server/server.xml: Undertow server and servlet context routing configurations
• console/node-config.apon: Node and cluster settings
• console/appmon-config.apon: AppMon monitoring targets, metrics, and log settings
• console/redis-dev.properties / redis-prod.properties: Redis connection settings

Active Profiles

• dev (default): Configured for development environment.
• prod: Configured for production environment with Redis session clustering.
• appmon.ext-persistence: Enables external database persistence for AppMon monitoring data.

License

This project is licensed under the Apache License, Version 2.0. See the LICENSE.txt file for details.
