node-brother-label-printer

A modern TypeScript library for printing PNG images with Brother Label Printers. Features JSON-based configuration system, automatic printer detection, extensible label support, and runtime configuration loading for maximum flexibility.

Supported Printers

This library is designed to work with all Brother QL series label printers via a flexible JSON configuration system. Simply add a configuration file for your printer model.

Supported Brother QL Series

• QL-500 Series: QL-500, QL-550, QL-560, QL-570, QL-580N
• QL-600 Series: QL-650TD
• QL-700 Series: QL-700, QL-710W, QL-720NW
• QL-800 Series: QL-810W, QL-820NWB
• QL-1000 Series: QL-1050, QL-1060N
• QL-1100 Series: QL-1110NWB, QL-1115NWB

Testing Status

Currently tested and verified with QL-700. Other models should work by adding appropriate configuration files. Contributions of tested configurations are welcome!

See the Configuration System section to add your printer model.

Features

• 🎛️ JSON Configuration System - Extend printer and label support via external config files
• 🔧 Runtime Configuration Loading - Add new printers and labels without code changes
• 🔥 TypeScript Support - Full type definitions included
• 🤖 Auto-Detection - Automatically detects printer model and loaded media
• 📏 Extensible Label Support - Add any label size via JSON configuration
• 🎯 Smart Media Detection - Auto-detects loaded label size and type
• 🖼️ Intelligent Image Processing - Auto-resize, center, and optimize for any label
• 🔬 Calibration System - Fine-tune positioning and cutting per label via config files
• 📊 Status Monitoring - Real-time printer status checking and error reporting
• 🗜️ Smart Compression - Automatically enables/disables based on printer support
• 📦 Dual Module Support - Works with both CommonJS and ES Modules
• 📝 Optional Debug Logging - Enable detailed logging when needed, silent by default

Installation

npm install node-brother-label-printer

Platform-specific Requirements

If you use USB as an adapter:

• On Linux, you'll need libudev to build libusb.
• On Ubuntu/Debian: sudo apt-get install build-essential libudev-dev.
• On Windows, Use Zadig to install the WinUSB driver for your USB device.

Otherwise you will get LIBUSB_ERROR_NOT_SUPPORTED when attempting to open devices.

Debug Logging

By default, the library suppresses verbose debug logs to avoid cluttering your console. Errors and warnings are always shown regardless of logging settings, ensuring you never miss critical issues. You can enable detailed debug logging in two ways:

Via Environment Variable

# Enable logging for this library
DEBUG=brother-printer node your-script.js

# Or enable all debug logging
DEBUG=* node your-script.js

Programmatically

import { enableLogging, printPngFileAuto } from 'node-brother-label-printer';

// Enable debug logging
enableLogging(true);

// Now all operations will show detailed logs
await printPngFileAuto({
  filename: './sample.png',
  options: { labelWidth: '62-mm-wide continuous' }
});

// Disable logging when done
enableLogging(false);

When enabled, you'll see detailed debug information about:

• 🔍 Printer detection and capabilities
• 📏 Media detection and label configuration
• 🖼️ Image processing steps (resizing, rotation, conversion)
• 📊 Print data generation and compression
• 🔧 Calibration adjustments

Note: Errors and warnings are always visible, even when debug logging is disabled.

Usage

🚀 Auto-Detection (Recommended)

The auto-detection feature automatically finds your printer and optimizes settings:

import { printPngFileAuto, listAvailablePrinters } from 'node-brother-label-printer';

// Simple auto-detection usage - detects both printer AND media
await printPngFileAuto({
  filename: './sample.png',
  options: {
    landscape: false,
    // Label width is auto-detected from loaded media!
    // Specify as fallback only if auto-detection fails:
    labelWidth: '62-mm-wide continuous',
    blackwhiteThreshold: 128 // Optional, defaults to 128
  }
  // Printer detection, media detection, image resizing all automatic! 🎉
});

// List available printers
const printers = listAvailablePrinters();
console.log('Available printers:', printers);

// Example configured labels (add more via config/labels/):
// Continuous: '62-mm-wide continuous', '29-mm-wide continuous', etc.
// Die-cut:    '29x90-mm-die-cut', '38x90-mm-die-cut', etc.
// See Configuration System section to add more labels

// Force specific printer if multiple detected
await printPngFileAuto({
  filename: './sample.png',
  options: { labelWidth: '62-mm-wide continuous' },
  forceProductId: 0x2042 // Example: Force specific printer by Product ID
});

🔧 Manual Configuration

For direct control over printer selection:

import { printPngFile, type PrintPngFileParams } from 'node-brother-label-printer';

const printParams: PrintPngFileParams = {
  vendorId: 0x04f9,              // Brother vendor ID
  productId: 0x2042,             // Your printer's product ID
  filename: './sample.png',
  options: {
    landscape: false,
    labelWidth: '62-mm-wide continuous',
    blackwhiteThreshold: 128
  },
  compression: { enable: false } // Set based on your printer's capabilities
};

await printPngFile(printParams);

📊 Advanced Usage with Status Monitoring

import {
  detectSingleBrotherPrinter,
  queryPrinterStatus,
  hasStatusError,
  getStatusErrorMessage
} from 'node-brother-label-printer';

// Detect printer and check status
const printer = detectSingleBrotherPrinter();
if (!printer) {
  throw new Error('No printer found');
}

console.log(`Found: ${printer.capabilities.model}`);

// Check printer status before printing
const status = await queryPrinterStatus(printer.device);
if (hasStatusError(status)) {
  console.error('Printer error:', getStatusErrorMessage(status));
} else {
  console.log('Printer ready!');
}

CommonJS

const { printPngFileAuto } = require('node-brother-label-printer');

// Auto-detection works with CommonJS too
printPngFileAuto({
  filename: './sample.png',
  options: {
    landscape: false,
    labelWidth: '62-mm-wide continuous'
  }
}).then(() => {
  console.log('Print job sent successfully!');
}).catch(error => {
  console.error('Print failed:', error);
});

🎯 Example Configuration

The library includes a reference configuration for the QL-700, demonstrating how the JSON-based system works for any Brother QL printer.

Configuration Files Structure

• Printer: config/printers/*.json - Defines capabilities and initialization
• Labels: config/labels/*.json - Defines supported label formats with calibration

Example: QL-700 Configuration

The QL-700 configuration (config/printers/QL-700.json) demonstrates key printer properties:

• Compression support: supportsCompression: false - some printers support TIFF compression, others don't
• Bytes per line: bytesPerLine: 90 - defines raster line format (varies by max width)
• Total pins: totalPins: 720 - determines maximum label width (720 = 62mm max)
• Auto-cut support: supportsAutoCut: true - enables automatic label cutting
• Initialization settings: Model-specific startup sequences

Your printer may have different values - check Brother's documentation or similar models for reference.

Common Troubleshooting

Problem: Printer not detected or blinks but doesn't print

• Solution: Some printers have dual modes (printer mode vs. mass storage/editor mode)
• Fix: Check for a mode switch button on your printer (like E/EL on QL-700)

Problem: "Printer is in mass storage mode" error

• Solution: Switch printer to printer mode using the mode toggle button

Problem: Print quality issues or garbled output

• Solution: Verify printer configuration values (especially bytesPerLine and totalPins)
• Check: Label configuration calibration values may need adjustment

Advanced Image Processing

import {
  convert,
  getPrinterCapabilities,
  type PngImage,
  type PrintOptions
} from 'node-brother-label-printer';
import { parseFile } from 'pngparse';
import { promisify } from 'util';

const parseFileAsync = promisify(parseFile);

async function processAndPrint() {
  // Parse PNG file
  const image: PngImage = await parseFileAsync('./my-label.png');

  // Get printer capabilities from config (use your printer's product ID)
  const capabilities = getPrinterCapabilities(0x2042); // Example: QL-700's product ID
  if (!capabilities) throw new Error('Printer not configured - add config file');

  // Convert to printer format with configured label
  const printData = convert(image, {
    landscape: false,
    labelWidth: '62-mm-wide continuous', // Use any configured label
    blackwhiteThreshold: 128
  }, {
    enable: false // Respects printer's supportsCompression setting from config
  }, capabilities);

  // The library automatically:
  // - Loads printer config from config/printers/YOUR-PRINTER.json
  // - Loads label config from config/labels/YOUR-LABEL.json
  // - Applies calibration adjustments from label config
  // - Optimizes based on printer capabilities
  // - Logs all processing steps (if logging enabled)
  console.log(`Generated ${printData.length} bytes of print data`);
}

🎛️ Configuration System

The library uses a powerful JSON-based configuration system that allows you to add printer and label support without modifying code. All configurations are loaded at runtime from the config/ directory.

Directory Structure

config/
├── printers/         # Printer specifications (add your printer here)
│   └── *.json       # One file per printer model
├── labels/           # Label specifications with calibrations
│   └── *.json       # One file per label format
└── README.md         # Detailed configuration guide

Included Example Configurations

Printer Example: QL-700 (config/printers/QL-700.json)

Label Examples:

• 62-mm-wide continuous - Standard continuous labels
• 29x90-mm-die-cut - Die-cut labels with calibration
• 38x90-mm-die-cut - Die-cut labels with calibration

Use these as templates for adding your own printer and label configurations.

Adding Your Printer

1. Find your printer's USB Product ID using Zadig or lsusb
2. Create config/printers/YOUR-MODEL.json:

{
  "model": "QL-720NW",
  "productId": "0x2049",
  "vendorId": "0x04F9",
  "capabilities": {
    "supportsCompression": true,
    "supportsHighResolution": true,
    "supportsAutoCut": true,
    "bytesPerLine": 90,
    "totalPins": 720,
    "maxWidthMm": 62
  },
  "initialization": {
    "invalidCommandLength": 200,
    "requiresRasterModeSwitch": false,
    "expandedModeSupported": true
  },
  "supportedLabelGroups": ["standard", "narrow", "special"]
}

Key fields:

• productId - Your printer's USB Product ID (hex string)
• supportsCompression - Whether printer supports TIFF PackBits compression
• bytesPerLine - Raster line byte count (usually 90 for 62mm, 162 for 102mm printers)
• totalPins - Print head pins (720 for 62mm printers, 1296 for 102mm printers)
• maxWidthMm - Maximum label width supported

Adding Label Formats

1. Create config/labels/YOUR-LABEL.json:

{
  "name": "17-mm-wide continuous",
  "displayName": "17mm Wide Continuous",
  "type": "continuous",
  "widthMm": 17,
  "lengthMm": null,
  "calibration": {
    "leftOffsetAdjustment": 0,
    "topOffsetAdjustment": 0,
    "lengthAdjustmentMm": 0
  },
  "processingGroup": "narrow",
  "requiresSpecialHandling": false,
  "specialHandlingNotes": null
}

2. For die-cut labels, include lengthMm:

{
  "name": "62x100-mm-die-cut",
  "displayName": "62x100mm Die Cut",
  "type": "die-cut",
  "widthMm": 62,
  "lengthMm": 100,
  "calibration": {
    "leftOffsetAdjustment": 0,
    "lengthAdjustmentMm": -3
  },
  "processingGroup": "standard",
  "requiresSpecialHandling": false
}

Calibration Parameters

Fine-tune label positioning and cutting:

• leftOffsetAdjustment - Horizontal shift in pixels (+ = right, - = left)
• topOffsetAdjustment - Vertical shift in pixels (+ = down, - = up)
• lengthAdjustmentMm - Die-cut only: Adjust cut length (- = shorter, + = longer)

Example: If labels are cutting into the next label, use negative lengthAdjustmentMm:

"lengthAdjustmentMm": -5.25

See config/README.md for detailed calibration testing procedures.

Testing Your Configuration

1. Add your config files to config/printers/ and config/labels/
2. Build the library: npm run build
3. Test with your printer:

node test-label-printing.js

4. Adjust calibration values as needed and rebuild

Configuration Loading

• Runtime loading: JSON files loaded when library starts
• Caching: 1-minute cache to avoid repeated file I/O
• Validation: Invalid configs logged and skipped gracefully
• No code changes: Just add JSON files and rebuild

Label Auto-Detection Example

import {
  detectSingleBrotherPrinter,
  queryPrinterStatus,
  detectLabelWidth
} from 'node-brother-label-printer';

// Detect printer and loaded media
const printer = detectSingleBrotherPrinter();
if (printer) {
  // Query printer to detect loaded media
  const status = await queryPrinterStatus(printer.device);
  console.log(`Loaded media: ${status.mediaWidth}mm`);

  // Auto-detect from configured labels
  const detectedLabel = detectLabelWidth(status);
  console.log(`Detected label: ${detectedLabel}`);

  // Print with auto-detected settings
  if (detectedLabel) {
    await printPngFileAuto({
      filename: './label.png',
      options: { labelWidth: detectedLabel }
    });
  }
}

API Reference

Core Printing Functions

printPngFileAuto(params: AutoPrintPngFileParams): Promise<void>

Recommended - Print with automatic printer and media detection.

await printPngFileAuto({
  filename: './label.png',
  options: {
    labelWidth: '62-mm-wide continuous', // Auto-detected if not specified
    landscape: false,
    blackwhiteThreshold: 128
  },
  forceProductId?: 0x2042 // Optional: force specific printer
});

printPngFile(params: PrintPngFileParams): Promise<void>

Legacy function for manual printer specification.

Parameters:

• vendorId: number - USB Vendor ID (e.g., 0x04f9 for Brother)
• productId: number - USB Product ID (e.g., 0x2042 for QL-700)
• filename: string - Path to PNG file
• options: PrintOptions - Print configuration
  • landscape?: boolean - Rotate image 90° (default: false)
  • labelWidth: LabelWidth - Label size specification
  • blackwhiteThreshold?: number - B&W conversion threshold 0-255 (default: 128)
• compression: CompressionOptions - Compression settings
  • enable: boolean - Enable/disable compression

convert(image: PngImage, options: PrintOptions, compression: CompressionOptions, capabilities: PrinterCapabilities): Buffer

Convert a parsed PNG image to Brother printer format with adaptive processing.

Printer Detection Functions

detectBrotherPrinters(): DetectedPrinter[]

Detect all connected Brother QL printers.

const printers = detectBrotherPrinters();
printers.forEach(p => {
  console.log(`${p.capabilities.model} - ${p.isInPrinterMode ? 'Ready' : 'Mass Storage Mode'}`);
});

detectSingleBrotherPrinter(forceProductId?: PrinterProductId): DetectedPrinter | null

Detect a single printer, optionally filtering by product ID.

listAvailablePrinters(): DetectedPrinter[]

List all available printers with console output.

getPrinterCapabilities(productId: PrinterProductId): PrinterCapabilities | null

Get capabilities for a specific printer model.

Status and Media Detection

queryPrinterStatus(device: usb.Device): Promise<PrinterStatus>

Query printer status including media information and errors.

const status = await queryPrinterStatus(printer.device);
console.log(`Media: ${status.mediaWidth}mm, Type: ${status.mediaType}`);

hasStatusError(status: PrinterStatus): boolean

Check if printer status indicates an error condition.

getStatusErrorMessage(status: PrinterStatus): string | null

Get human-readable error message from status.

detectLabelWidth(status: PrinterStatus): LabelWidth | null

Automatically detect label format from printer status.

const labelWidth = detectLabelWidth(status);
// Returns: '62-mm-wide continuous', '29x90-mm-die-cut', etc.

Logging Functions

enableLogging(enabled: boolean): void

Enable or disable debug logging.

enableLogging(true);  // Show detailed debug logs
enableLogging(false); // Silent mode (errors/warnings still shown)

isLoggingEnabled(): boolean

Check if logging is currently enabled.

Getting Printer Information

To add support for your printer, you'll need its USB Product ID (PID):

1. On Windows: Use Zadig to identify the PID
2. On Linux/Mac: Use lsusb command and look for Brother devices
3. Vendor ID: Always 0x04F9 (Brother)
4. Product ID: Varies by model (e.g., 0x2042 for QL-700)

Once you have the Product ID, create a printer config file in config/printers/ (see Configuration System).

Image Requirements

• Format: PNG only
• Size: Any - images are automatically resized to fit your label!
  • Images too large are scaled down to fit
  • Images too small are centered on the label
  • Aspect ratio is always preserved
• Color: Any (will be converted to black & white)

Download a sample PNG file to test with.

Example

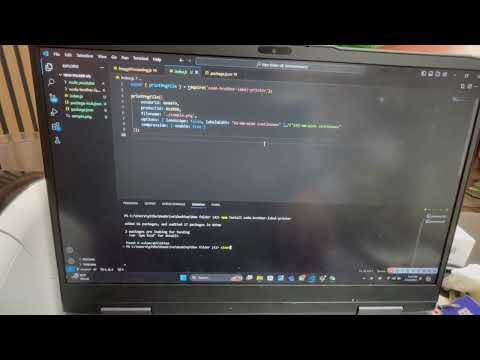

Youtube Demo Video

Development

Getting Started

# Clone the repository
git clone https://github.com/Zei33/node-brother-label-printer.git
cd node-brother-label-printer

# Install dependencies
npm install

# Build the project (required before testing)
npm run build

# Run tests
npm test

# Run tests with coverage
npm run test:coverage

# Run linter
npm run lint

# Fix linting issues
npm run lint:fix

# Development mode (watch for changes)
npm run dev

Project Structure

node-brother-label-printer/
├── config/                      # Runtime JSON configurations
│   ├── printers/                # Printer specifications (add yours here)
│   │   └── *.json              # Example: QL-700.json
│   ├── labels/                  # Label specifications with calibrations
│   │   └── *.json              # Example: 62-mm-wide-continuous.json
│   └── README.md                # Configuration guide and calibration instructions
│
├── src/                         # TypeScript source files
│   ├── lib/                     # Core library modules
│   │   ├── calibration/         # Label calibration utilities
│   │   │   └── labelCalibration.ts
│   │   ├── config/              # Runtime configuration loader
│   │   │   └── configLoader.ts  # Loads JSON configs at runtime
│   │   ├── image/               # Image processing pipeline
│   │   │   ├── compression.ts   # TIFF PackBits compression
│   │   │   ├── processing.ts    # Adaptive image processing
│   │   │   └── utils.ts         # Image manipulation utilities
│   │   ├── printer/             # Printer communication and detection
│   │   │   ├── detection.ts     # Auto-detection and capabilities
│   │   │   ├── printing.ts      # USB communication and printing
│   │   │   └── status.ts        # Status query and error handling
│   │   └── utils/               # Shared utilities
│   │       └── logger.ts        # Debug logging system
│   ├── types/                   # TypeScript type definitions
│   │   ├── config.ts            # Configuration file types
│   │   ├── core.ts              # Core data types
│   │   ├── external.ts          # External library types (pngparse)
│   │   ├── index.ts             # Type exports
│   │   ├── label.ts             # Label and calibration types
│   │   └── printer.ts           # Printer and capability types
│   ├── __tests__/               # Jest test files
│   ├── types.ts                 # Type re-exports for compatibility
│   ├── pngparse.d.ts            # PNG parser type definitions
│   └── index.ts                 # Main library entry point
│
├── dist/                        # Compiled output (auto-generated)
│   ├── *.js                     # ES Module files
│   ├── *.cjs                    # CommonJS files
│   ├── *.d.ts                   # TypeScript declarations
│   └── lib/, types/             # Compiled module structure
│
├── scripts/                     # Build scripts
│   └── fix-cjs-extensions.js   # CJS extension fixer for dual builds
│
├── samples/                     # Sample label images for testing
├── test-label-printing.js       # Manual test script
├── package.json                 # Project configuration
├── tsconfig.json                # TypeScript config (ESM)
├── tsconfig.cjs.json            # TypeScript config (CJS)
├── jest.config.js               # Jest test configuration
└── eslint.config.js             # ESLint configuration

Build System

The project uses a dual-build system for maximum compatibility:

Build Process:

1. Clean: npm run clean - Removes old build artifacts
2. ESM Build: npm run build:esm - Compiles TypeScript to ES Modules (.js)
3. CJS Build: npm run build:cjs - Compiles to CommonJS, then converts imports and renames to .cjs
4. Extension Fix: scripts/fix-cjs-extensions.js - Ensures .cjs files use .cjs imports

Output:

• dist/*.js - ES Module format for modern bundlers and Node.js ESM
• dist/*.cjs - CommonJS format for Node.js require()
• dist/*.d.ts - TypeScript declarations (shared by both)

Package Configuration (from package.json):

{
  "type": "module",
  "main": "./dist/index.js",
  "module": "./dist/index.js",
  "types": "./dist/index.d.ts",
  "exports": {
    ".": {
      "import": "./dist/index.js",
      "require": "./dist/index.cjs",
      "types": "./dist/index.d.ts"
    }
  }
}

Adding Configuration Files

1. Add printer config: Create config/printers/YOUR-MODEL.json
2. Add label config: Create config/labels/YOUR-LABEL.json
3. Rebuild: npm run build (includes config files in dist)
4. Test: Use test-label-printing.js to validate

Testing

Jest tests with TypeScript support:

npm test              # Run all tests
npm run test:watch    # Run tests in watch mode
npm run test:coverage # Run tests with coverage report

Contributing

We welcome contributions! The JSON configuration system makes it easy to add support for new printers and labels.

Adding Printer Support

1. Fork this repo
2. Clone your fork: git clone <your-fork-url>
3. Create config/printers/YOUR-MODEL.json with your printer's specifications
4. Test with your printer using test-label-printing.js
5. Submit a Pull Request with your configuration file

Adding Label Support

1. Create config/labels/YOUR-LABEL.json with label specifications
2. Test and calibrate using the procedures in config/README.md
3. Submit a Pull Request with calibrated values

Code Contributions

1. Create a feature branch: git checkout -b feature/amazing-feature
2. Make your changes and add tests
3. Ensure all tests pass: npm test
4. Ensure the build works: npm run build
5. Run linter: npm run lint
6. Commit your changes: git commit -m 'Add amazing feature'
7. Push to your branch: git push origin feature/amazing-feature
8. Open a Pull Request

Code Quality Standards

• Write TypeScript with full type safety
• Add tests for new features (Jest)
• Follow existing code structure and patterns
• Update documentation for API changes
• Use ESLint configuration provided
• Add JSDoc comments for public APIs

Support

If you enjoy this project and would like to support its development:

• ☕ Buy me a coffee (original author)

Contributors

Thanks to all contributors! 🎉👏

• Zei33 - 2.0 rewrite author
• Yiqun Xu - Original author
• Yutao Li - Original Contributor
