MedicalApp

Overview

A distributed healthcare appointment management system built with .NET 9 and gRPC.
Doctors and patients manage medical appointments through a secure Razor Pages web client that communicates with a backend gRPC service over mTLS.

Features

Doctor Schedule Management

• Create schedules with working hours and slot durations
• Set validity periods and manage availability
• View and manage individual time slots

Appointment Management

• Book appointments based on a doctor's schedule
• View upcoming and past appointments
• Cancel or reschedule appointments
• Appointment status tracking

Security

• JWT-based authentication via gRPC
• Cookie authentication in the web client (8-hour expiry, SameSite=Strict)
• Antiforgery (CSRF) protection
• Security response headers (X-Frame-Options, X-Content-Type-Options, Referrer-Policy)

Screenshots

Technical Stack

Layer	Technology
Runtime	.NET 9 / ASP.NET Core 9
RPC	gRPC (Grpc.AspNetCore 2.70)
Web UI	Razor Pages
ORM	Entity Framework Core 9
Database	SQL Server 2022
Auth	ASP.NET Core Identity + JWT
Logging	Serilog (console + rolling file)
Observability	OpenTelemetry (traces + metrics)
Mapping	AutoMapper
Containers	Docker / Docker Compose

Architecture

┌──────────────────────────┐        gRPC/TLS        ┌──────────────────────────┐
│    Medical.Client        │ ──────────────────────► │   Medical.GrpcService    │
│  (Razor Pages, :7082)    │                         │  (gRPC server, :7084)    │
└──────────────────────────┘                         └──────────┬───────────────┘
                                                                │  EF Core
                                                     ┌──────────▼───────────────┐
                                                     │   SQL Server 2022        │
                                                     │     (:1433)              │
                                                     └──────────────────────────┘

Getting Started

Prerequisites

• .NET 9 SDK
• Docker Desktop or Rancher Desktop
• PowerShell 5.1+ (Windows) for certificate generation

1. Generate TLS Certificates

# From the repository root — creates certs/server.pfx and certs/client.pfx
powershell -File makemedicalcerts.ps1

To avoid browser certificate warnings, trust the generated root CA on your machine:

# Import the self-signed root CA into your Trusted Root store (run once)
$root = Get-ChildItem "cert:\CurrentUser\My" |
    Where-Object { $_.Subject -eq "CN=MedicalRootCA" } |
    Sort-Object NotBefore -Descending |
    Select-Object -First 1

$store = New-Object System.Security.Cryptography.X509Certificates.X509Store("Root","CurrentUser")
$store.Open("ReadWrite")
$store.Add($root)
$store.Close()
Write-Host "Trusted: $($root.Thumbprint)"

2. Run with Docker Compose

docker compose up -d

Then open https://localhost:7082 in your browser.

3. Run Locally (without Docker)

# Terminal 1 — gRPC backend
dotnet run --project src/Medical.GrpcService

# Terminal 2 — web client
dotnet run --project src/Medical.Client

Open https://localhost:7082.

Default Credentials (seed data)

Role	Email	Password
Doctor	doctor@example.com	P@ssw0rd!
Patient	patient@example.com	P@ssw0rd!

Health Checks

Endpoint	Description
GET /health/live	Liveness — process alive
GET /health/ready	Readiness — DB reachable
GET /health	Aggregate

Environment Variables (Production)

Variable	Service	Description
Kestrel__Certificates__Default__Path	both	Path to .pfx file
Kestrel__Certificates__Default__Password	both	PFX password
ConnectionStrings__DefaultConnection	GrpcService	SQL Server connection string
Token__Key	GrpcService	JWT signing key (≥ 512 bits)
Token__Issuer	GrpcService	JWT issuer URL
Token__Audience	GrpcService	JWT audience URL
GrpcClient__BaseAddress	Client	gRPC service base URL

CI/CD

Workflow	Trigger	Description
CI	push/PR to develop, master	Build + unit tests
Docker Build	push/PR to develop, master	Build both Docker images
CodeQL	push/PR + weekly schedule	Static security analysis

Project Structure

MedicalApp/
├── src/
│   ├── Medical.GrpcService/   # gRPC backend (EF Core, JWT, OTel)
│   └── Medical.Client/        # Razor Pages frontend
├── tests/
│   └── Medical.GrpcService.Tests/
├── certs/                     # Generated TLS certificates (git-ignored)
├── docker-compose.yml
├── makemedicalcerts.ps1       # Certificate generation script
├── Directory.Build.props      # Shared MSBuild properties
└── Directory.Packages.props   # Central NuGet package versions

Contributing

Contributions are welcome. Please fork the repository and create a pull request targeting the develop branch.

Author

Bohdan Harabadzhyu

License

MIT

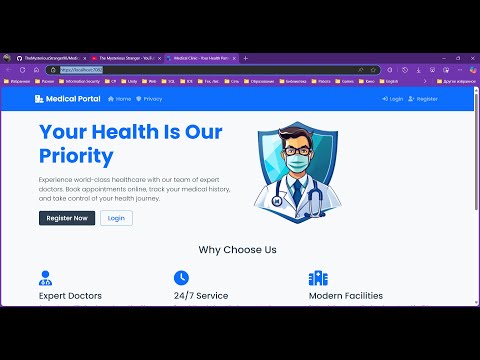

YouTube Review
