EmileTemp

TempSensors with one ESP8266, multiple DS18B20 and MQTT transfer to own MQTT Broker.

Version v0.3

Scipt is running an the output is sent to MQTT Broker

Instructions HomeAssistant

1. [ToDo]

Instructions (ESP8266)

1. Change the settings for WIFI and your MQTT Broker
2. Upload the script to an ESP8266
3. Assemble the Display (SDA - D2 | SCL - D1 | VCC - 3V | GND - G)
4. Assemble the temp-sensors (Data - D4 | VCC - 3V | GND - G | 4.7kOhm resistor between VCC and Data)
5. Start the messurment by powering the ESP8266

ToDo

1. Better documentation in the .ino file

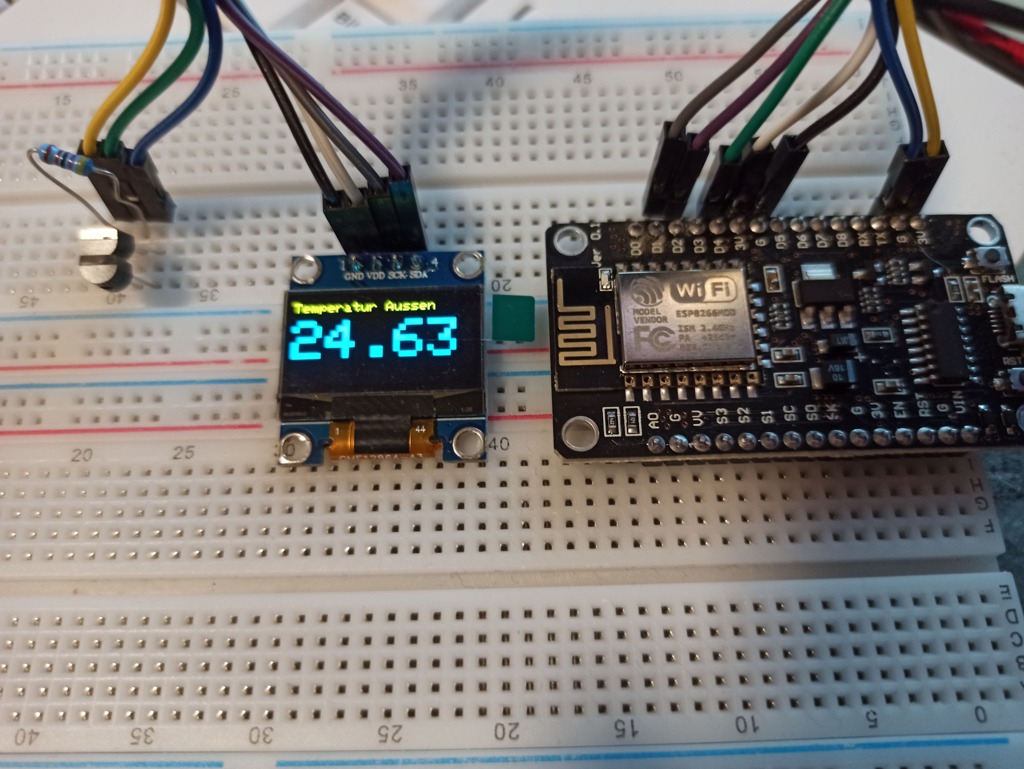

Sample
