AlgoMania

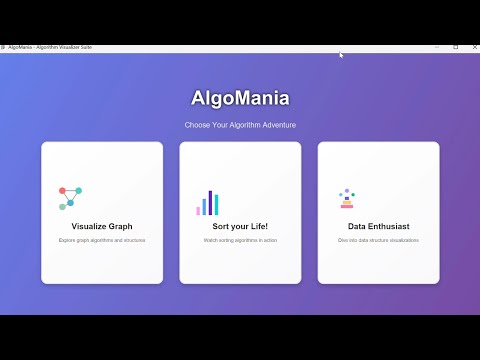

Watch YouTube demo

---

Welcome to AlgoMania — an interactive Algorithm & Data Structures Visualizer built with Java and JavaFX. AlgoMania provides visual, hands-on simulations for data structures, graph algorithms, and sorting algorithms with a modern UI and educational control panels.

---

Table of contents

• Overview
• Key Features
• Screenshots
• Prerequisites
• Getting started
  • Clone
  • Run in IntelliJ IDEA IDE (recommended)
  • Run from command line
  • Build with Maven/Gradle (guidance)
• Project structure (high level)
• Main modules & dependencies
• Usage (what each module does)
• Developer notes & tips
• Contribution guide
• License & acknowledgements
• Contact

---

Overview

---

AlgoMania is an educational desktop application demonstrating classic data structures, graph visualizations/interactions, and sorting simulations. The project uses Java modules and JavaFX for rendering interactive canvases and control panels. It was designed to make learning algorithms more visual and intuitive.

Key Features

---

• Interactive data structures visualizer (Arrays, Singly/Doubly Linked Lists, Stack, Queue, Heap, Binary Search Tree, etc.)
• Graph visualizer and interaction palette (create nodes/edges, run algorithm demos, etc.)
• Sorting simulator UI (visualize sorting process)
• Modern JavaFX-based UI with custom styling and control panels
• Modularized with Java module-info for explicit JavaFX and third-party dependencies

Screenshots

---

Main menu / dashboard (AlgoMania)

Data Structures Visualizer (Array / Linked List / Tree views)

Graph Visualizer with control panel and input panel

Sorting Simulator showing step-by-step sorting

Prerequisites

---

• JDK 17+ (recommended) or a modern JDK compatible with Java modules
• JavaFX SDK (a copy of JavaFX 24.0.1 is present in the repo under javafx-sdk-24.0.1/ but you can also use your system JavaFX installation)
• An IDE that supports Java modules (IntelliJ IDEA, Eclipse, or VS Code with Java extensions)
• (Optional) Maven or Gradle if you add a build file

Getting started

---

Clone the repository

git clone https://github.com/ShadmanSShuvo/AlgoMania.git
cd AlgoMania

Run in an IDE (recommended)

• Import the project as a Java project and make sure the module path includes your JavaFX SDK.
• Add VM options (example) to run configurations: --module-path /path/to/javafx-sdk-24.0.1/lib --add-modules=javafx.controls,javafx.fxml,javafx.web
• Run the main class edu.buet.shayan.algomania.AlgoMania.

Run from the command line (compiling & running)

• Example compile (Unix-like shell). Adjust paths and separators for Windows:

  1. Compile: javac --module-path javafx-sdk-24.0.1/lib --add-modules=javafx.controls,javafx.fxml,javafx.web -d out $(find src/main/java -name "*.java")
  2. Run: java --module-path javafx-sdk-24.0.1/lib:out --add-modules=javafx.controls,javafx.fxml,javafx.web -cp out edu.buet.shayan.algomania.AlgoMania

• Note: Adjust the --module-path path to where JavaFX libs are located on your machine. On Windows, use ; as path separator for the --module-path arguments when appropriate with shell quoting.

Build with Maven or Gradle

• This project currently doesn't contain an explicit Maven/Gradle build file in the repo snapshot. To build with Maven or Gradle:
  • Add a pom.xml or build.gradle and include JavaFX dependencies (or configure a plugin to attach the JavaFX SDK).
  • Use the JavaFX Maven Plugin or org.openjfx plugin for Gradle to configure module path and runtime arguments.

Project structure (high-level)

---

• src/main/java/edu/buet/shayan/algomania
  • AlgoMania.java — main entry point and main menu/dashboard UI
  • datastructures/
    • DataStructuresVisualizer.java — main window for data structure visualizations (canvas, control panel)
    • Visual* classes — visual implementations for array, linked list, stack, queue, heap, BST, etc.
  • graph/
    • GraphVisualizerApp.java — graph visualization application logic
    • ui/ — Graph UI components (GraphCanvas, ControlPanel, InputPanel)
    • model/ — GraphModel and related classes
    • interaction/ — e.g., ModeManager for different interaction modes
  • sorting/
    • SortingSimulator.java — UI and driver for sorting visualizations
  • images/ — image assets used by the UI (note: some files reference absolute paths which should be fixed)
• javafx-sdk-24.0.1/ — included JavaFX SDK resources & legal notices (present in repository snapshot)

Main modules & dependencies

---

The Java module descriptor (module-info.java) declares dependencies used by the project:

• requires javafx.controls
• requires javafx.fxml
• requires javafx.web
• requires org.controlsfx.controls
• requires com.dlsc.formsfx
• requires net.synedra.validatorfx
• requires org.kordamp.ikonli.javafx
• requires org.kordamp.bootstrapfx.core
• requires eu.hansolo.tilesfx
• requires com.almasb.fxgl.all

If you don't want to use all third-party libraries, the core experience should still work with JavaFX modules (controls and fxml), though some UI enhancements might require installing/adding these libraries on the module path.

Usage / What each part does

---

• AlgoMania (main) — Presents a dashboard with options for Graphs, Sorting, and Data Structures. Click the Data Structures panel to launch the Data Structures Visualizer.
• DataStructuresVisualizer — Choose a structure (Array, SLL, DLL, Stack, Queue, Heap, BST). Use the control panel to insert, delete, search, peek, or perform indexed operations where supported.
• Graph Visualizer — Create graphs from text input or through interactive canvas operations. Tools exist for mode management (add/remove nodes, connect edges) and a control panel for running or simulating graph algorithms.
• Sorting Simulator — Visualize sorting algorithms step-by-step (sorting algorithms are implemented in the sorting package).

Developer notes & tips

---

• Resource paths: The repository contains code that loads images with absolute Windows paths (e.g., "C:\Users\hp\Desktop\AlgoMania..."). To make the app portable, change the code to load resources from the classpath (use getResource or resource streams). Example: Image icon = new Image(getClass().getResourceAsStream("/edu/buet/shayan/algomania/images/main_icon.png"));
• Modules: The project uses Java modules. When running from IDE or CLI, ensure JavaFX jars are on the module path and not just the classpath.
• Common runtime VM args:

  --module-path /path/to/javafx-sdk-24.0.1/lib --add-modules=javafx.controls,javafx.fxml,javafx.web


• If you add a build system (Maven/Gradle), use the OpenJFX artifacts (org.openjfx:javafx-*) for your platform, or configure the JavaFX SDK plugin.
• Packaging: If you wish to distribute a native installer, consider jlink or jpackage (both require module-awareness and proper module configuration).

Contributing

---

Contributions are welcome. A suggested workflow:

1. Fork the repository.
2. Create a feature branch (e.g., feature/fix-resource-paths).
3. Make changes with clear commit messages.
4. Open a pull request describing the change purpose and testing steps.

Guidelines:

• Maintain consistent code style used in the repository (Java 11+/module conventions).
• Prefer loading UI resources from the classpath (relative paths) for portability.
• If adding third-party libraries, update module-info.java and document any required VM arguments.

Known issues & common fixes

---

• Missing JavaFX runtime / NoClassDefFoundError: Ensure JavaFX SDK path is set and included with --module-path and --add-modules flags.
• Images not appearing: Fix absolute paths and use resources bundled in JAR or module resources.
• If running on a different OS, ensure you use the correct JavaFX binaries for your platform (Linux/Windows/macOS).

License & acknowledgements

---

• License: MIT License
• Acknowledgements:
  • JavaFX for UI rendering
  • ControlsFX, FormsFX, ValidatorFX, Ikonli, BootstrapFX, TilesFX, FXGL referenced in module-info for enhanced UI components. See module-info.java for the full list.

Contact

---

If you'd like to collaborate or report issues, open an issue in the repository or reach out via GitHub: https://github.com/ShadmanSShuvo

---

Quick checklist to get the project running locally

1. Install JDK (17+ recommended).
2. Ensure JavaFX SDK is present (the repository has a javafx-sdk-24.0.1 folder in this snapshot).
3. Update resource/image loading code to use classpath resources (recommended).
4. Launch edu.buet.shayan.algomania.AlgoMania with JavaFX module arguments in your IDE or from the CLI.

Enjoy exploring algorithms visually with AlgoMania!
