Summary

Follow-up on the plan Improve Issues editor and Plan editor (https://tryluke.dev/stage/plan/675f8e6b-8ab5-4c81-bbcf-ed20dd63ceb7). The developer saw that the issue page's editor was only as wide as the title, and asked that it use the plan's width and reuse the plan's pieces so the two feel the same.

The bug. #3642 moved the issue page onto @luke/ui's DetailPage and put its body in .desktop-document > .plan-body. .desktop-document is a flex column and .plan-body centres itself with auto margins, so the body shrank to its widest line. An issue with no description stood only as wide as its title (244px in the harness). One with text stopped at 710px instead of the plan's 720px, under a 16px top gap instead of the plan's 40px, and with no faded edges.

The fix: one document frame, shared (tasks/document-frame.tsx):

  • DocumentScroll is the plan's own scrolling column (.plan-document-scroll.scroll-fade). It sets the page inset, the room under the last line, the faded edges, selectable words, and Luke's accent. The plan, a version, the version skeleton, and now the issue and its reading skeleton all use it, and editor-pictures finds its scroller by the same class constant.
  • DocumentByline is the line under the title: "Created by [face] name · 3d ago", then the page's own phrase for the last edit. The plan's byline and the issue's byline both use it, and the duplicate .issue-byline CSS is gone.
  • The issue page (IssueDocumentPage in issue-detail.tsx) is now the toolbar over .desktop-document > DocumentScroll > .plan-body, the same structure a plan uses, so the title, byline, and text stand at the plan's 720px measure and 40px inset. The reading skeleton stands in the same frame, so the issue lands where its blocks stood. The "This issue is gone" / "could not be read" state keeps DetailPage's centred ErrorState.
  • The description at rest is a plan block (plan-document-block, the plan's cursor and focus tint). It is drawn a section at a time, as plan sections are, so its sections stand the plan's 1.5em gap apart (.document-sections). This is also the gap the editor stands them at, so opening the editor no longer moves the text. The issue-only focus-tint CSS is gone.
  • Under the editor, a refused save, an over-long text, or an editor that failed to load now uses the plan's own note (.plan-editor-note). A refused save gets the plan's Retry button, which sends the words again. The red .issue-description-refused style is gone.

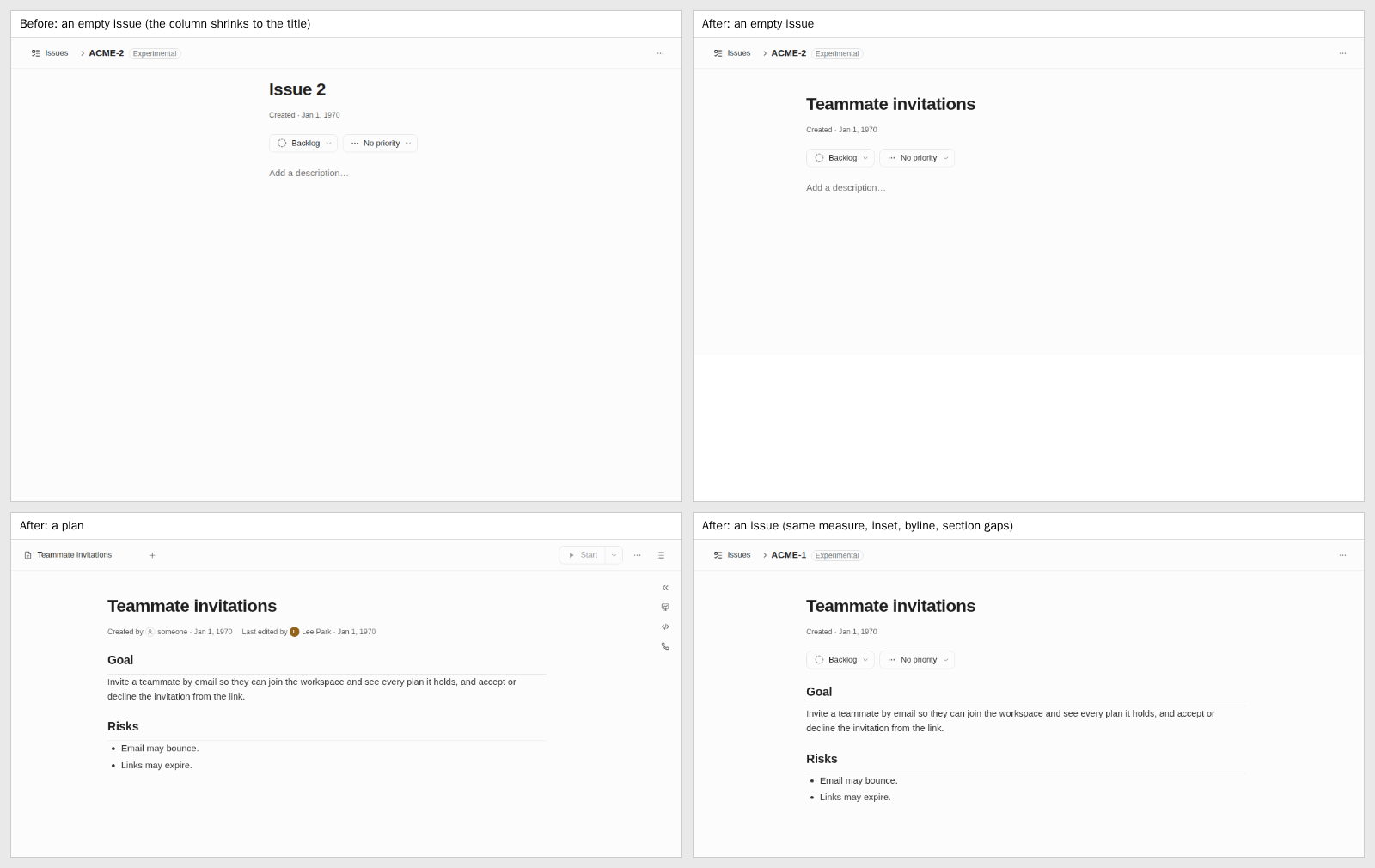

Before and after: an empty issue, a plan, and an issue

Evidence

  • Layout: the real pages were rendered by a throwaway jsdom test, painted by Chromium at 1100px with the desktop stylesheet built from this branch, and then measured. Plan: title and body at 720px wide, top at 91px. Issue before: 710px, top 67px, and 244px when the description was empty. Issue after: 720px and top 91px with or without a description. The gap between sections is the same as the plan's (Goal → Risks 110px in the issue vs 109px in the plan).
  • pnpm exec vitest run --project desktop: 218 files, 2115 tests passed.
  • New tests in issues-page.test.ts:
    • The issue's document stands in a plan's own column and body.
    • The reading blocks stand in that column.
    • The description is drawn a section at a time.
    • Retry under a refused save sends the words again.
  • tsc for the desktop app, pnpm lint, pnpm knip, and pnpm discarded-effect all exit 0. discarded-effect was run alone because of the sandbox's memory.

Invariants

  • ./scripts/check.sh green. (CI)
  • JSON Schema goldens unchanged.
  • Every behavior change has, in this PR, the test that fails without it; no change-detector test added. The width itself is CSS that jsdom can't lay out, so the measurements above are its evidence.
  • Gateway envelope goldens unchanged.
  • No new as type assertion outside the allowlisted files.
  • No Effect.runPromise/runSync/runFork outside the runtime edges.
  • No new setTimeout/setInterval/new Promise/AbortController/fs.watch.
  • No Effect, Stream, or Layer written as a statement and dropped.
  • Test count: issues-page.test.ts 69 → 73.
  • Each hand-rolled copy this replaces is deleted: .issue-document, .issue-byline, .issue-description focus tint, .issue-description-refused.
  • Every CLAUDE.md/AGENTS.md sentence naming a changed part is edited (none name it).
  • PRIVACY.md unchanged.
  • Package deps unchanged.
  • Barrel/door rule unaffected.

Notes

Made with Luke


Devin Review

View guided diff Turn on auto-fix

@vercel

vercel Bot commented Oct 18, 2026 •

Copy link
Copy Markdown

The latest updates on your projects. Learn more about Vercel for GitHub.

Project Deployment Actions Updated
luke-web Ready Ready Preview Oct 18, 2026 8:23pm UTC

Request Review

luke-agent Bot added a commit that referenced this pull request Oct 18, 2026
Co-authored-by: luke-agent[bot] <339870089+luke-agent[bot]@users.noreply.github.com>
@luke-agent
luke-agent Bot enabled auto-merge October 18, 2026 20:11
dastratakos and others added 2 commits October 18, 2026 20:16
An issue's page drew its document inside DetailPage's main column, where
the body, a flex child with auto margins, shrank to its widest line: an
issue with no description stood only as wide as its title. It now scrolls
in the column every document of the window does (DocumentScroll), so it
stands at the plan's 720px measure and 40px inset with its edges faded.

The parts the plan and the issue drew apart now come from one place: the
column (DocumentScroll, also used by the plan, its versions, and the
version skeleton), the line under the title (DocumentByline), and the
description at rest, which is a plan block drawn a section at a time at
the plan's section gap, with the plan's note and Retry under its editor.
The issue-only copies of that CSS are gone.

Co-authored-by: luke-agent[bot] <339870089+luke-agent[bot]@users.noreply.github.com>
Co-authored-by: luke-agent[bot] <339870089+luke-agent[bot]@users.noreply.github.com>
