Portable-display-driver

Intro

A lightweight, cross-platform display driver library for embedded devices, written in portable C11. The driver targets I2C framebuffer displays (e.g. SSD1306 / SH1106, 128×64) and is hardware-agnostic - all platform I/O is supplied by the application through function pointers, making it portable across any MCU or operating system. The repository ships with a ready-made STM32F1 port as a reference implementation, as well as a native Linux simulation port built on top of SDL2 for desktop development, testing and debugging without physical hardware.

Design

This library is designed in a layered manner:

+-------------------+
|    application    | - Embedded application that draws to the display
+-------------------+
          ^
          |
+-------------------+
|      driver       | - Display driver: framebuffer + API, cross-platform (driver/)
+-------------------+
          ^
          |
+-------------------+
|       port        | - Platform port: user configurable, depends on hardware (port/)
+-------------------+

The driver layer provides a unified API that remains identical across all supported platforms. It owns an in-RAM framebuffer (128 * 64 / 8 = 1024 B); all drawing operations (display_clear, display_draw_pixel, display_putc, display_puts) modify only that local buffer, and a single display_update() flushes it to the panel.

All hardware interaction is abstracted behind a small set of function pointers held in a struct display_device:

Callback	Description
i2c_write	Transmit a raw byte buffer over I2C to the display
i2c_write_cmd	Transmit a single command byte over I2C
delay_ms	Block for N milliseconds
get_tick_ms	Optional: return a millisecond tick counter

The port layer connects a specific platform to the driver by implementing those callbacks.

Reference ports are provided for:

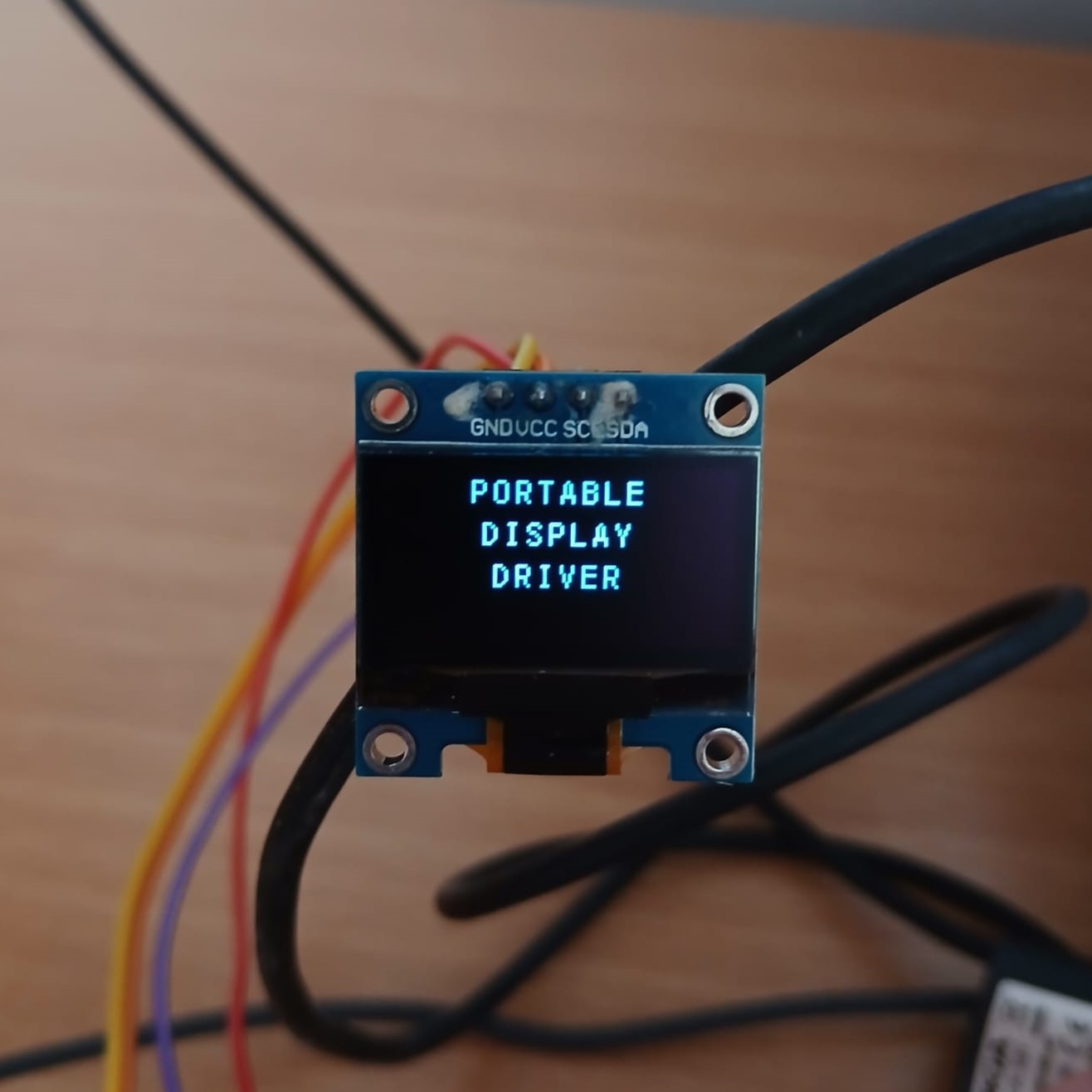

• STM32F1 (port/stm32/f1/) – built on top of the ST HAL and intended for deployment on real hardware.

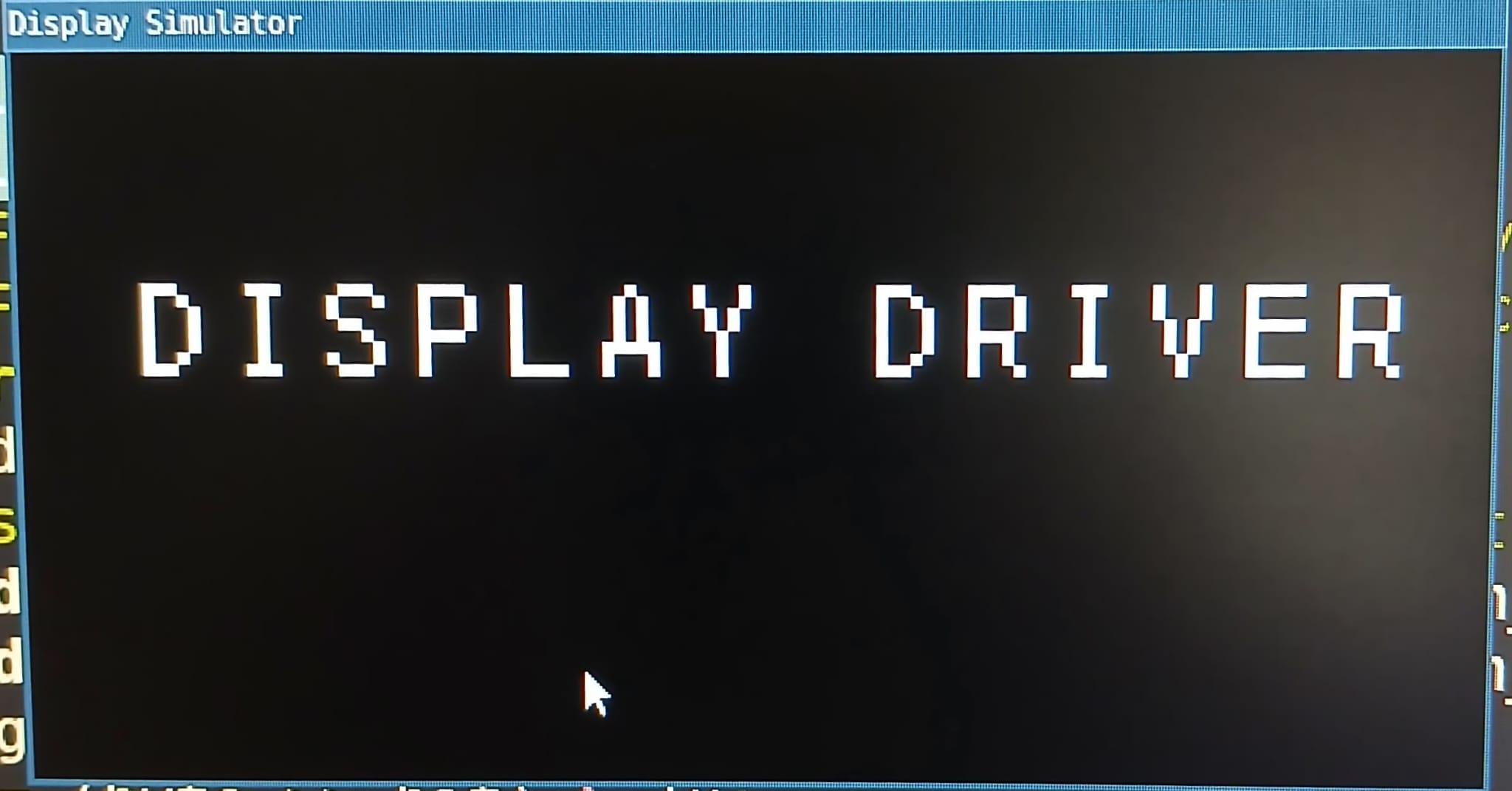

• Native Linux Simulator (port/native_sim/) – built on top of SDL2 and intended for desktop development and testing.

The native simulator implements the same callback interface expected by the driver, emulates SSD1306 page/column addressing in software and renders the display framebuffer into an SDL2 window. This allows applications to be developed and debugged on a desktop machine before running on embedded hardware.

Driver API

#include "display.h"

/* Lifecycle */
enum display_status display_init(display_t *disp);
enum display_status display_on(display_t *disp);
enum display_status display_off(display_t *disp);

/* Low-level I/O */
enum display_status display_send_command(display_t *disp, uint8_t cmd);

/* Framebuffer */
enum display_status display_clear(display_t *disp);   /* clears local buffer  */
enum display_status display_update(display_t *disp);  /* flushes to the panel */

/* Drawing */
void display_draw_pixel(display_t *disp, uint16_t x, uint16_t y);
void display_putc(display_t *disp, char c, uint16_t x, uint16_t y);
void display_puts(display_t *disp, const char *str, uint16_t x, uint16_t y);

Every operation returns an explicit status code:

Status	Meaning
DISPLAY_SUCCESS	Operation completed successfully
DISPLAY_ERROR	Generic I/O error
DISPLAY_BUSY	Device is busy
DISPLAY_TIMEOUT	Operation timed out
DISPLAY_ENODEV	Device handle is NULL
DISPLAY_EINVAL	Invalid argument

Note: display_clear and the drawing functions only touch the in-RAM framebuffer. Nothing appears on the panel until you call display_update().

Porting the Library

To bring the driver up on a new platform, implement the callbacks of struct display_device and populate a display_t instance.

Header (my_port.h):

#include "display.h"

enum display_status i2c_write(void *ctx, uint8_t addr, uint8_t *data, uint16_t size);
enum display_status i2c_write_cmd(void *ctx, uint8_t addr, uint8_t cmd);
void     delay_ms(void *ctx, uint32_t ms);
uint32_t get_tick_ms(void *ctx);

Wiring it up in the application:

display_t disp = {
    .address = 0x3C,            /* 7-bit SSD1306 address */
    .width   = DISPLAY_WIDTH,
    .height  = DISPLAY_HEIGHT,
    .dev = {
        .context       = &my_ctx,   /* passed back to every callback */
        .i2c_write     = i2c_write,
        .i2c_write_cmd = i2c_write_cmd,
        .delay_ms      = delay_ms,
        .get_tick_ms   = get_tick_ms,
    },
};

display_init(&disp);
display_clear(&disp);
display_puts(&disp, "Hello, world!", 0, 0);
display_update(&disp);

See port/stm32/f1/stm32f1x_display_port.c for a complete STM32F1 reference port built on the ST HAL (HAL_I2C_Master_Transmit, HAL_Delay, HAL_GetTick).

Native Linux Simulator

The native Linux simulator provides a desktop implementation of the port layer using SDL2. It implements the same callback interface used by embedded targets, allowing applications built against the driver API to run unmodified on Linux.

Internally, the simulator emulates the SSD1306 command and addressing model, maintains a software framebuffer and renders its contents into an SDL2 window.

Features:

• SDL2-based display rendering
• SSD1306 page and column addressing emulation
• Display ON/OFF command support
• Normal and inverted display modes
• Portable timing implementation (clock_gettime(), nanosleep())
• Useful for development, debugging and demonstrations without hardware

The simulator uses the same driver API and callback model as embedded targets, making it possible to develop and validate application code on a desktop machine before deploying it to a microcontroller.

Building

The core driver always builds as a standalone static library; platform ports are gated behind CMake options.

cmake -S . -B build -G Ninja
cmake --build build

To also build the STM32F1 port (requires an ARM toolchain and the ST HAL on your include path):

cmake -S . -B build -G Ninja -DDISPLAY_BUILD_STM32F1_PORT=ON
cmake --build build

To build the native Linux simulator (requires SDL2):

cmake -S . -B build -G Ninja -DDISPLAY_BUILD_NATIVE_SIM=ON
cmake --build build

CMake target	Description
portable_display_driver	Core, platform-independent driver (always built)
display_port_stm32f1	STM32F1 reference port (-DDISPLAY_BUILD_STM32F1_PORT=ON)
display_port_linux	Native Linux SDL2 simulator (-DDISPLAY_BUILD_NATIVE_SIM=ON)

License

The bundled font tables (driver/fonts.c, driver/fonts.h) originate from the Majerle/Lutsai LCD font library and are licensed under the GNU GPLv3. The fonts have been slightly modified for integration into this project (format adjustments and portability changes), but remain GPLv3-licensed.
