One stream in, four sportsbook-grade products out.
Real-time event JSON · multimodal search · LLM-grounded Q&A · 9:16 reels to Telegram.
All powered by VideoDB.

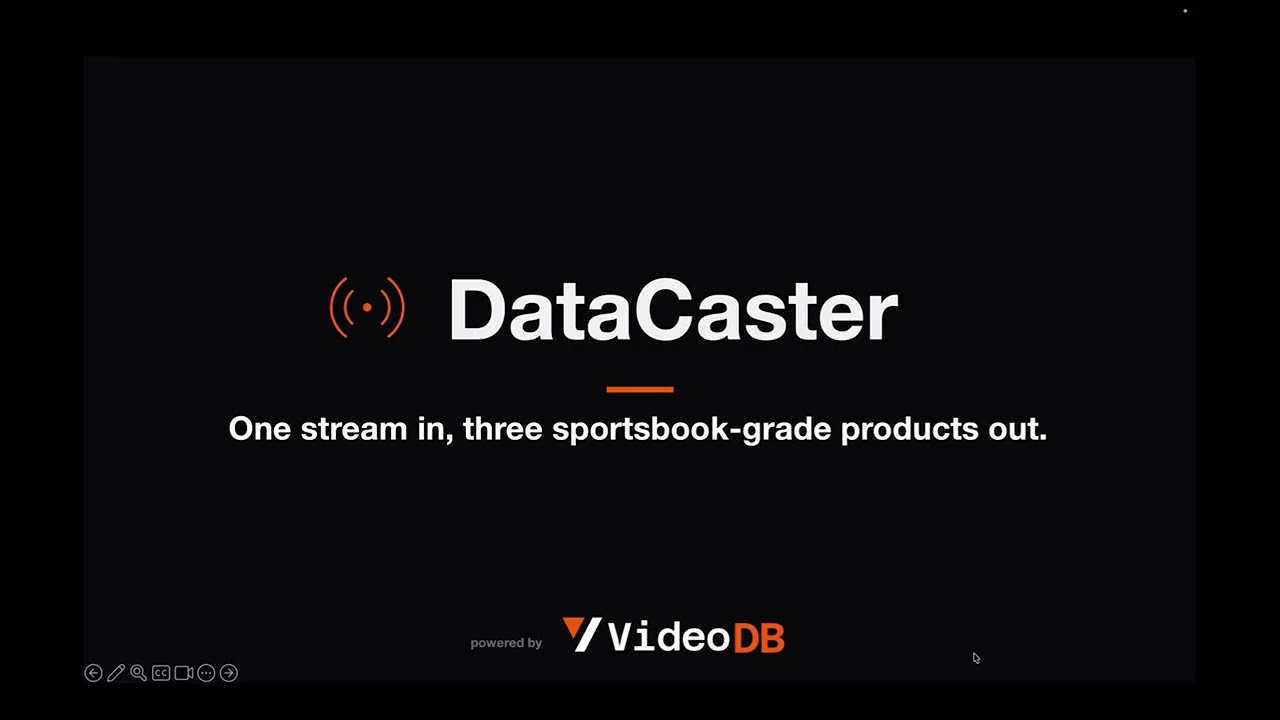

▶ Click to watch the 6 min demo on YouTube
DataCaster automates manual football scouting. Point it at a YouTube VOD or a live RTSP/RTMP feed and one VideoDB pipeline emits four surfaces:
- Structured event JSON — goals, saves, cards, corners with confidence + team labels, cached by
video_id, streamed via SSE. - Multimodal search — visual (scene index), transcript (spoken-word), and audio (RTStream only).
- LLM-driven Ask —
generate_textrewrites → multi-rail search → composes a scout answer with[MM:SS]citations. - 9:16 reel → Telegram — one click composes a vertical highlight reel + recap caption, delivered via Bot API.
9:16 reel + auto-generated recap posted to Telegram.
Two classifier modes ship: football (default) and describe (generic scenes).
YouTube VOD / RTSP URL ┌─────────────────────────────────┐
──────────────────────────▶ │ VideoDB collection │
│ coll.upload(media_type=video) │
│ video.index_scenes(prompt) │
│ video.index_spoken_words │
└─────────────┬───────────────────┘
▼
poll_scene_index_forever
▼
┌──────────────────────┬──────────────────────┐
▼ ▼ ▼
┌──────────────────┐ ┌─────────────────────┐ ┌──────────────────────┐
│ Structured event │ │ Multimodal search │ │ LLM-driven Ask + │
│ feed (SSE/JSON) │ │ visual + transcript│ │ Telegram reel │
└──────────────────┘ └─────────────────────┘ └──────────────────────┘
- Backend — FastAPI with async workers (VOD scene-poller, JSONL tailer for RTStream, commentary worker, highlight indexer)
- Frontend — React 18 + Vite + TypeScript + Tailwind v4 + shadcn/ui
- Persistence — SQLite at
./data/datacaster.db, bind-mounted into the backend container so the per-video_idevent cache survives everymake rebuild - Sandbox — registered in a sidecar file; released on
/api/end_session, lifespan shutdown, SIGTERM, and startup orphan sweep
For the longer version, see docs/ARCHITECTURE.md.
DataCaster/
├── backend/ FastAPI app
│ ├── main.py entry point, lifespan workers + sandbox sweep
│ ├── pipeline.py VideoDB connection + sandbox + RTStream + indexes
│ ├── vod.py VOD scene-poll worker (resume-aware)
│ ├── classifier.py JSONL tailer for RTStream
│ ├── search.py LLM-driven Ask + multimodal search routing
│ ├── commentary.py generate_voice + autonomous commentary worker
│ ├── highlights.py Timeline composer (highlights + 9:16 reels)
│ ├── telegram.py Bot API delivery client
│ ├── sandbox.py sidecar-tracked orphan sweeper
│ ├── prompts.py VISUAL_FOOTBALL / VISUAL_DESCRIBE / commentary
│ ├── db.py aiosqlite (events, commentary, highlights)
│ ├── events_bus.py in-process pub/sub for SSE fanout
│ ├── source.py file/url/youtube dispatcher (+ reuse fast path)
│ ├── config.py runtime config
│ ├── bootstrap.py dotenv + SIGTERM handler (must import first)
│ └── routes/ FastAPI routers
├── frontend/ React 18 + Vite + TypeScript + Tailwind v4
├── scripts/ helper scripts (ws_listener, sandbox utilities)
├── docs/ ARCHITECTURE / API / OPERATIONS / SANDBOX / …
├── docker-compose.yml bind-mounts ./data/datacaster.db
├── Makefile convenience targets (up, down, rebuild, logs, …)
├── requirements.txt hackathon-branch videodb + FastAPI + workers
└── test-datacaster.py end-to-end test runner (7 phases)
Prerequisites: Docker Desktop, a VideoDB API key (get one at console.videodb.io).
git clone https://github.com/sahil-sharma-50/DataCaster.git
cd DataCaster
cp .env.example .env
# Edit .env and set VIDEO_DB_API_KEY=...
# Optional: TELEGRAM_BOT_TOKEN + TELEGRAM_CHAT_ID for reel delivery
docker compose up -d
# → http://localhost:3000 (frontend)
# → http://localhost:8000 (backend API)That's it. Two containers (frontend + backend). The Makefile wraps the common operations:
make up # docker compose up -d
make logs # tail both services
make rebuild # no-cache rebuild + restart (use after code changes)
make down # stop everything
make smoke # quick health checkOpen http://localhost:3000, pick a source (YouTube VOD or live RTSP/RTMP URL), click Start, and watch events stream in.
./data/datacaster.db is bind-mounted into the backend, so cached events survive every rebuild. Click Resync in the UI to force a fresh classification, or delete ./data/datacaster.db to wipe everything.
# Backend (terminal 1)
python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
cp .env.example .env # set VIDEO_DB_API_KEY
uvicorn backend.main:app --reload # → :8000
# Frontend (terminal 2)
cd frontend && npm install && npm run dev # → :3000 with /api proxied to :8000Set in .env — see .env.example for the full template.
| Variable | Default | What it does |
|---|---|---|
VIDEO_DB_API_KEY |
required | Your VideoDB API key |
USE_SANDBOX |
false |
When true, allocates a hackathon sandbox per session and routes voice + LLM through model_name="ultra". When false, falls back to VideoDB free-tier defaults + model_name="basic". |
SANDBOX_TIER |
medium |
small ($1/hr, 4 slots) or medium ($3.50/hr, 3 slots). Small is more reliable on the hackathon infra. |
VISUAL_MODEL |
google/gemma-4-31B-it |
RTStream-only — model for rt.index_visuals. VOD video.index_scenes uses VideoDB's default model. |
AUDIO_MODEL |
Qwen/Qwen3.5-9B |
RTStream-only — model for rt.index_audio. |
VOICE_MODEL |
k2-fsa/OmniVoice |
TTS for commentary, sandbox-routed via coll.generate_voice. |
TELEGRAM_BOT_TOKEN |
unset | Bot token from @BotFather. Required for reel delivery. |
TELEGRAM_CHAT_ID |
unset | Numeric chat id (DM @userinfobot to find it). |
End-to-end test runner exercises every public surface across seven phases.
python test-datacaster.py --phase A # idle assertions (<10s, no API spend)
python test-datacaster.py --phase B # football VOD run (~4 min, paid)
python test-datacaster.py --phase C # describe-mode VOD run (~3 min)
python test-datacaster.py --phase D # frontend bundle reachability
python test-datacaster.py --phase E # live RTStream ingest (~3 min)
python test-datacaster.py --phase F # Telegram delivery probe (~5s)
python test-datacaster.py --phase G # sandbox lifecycle (~30s+)
python test-datacaster.py # full run (~16 min)Phase F's T29 (live sendMessage) is gated behind DATACASTER_TELEGRAM_LIVE=1 so test runs don't spam the chat. Set the flag for an actual end-to-end smoke.
| Doc | What's in it |
|---|---|
docs/ARCHITECTURE.md |
System shape, data flow, pipeline lifecycle, every VideoDB primitive used |
docs/API.md |
Reference for every /api/* endpoint (request payloads, response shapes, SSE message types) |
docs/OPERATIONS.md |
Day-to-day operations: knobs, state files, persistence, pre-submission checklist |
docs/CLASSIFIER_TUNING.md |
The classifier prompt + threshold config |
docs/TROUBLESHOOTING.md |
Symptom-first playbook for sandbox / classifier / Ask failures |
docs/SANDBOX.md |
VideoDB hackathon SDK reference (install, lifecycle, models, every workload API) |
docs/DEMO_SCRIPT.md |
90-second screenplay for the submission video |
SUBMISSION.md |
Hackathon submission entry — 200-word description + primitive checklist |
| Primitive | Where |
|---|---|
coll.upload(url, media_type="video") |
backend/source.py |
coll.get_video(id) |
backend/source.py (reuse fast path) |
coll.get_videos() |
backend/routes/lifecycle.py (catalog dropdown) |
coll.connect_rtstream(...) + rt.index_visuals + rt.index_audio + rt.start_transcript |
backend/pipeline.py |
video.index_scenes(extraction_type=time_based, prompt=…) |
backend/pipeline.py |
video.index_spoken_words(force=True) |
backend/pipeline.py |
video.get_scene_index(id) |
backend/vod.py (poll loop) |
video.delete_scene_index(id) |
backend/pipeline.py (Resync) |
video.generate_stream() |
backend/pipeline.py |
video.search(query, search_type=semantic, index_type=scene|spoken_word) |
backend/search.py, backend/highlights.py |
coll.search(namespace="rtstream", index_type=scene|audio|spoken_word) |
backend/search.py (live path) |
coll.generate_text(prompt, model_name="basic"|"ultra") |
backend/search.py, backend/highlights.py, backend/commentary.py |
coll.generate_voice(text, model_name="k2-fsa/OmniVoice", sandbox_id, config) |
backend/commentary.py |
Timeline + VideoAsset + Track + generate_stream() |
backend/highlights.py (highlights + 9:16 reels) |
conn.create_sandbox(tier) lifecycle |
backend/pipeline.py (with sidecar tracking) |
conn.get_sandbox(id).stop() |
backend/sandbox.py (orphan sweeper) |
Built solo for the VideoDB Global Online Hackathon, May 2026.
