Events panel shows its rows when docked in the rail - #776
Merged
Merged
Conversation
At rail width the full row's fixed columns overflowed, the header's last label wrapped a letter to a line, and the table was left one row high. A pane too narrow for the full row now draws rows the way the Inspector does in the same rail. Fixes #771
A13xB0
force-pushed
the
fix-771-events-rail
branch
from
October 24, 2026 19:36
8fdf51f to
c49785b
Compare
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Fixes #771.
At rail width (~340 dp) the full row's fixed columns (time, two names at 130, SNR, pill) were already wider than the pane. The "What happened" header label got no width and wrapped one letter per line, making the header ~180 px tall, so the table was left a strip one row high.
When the pane is narrower than the full row needs, rows are now drawn the way the Inspector draws them in the same rail: names share the space, a dot for the type, no detail. The header label can't wrap any more. Popped out or full-window, nothing changes.

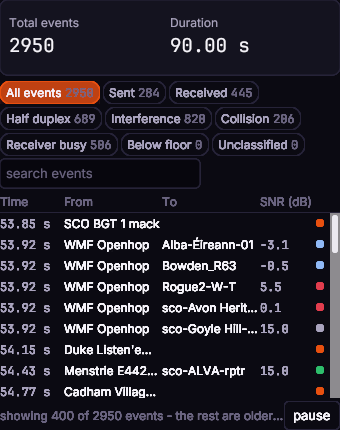

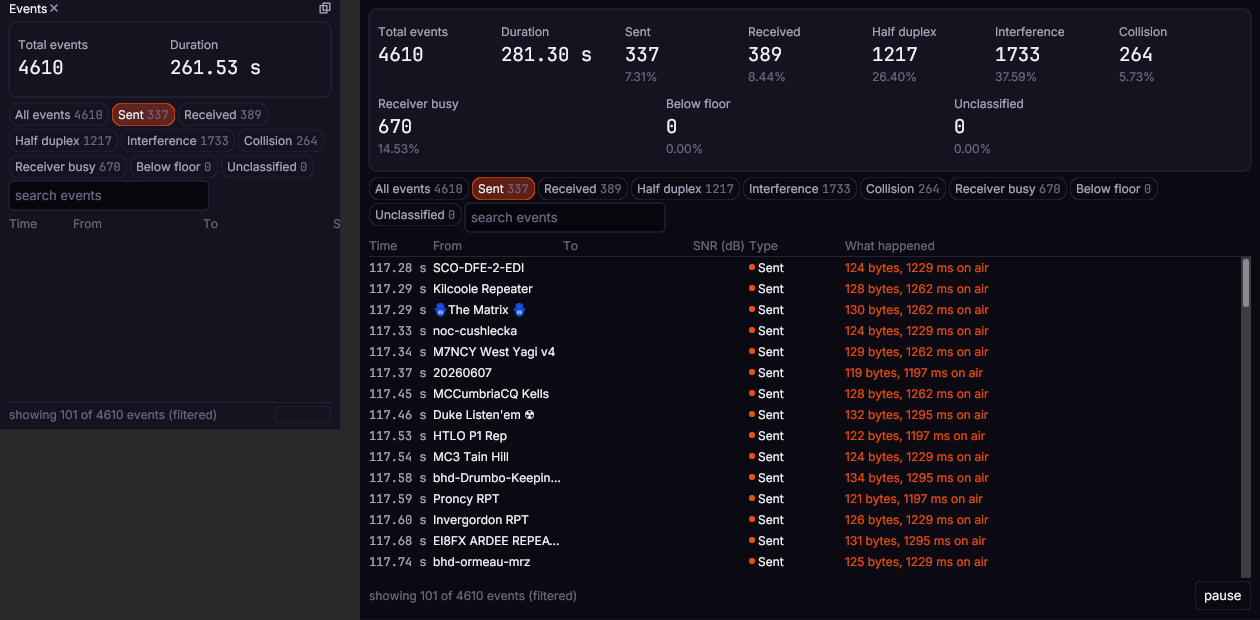

Before / after at 340×430. The after image is drawn from a real 90 s fife-strict run's event log, not test data:
