A searchable image chooser, and a Create button that reflects what is missing - #244
Open
kacperpaczos wants to merge 5 commits into
Open
A searchable image chooser, and a Create button that reflects what is missing#244kacperpaczos wants to merge 5 commits into
kacperpaczos wants to merge 5 commits into
Conversation
Creating a box already accepts a custom home directory, but it is a bare path field: nothing says what it changes, and anyone using it for more than one box has to remember the paths and retype them. A profile is that directory with a name on it. The primary menu gains a Profiles window listing them, each with the directory it points at, a Browse button that opens it in the file manager, and Remove. Adding one takes a name and puts the directory under ~/boxes; the directory itself is created when it is first needed rather than up front, since distrobox makes it when a box is built and Browse makes it when someone looks. The new-box form gets a Profile combo listing "Host (shared home)" first, then the profiles. Picking one fills in the home path; picking Host clears it, which is distrobox's own default and what every existing box uses. The folder picker still works for a one-off path, and the value handed to distrobox is unchanged - so this is a way of choosing the existing option, not a new mechanism. Profiles live in GSettings as a name-to-path map, the way exported-app labels do. Removing one forgets the setting only: the directory and any box already built on it are left alone.
The first version of this left the Home Directory entry and its folder button in place beside the new Profile combo, with the combo writing into the entry. Two controls for one setting, and nothing said which of them won - the field even kept its "Leave blank for default" label while the combo was the thing actually deciding. The row is now the only control. Its choices are Host (shared home), the profiles, and Custom folder…, which opens the same folder chooser as before; the chosen directory shows as the row's subtitle, so the path is still visible. Cancelling the chooser falls back to Host rather than leaving the row claiming a folder nobody picked. What is lost is typing a path by hand, which the entry allowed. In a graphical form a folder chooser is the better way to name a directory, and the alternative was keeping an ambiguity in the interface to preserve it.
A box gave no sign of which home it was on, so the one thing a profile decides was invisible once the box existed. Its page now opens with a Profile row - a fact about the box, not a button - naming the profile whose directory the box uses, or the host, or the bare path when it belongs to no profile. The home comes from the container's own metadata, so nothing has to be started to read it. The new-box form's Profile row gains a "New profile…" entry, so a profile can be made at the moment it is wanted rather than in a separate window first. It asks for a name, stores the profile under ~/boxes, and selects it. Two things that needed care: putting the selection back from inside the row's own notify handler does not stick, because GTK is still applying the change being reacted to - it is deferred to the main loop instead, so a cancelled dialog never leaves the row sitting on "New profile…". And the label logic is a pure function taking the host home and the profile list, so it can be tested without touching GSettings.
distrobox offers 122 images here. They all went into one dropdown, which cannot be read: you cannot tell an Ubuntu from an Alpine without going through every line, and nothing says which are already on the machine. The Image row now opens a chooser: a search box, one filter per package manager, and a "Downloaded only" switch, with a count of what is showing. Each row carries the image URL and who publishes it - Docker Official, Fedora Project, Red Hat, the GitHub or Quay organisation, or failing all that the registry itself - worked out from the URL alone, so opening the window costs nothing and touches no network. The package-manager filter reuses detect_pkg_manager rather than a second list of distro names. The Create button was enabled by the name field alone, though creating also needs an image, so clicking it with no image chosen did nothing and explained nothing - a trap a user escapes by filling in unrelated fields. It now needs both.
`make lint` runs clippy, and the strings added here tripped needless_borrows_for_generic_args - gettext takes anything that converts into a String, so the format! result can go in as it is. Only the lines this branch introduced are touched; the same pattern elsewhere in the file predates it and is left alone.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Stacked on #241, which the branch is cut from.
distrobox create --compatibilitylists 122 images on this machine, and they all went into a singlegtk::DropDown. That is not a list anyone can read: you cannot tell an Ubuntu from an Alpine without going through every line, and nothing says which images are already pulled.The chooser

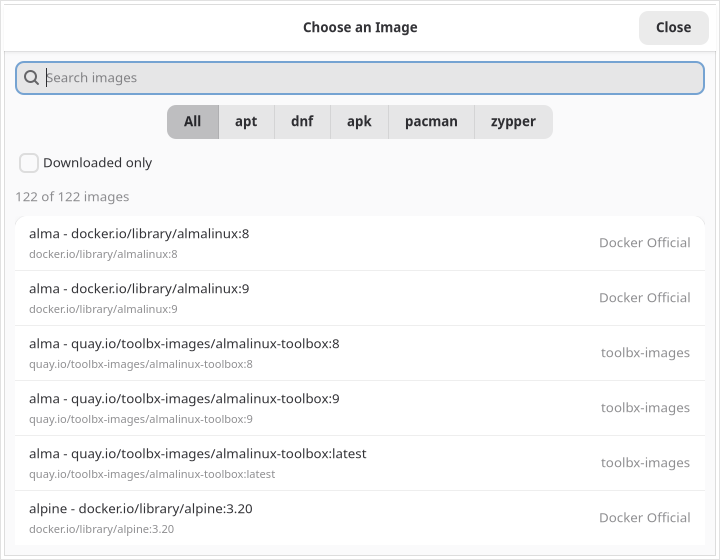

The Image row opens a window with a search box, one filter per package manager, a Downloaded only switch, and a count of what is showing. Each row keeps the entry as the existing
get_available_images_with_distro_nameformats it (including its ✦ mark for an image already on the machine), with the URL as subtitle and the publisher on the right.The publisher comes from the URL alone -
docker.io/library/*is Docker Official,registry.access.redhat.comis Red Hat,ghcr.io/<org>andquay.io/<org>give the organisation, and anything unrecognised falls back to the registry host. No network calls: opening the window costs nothing, and there is no invented "quality score" - just who publishes it, whether it is already downloaded, and which package manager it uses.The package-manager filter reuses
detect_pkg_managerrather than introducing a second list of distro names. Images it cannot classify appear only under "All". Turning every filter off is refused, so the list cannot go blank with no way back.The Create button
Reported by a user, and worth fixing in the same change: the button was enabled by the name field alone, but creating also needs an image - so clicking it with no image chosen did nothing and said nothing. The way out a user finds is to start filling in unrelated fields; the one who reported it ended up pointing the folder chooser at a directory that never got used. It now needs both a name and an image, and the early return in the click handler stays as a backstop.
Testing

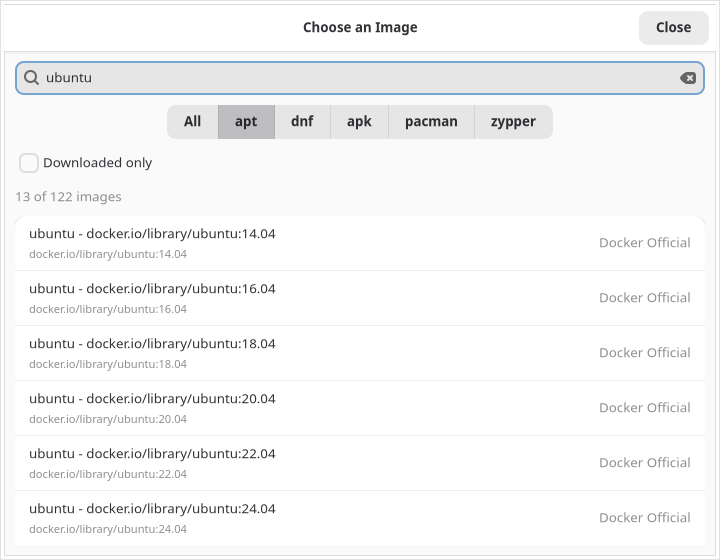

cargo test: 24 pass, including new ones onimage_publishercovering each registry branch and an input with no slash at all.On a virtual display, against the real 122-image list: the window opens showing "122 of 122 images"; the apt filter narrows it to 31; typing "ubuntu" on top of that gives 13; picking a row puts
ubuntu - docker.io/library/ubuntu:24.04in the Image row's subtitle. With an image chosen and the name empty the Create button stays insensitive, and typing a name enables it.The chosen value keeps the
"<distro> - <url>"shape the old dropdown produced, so the code that strips the prefix and the ✦ mark before handing the image to distrobox is untouched.
