🎙️ VoxBench

Empirical Text-to-Speech (TTS) Benchmarking Suite for Voice AI

Never blindly pick a speech model.
VoxBench is an automated, reproducible benchmarking platform designed to evaluate and compare leading Text-to-Speech (TTS) models under demanding real-world conversational and clinical IVR constraints.

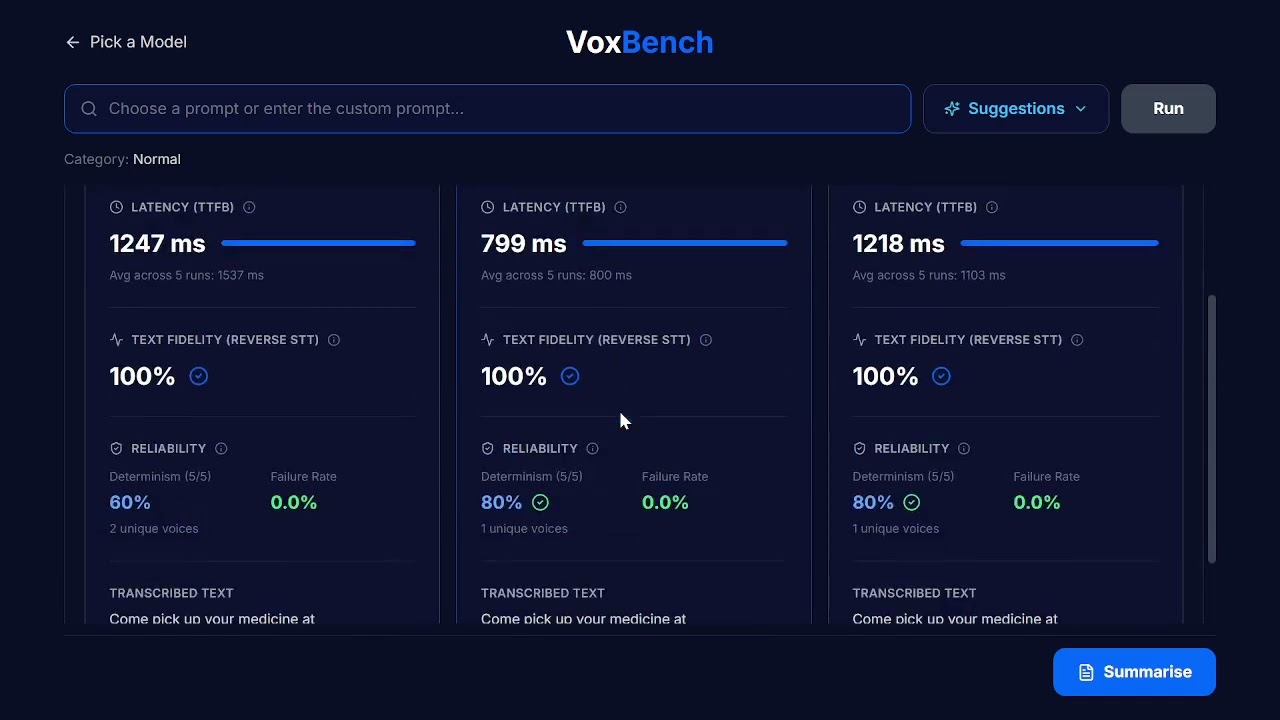

Demo Video

▶ Watch the VoxBench Demo Video

Repository: Download or clone VoxBench from GitHub

Architecture • Benchmarking Protocol • Supported Models • Quickstart • API Reference

---

📌 Problem Statement

Selecting a TTS engine for mission-critical voice applications (e.g., healthcare triage, pharmacy IVRs, automated customer support) is often driven by subjective demos or vendor latency claims tested in ideal scenarios. In production, voice engines suffer from:

1. Phonetic Hallucinations & Distortions: Stumbling on complex drug names (e.g., Azathioprine, Lisinopril), sound-alikes (Celebrex vs. Celexa), or decimal dosages (0.5mg heard as 50mg).
2. TTFB Latency Regressions: Variability in Time to First Byte (TTFB) that degrades conversational turn-taking.
3. Non-Determinism: Inconsistent pronunciation and voice pitch across repeated invocations of the exact same prompt.
4. Lack of Objective Auditing: Inability to inspect generated audio side-by-side with ground-truth reverse transcriptions.

VoxBench solves this by running controlled, parallel benchmarks across top TTS providers, validating output fidelity using Whisper STT, executing multi-run determinism stress-tests, and scoring models across speed, fidelity, controllability, and reliability.

---

🏗️ System Architecture

VoxBench employs a decoupled full-stack architecture designed for asynchronous evaluation, background queue processing, and low-latency audio delivery.

%%{init: {"theme": "base", "themeVariables": {"background": "#0b1018", "primaryColor": "#161f30", "primaryTextColor": "#e2e8f0", "primaryBorderColor": "#38bdf8", "lineColor": "#60a5fa", "secondaryColor": "#1e293b", "tertiaryColor": "#0f172a", "fontFamily": "Inter, Segoe UI, sans-serif"}}}%%
graph TD
    subgraph UI ["1. Presentation Layer (React 18 + Vite)"]
        A[Entry: Model Selection & Terms] --> B[Live Benchmark Arena]
        B --> C[Executive Summary & Insights Report]
    end

    subgraph API ["2. Gateway & Orchestration (Express 5 + TypeScript)"]
        D[Express Server: :5000]
        E[POST /api/benchmark/run]
        F[POST /api/benchmark/reliability]
        G[GET /api/fidelity/:session/:run/:model]
        H[GET /api/benchmark/audio/:session/:model/:run]
        D --> E
        D --> F
        D --> G
        D --> H
    end

    subgraph CORE ["3. Benchmark Engine & Dispatcher"]
        I[BenchmarkService]
        J[TTSService Adapter]
        K[FidelityQueue Worker: FIFO]
        E --> I
        F --> I
        I --> J
        I --> K
    end

    subgraph PROVIDERS ["4. Speech Synthesis Providers (External)"]
        L[Rime API: mistv2 / astra]
        M[ElevenLabs API: Flash v2.5 / Jessica]
        N[Deepgram API: Aura-2 / Thalia]
        J --> L
        J --> M
        J --> N
    end

    subgraph EVAL ["5. Audio & Reverse-STT Evaluation Pipeline"]
        O[OpenAI Whisper CLI / Engine]
        P[Levenshtein Distance & Accuracy % Engine]
        K --> O
        O --> P
    end

    subgraph STORE ["6. Persistence & Storage Tier"]
        Q[(SQLite3: db/voxbench.db)]
        R[Local Audio Store: audio_storage/]
        I --> Q
        I --> R
        K --> Q
        H --> R
    end

    %% Cross-layer interactions
    B -.->|Dispatch Benchmark| E
    B -.->|Trigger 5-Run Reliability| F
    B -.->|Poll Transcription & Score| G
    B -.->|Stream Audio Playback| H
    C -.->|Aggregate Metric Matrix| Q

Loading

---

🔬 Benchmarking Protocol

VoxBench grades every model run through four objective dimensions:

Dimension	Metric	Formula / Protocol	Why It Matters
1. Latency	TTFB (Time to First Byte)	Measured in milliseconds from HTTP request dispatch until the first audio byte chunk arrives via stream.	Determines human conversational naturalness and bot interruption latency.
2. Text Fidelity	Reverse-STT Accuracy	Audio is transcribed via OpenAI Whisper (base/tiny), normalized, and scored against ground truth via Levenshtein distance: Accuracy = max(0, 100 * (1 - distance / len(input)))	Verifies that medical dosages, clinical instructions, and names are correctly articulated without dropouts.
3. Reliability	Determinism	5 consecutive runs with identical parameters: Determinism = 100 * (1 - unique_transcriptions / 5)	Identifies whether model output fluctuates between calls or maintains consistent pronunciation.
4. Controllability	Parameter Range	Audit of speed range (0.5x–2.0x), pitch control, and phonetic/IPA pronunciation overrides.	Ensures system can handle patients requesting slower speech or regional accents.

---

🤖 Supported Models

Provider	Model ID	Voice ID	Style / Profile	Controllability Score
Rime (Primary Anchor)	mistv2	astra	Female, professional, neutral, sub-200ms latency profile	100 / 100
ElevenLabs	eleven_flash_v2_5	FGY2WhTYpPnrIDTdsKH5 (Jessica)	Female, conversational, natural cadence	75 / 100
Deepgram	aura-2	thalia	Female, clear medical cadence, streaming-first	60 / 100

---

💻 Tech Stack

Frontend

• Framework: React 18 with TypeScript
• Bundler: Vite 6
• Styling: Tailwind CSS (custom dark-mode palette, glassmorphism, responsive grid)
• Icons: Lucide React
• State Management: Session-backed local persistence (session.ts) with deterministic aggregator

Backend

• Runtime: Node.js (v18+) with Express 5
• Language: TypeScript 5
• Database: SQLite3 (WAL mode, parameterized queries, relational schema)
• Transcription / STT: Local OpenAI Whisper via Python/CLI with ffmpeg-static
• Audio Processing: Native Buffer streams & audio chunk caching

---

⚡ Quickstart Guide

Prerequisites

1. Node.js v18.0.0 or higher
2. Python 3.8+ with whisper installed:

   pip install -U openai-whisper

3. API Keys for:
   • Rime AI
   • ElevenLabs
   • Deepgram

---

Installation

1. Clone the repository

git clone https://github.com/Deepak-Kumbhar2006/VoxBench.git
cd VoxBench

2. Backend Setup

cd backend
npm install

Create a .env file inside backend/:

SERVER_PORT=5000
NODE_ENV=development

# Provider Credentials
RIME_API_KEY=your_rime_api_key
ELEVENLABS_API_KEY=your_elevenlabs_api_key
DEEPGRAM_API_KEY=your_deepgram_api_key

# Whisper Configuration (tiny / base / small)
WHISPER_MODEL=tiny
WHISPER_PYTHON=python

Start the backend server:

npm run dev

Backend runs on http://localhost:5000 (Health check at http://localhost:5000/health)

3. Frontend Setup

Open a new terminal:

cd frontend
npm install
npm run dev

Frontend opens at http://localhost:5173

---

📡 API Reference

GET /health

Verifies backend status and configuration readiness.

{
  "status": "ok",
  "timestamp": "2026-09-08T07:25:33.188Z"
}

---

POST /api/benchmark/run

Executes an initial single-run benchmark across selected models.

Payload:

{
  "text": "Your Lisinopril 10mg refill has been filled and is waiting for you.",
  "selectedModels": ["rime", "elevenlabs", "deepgram"],
  "category": "Normal"
}

Response:

{
  "sessionId": "4bda7cb6-2c4a-4cd6-b27d-24cfce1daf0b",
  "runId": "6ae2a0c3-d366-4fb3-9088-e1f6800714c7",
  "results": {
    "rime": {
      "ttfb": 182,
      "fidelityId": "6ae2a0c3-d366-4fb3-9088-e1f6800714c7_rime",
      "audioUrl": "/api/benchmark/audio/4bda.../rime/6ae2...",
      "fidelityStatus": "processing",
      "status": "success"
    }
  },
  "timestamp": "2026-09-08T07:20:11.000Z"
}

---

POST /api/benchmark/reliability

Runs 4 additional consecutive iterations to build a 5-run statistical sample for determinism and failure-rate analysis.

Payload:

{
  "sessionId": "4bda7cb6-2c4a-4cd6-b27d-24cfce1daf0b",
  "text": "Your Lisinopril 10mg refill has been filled and is waiting for you.",
  "selectedModels": ["rime", "elevenlabs", "deepgram"],
  "category": "Normal"
}

---

GET /api/fidelity/:sessionId/:runId/:model

Fetches reverse-STT accuracy, Levenshtein edit distance, and transcribed text.

Response:

{
  "model": "rime",
  "status": "completed",
  "transcribed": "Your Lisinopril 10mg refill has been filled and is waiting for you.",
  "accuracy": 100.0,
  "editDistance": 0,
  "startedAt": "2026-09-08T07:20:12.000Z",
  "completedAt": "2026-09-08T07:20:14.000Z"
}

---

GET /api/benchmark/audio/:sessionId/:model/:runId

Streams the generated .mp3 audio binary for in-browser playback and auditory inspection.

---

🗄️ Database Schema

VoxBench persists all benchmark telemetry in SQLite (backend/db/voxbench.db):

CREATE TABLE sessions (
  id INTEGER PRIMARY KEY,
  sessionId TEXT UNIQUE NOT NULL,
  createdAt DATETIME DEFAULT CURRENT_TIMESTAMP
);

CREATE TABLE runs (
  id INTEGER PRIMARY KEY,
  sessionId TEXT NOT NULL,
  runId TEXT NOT NULL UNIQUE,
  inputText TEXT NOT NULL,
  category TEXT NOT NULL,
  timestamp DATETIME DEFAULT CURRENT_TIMESTAMP,
  FOREIGN KEY (sessionId) REFERENCES sessions(sessionId)
);

CREATE TABLE results (
  id INTEGER PRIMARY KEY,
  runId TEXT NOT NULL,
  model TEXT NOT NULL,
  ttfb INTEGER,
  audioPath TEXT,
  status TEXT DEFAULT 'success',
  createdAt DATETIME DEFAULT CURRENT_TIMESTAMP,
  FOREIGN KEY (runId) REFERENCES runs(runId),
  UNIQUE(runId, model)
);

CREATE TABLE fidelity (
  id INTEGER PRIMARY KEY,
  runId TEXT NOT NULL,
  model TEXT NOT NULL,
  transcribedText TEXT,
  editDistance INTEGER,
  accuracy REAL,
  status TEXT DEFAULT 'processing',
  error TEXT,
  startedAt DATETIME DEFAULT CURRENT_TIMESTAMP,
  completedAt DATETIME,
  FOREIGN KEY (runId) REFERENCES runs(runId),
  UNIQUE(runId, model)
);

---

📊 Evaluation Scoring Formula

In the Executive Summary screen, VoxBench computes a composite Overall Score (0–100) for each model:

$$\text{Overall Score} = 0.25 \cdot S_{\text{latency}} + 0.30 \cdot S_{\text{fidelity}} + 0.25 \cdot S_{\text{reliability}} + 0.20 \cdot S_{\text{controllability}}$$

Where:

• $S_{\text{latency}} = 100 \times \frac{\min(\text{latency}{\text{all}})}{\text{latency}{\text{model}}}$
• $S_{\text{fidelity}} = \text{Average Text Fidelity Accuracy } [0-100%]$
• $S_{\text{reliability}} = 0.6 \cdot \text{Determinism} + 0.4 \cdot (100 \times (1 - \text{Failure Rate}))$
• $S_{\text{controllability}} = \text{Provider Capability Index } [0-100]$

---

🛡️ License

This project is licensed under the MIT License. Feel free to use, fork, and build upon it for research, production benchmarking, or hackathons.
