Supersedes #208, keeping its author: this branch is #208's commits by @jiashunwu1030 plus two maintainer commits. The contributor's fork does not accept maintainer pushes, so the fix lands here.

What changed: build() returned the eight bodies as one cq.Compound with only "solids": 8 in family.json, which the task4 pipeline cannot use. Now family.json declares components (casing 1, sleeve 1, anchoring_ring 2, d_bar_left 1, d_bar_right 1, lock_bolt 2) and build() returns a named cq.Assembly, with repeats named <component>_NN. The geometry and placement of every body are unchanged. preview_parts.png is regenerated for the named components. The two D bars are a left/right mirror pair (the bolt bores run along Y, oblique to each bar's ±105° cant; reflection in XZ matches exactly, no rotation does), so they are two components. bench2 validate: PASS (5 component types summing to solids=8; all 12 seeds build).

---

Family

• Family: straub_grip_axial_restraint_pipe_coupling - family-assembly
• Closes [family-assembly] straub_grip_axial_restraint_pipe_coupling #207
• An eight-body Dixon / STRAUB GRIP-L axial-restraint pipe coupling with a hollow rolled casing, EPDM sealing sleeve, two anchoring rings, two hollow D-section closure bars, and two transverse lock bolts.

Reference - official manufacturer images (from Family Issue #207)

Official product photograph	Official orthographic / section drawing

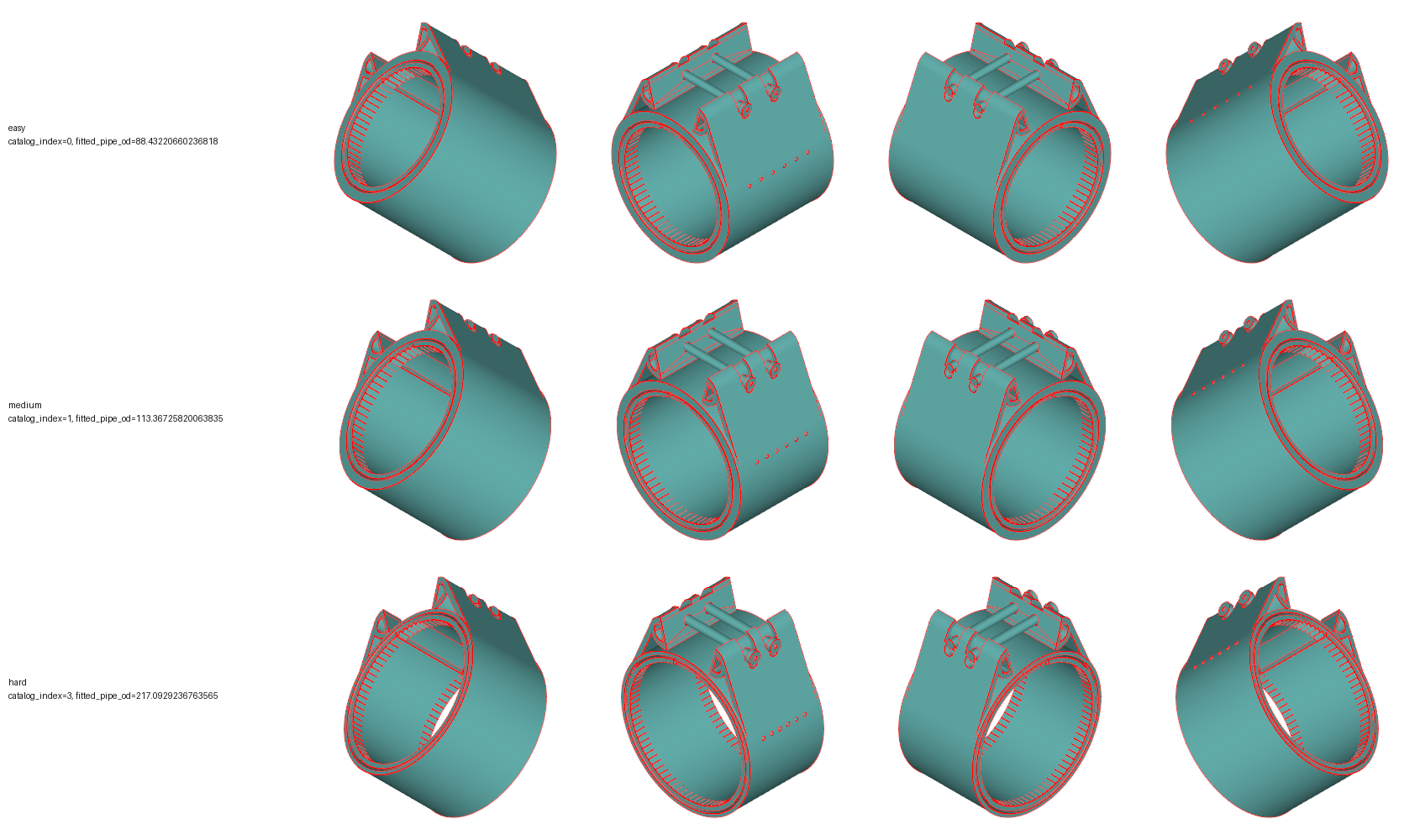

Generated - benchmark views (what the model sees)

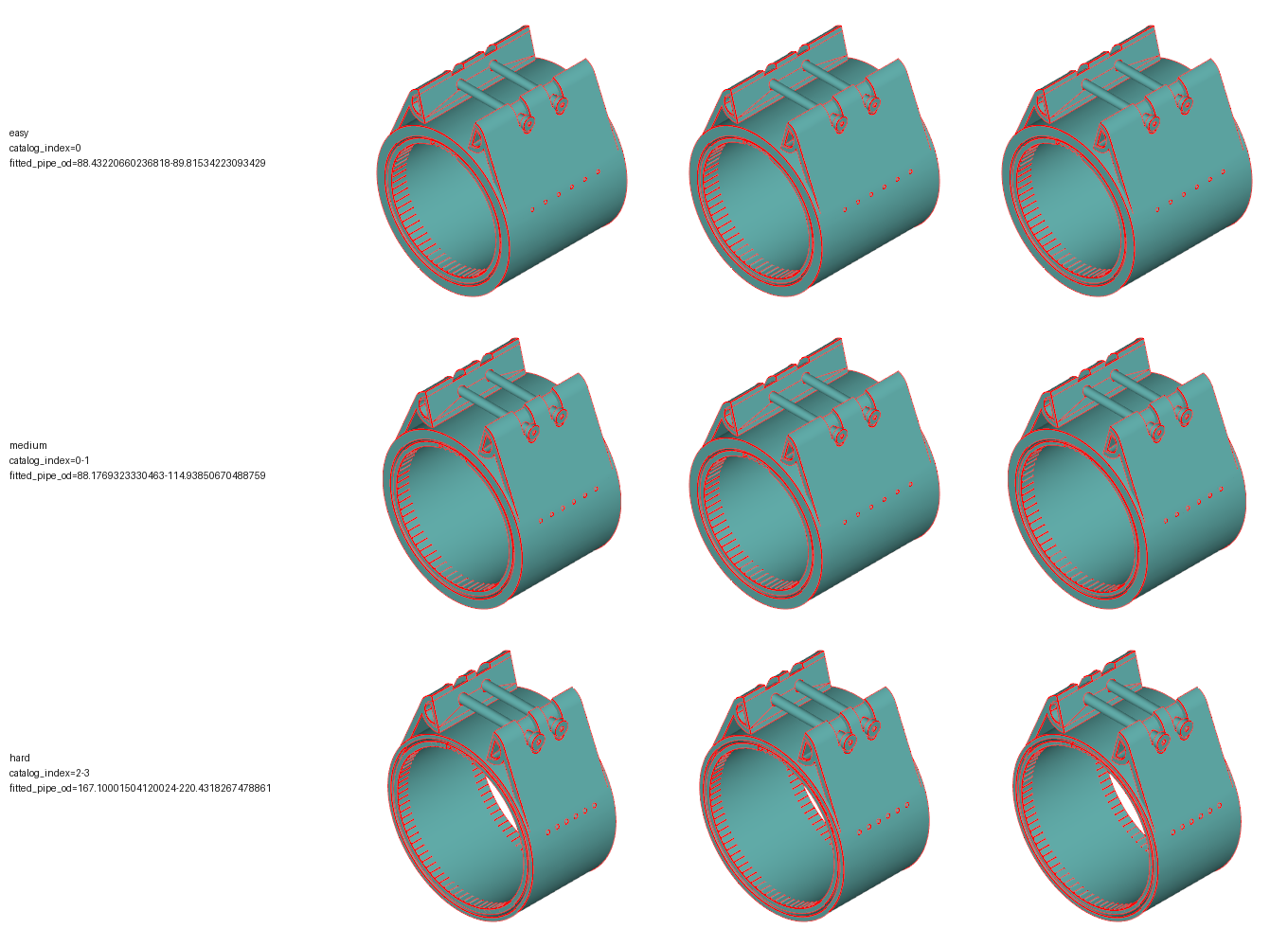

Generated - easy / medium / hard samples

Easy samples are the top row, medium samples the middle row, and hard samples the bottom row.

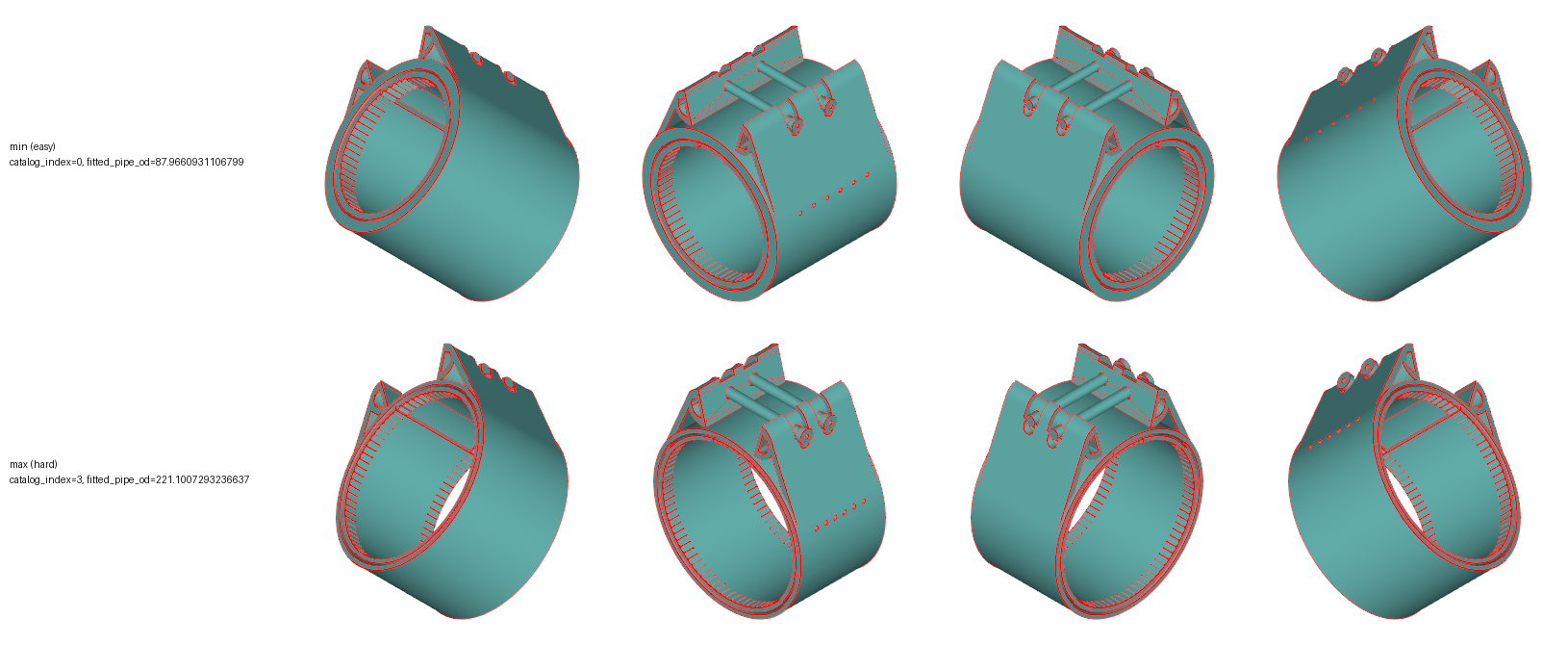

Extremes - smallest & largest sampled instances

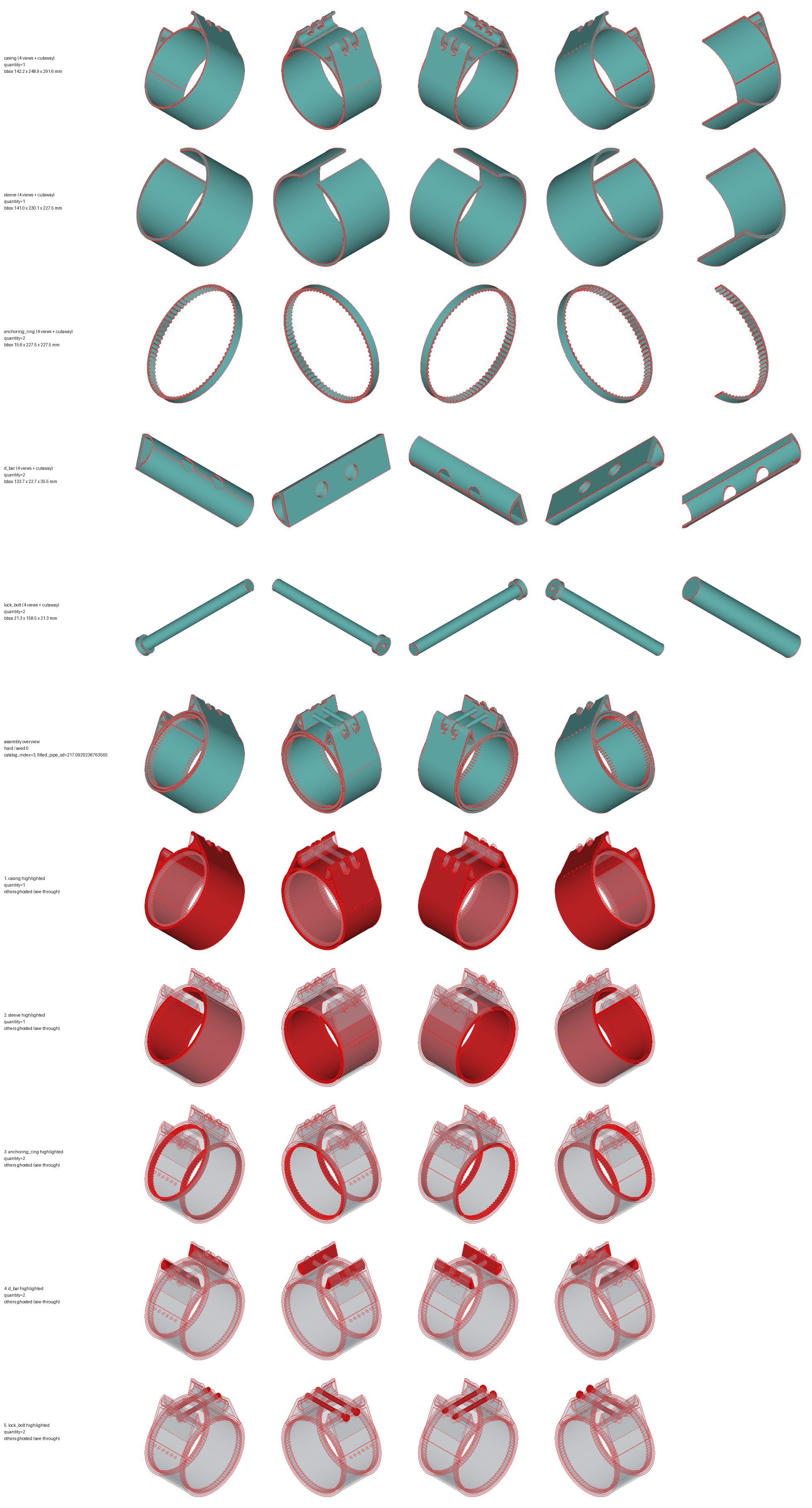

Modeled component instances - medium seed 0

catalog_index 1 - STR20900. The panel separates all eight actual CadQuery bodies: casing, EPDM sleeve, left/right anchoring rings, left/right D-section closure bars, and two transverse lock bolts.

Schematic exploded view

Schematic exploded view of the eight modeled bodies; not an authoritative manufacturer assembly procedure.

How it is parameterized

• catalog_index maps strictly to one complete Dixon catalog row (0-3); dimensions are not freely recombined.
• fitted_pipe_od is refined within the selected row's published min/max pipe O.D. range.
• Every sampled instance contains the same eight non-degenerate solids.

Verification (every sampled instance - eight non-degenerate solids)

catalog_index	designation	nominal size	pipe O.D.	published O.D. range	working pressure	B	C	DV	R	solids
0	STR20650	3 in	3.50 in	3.46-3.54 in	377 PSI	3.9 in	1.5 in	4.4 in	0.2 in	8
1	STR20900	4 in	4.50 in	4.46-4.54 in	319 PSI	3.9 in	1.5 in	5.5 in	0.4 in	8
2	STR21350	6 in	6.63 in	6.56-6.69 in	232 PSI	4.5 in	2.1 in	7.6 in	0.4 in	8
3	STR21400	8 in	8.63 in	8.54-8.71 in	232 PSI	5.6 in	3.1 in	9.8 in	0.4 in	8

bench2 validate straub_grip_axial_restraint_pipe_coupling ? PASS.

• Catalog coverage: 4/4
• Unique sampled shapes: 12/12
• Solid count: 8 for every sampled instance

Modeling simplifications and constraints

• Published B, C, DV, R, pipe O.D. values and min/max ranges are mapped directly from Dixon DPL424 p.965.
• Individual sheet thicknesses, seal-lip profile, stamped-tooth pitch, D-bar cross-section, bolt-head detail, local pressed bolt-clearance windows, and thread forms are honest proportion-based simplifications because the sources do not dimension them.
• The casing, sleeve and two anchoring rings retain a genuine continuous central bore; connected pipes are not product bodies and are omitted.
• The optional strip insert and hidden internal details are not modeled.

Checklist

• Local validation passes.
• preview.png, preview_views.png, and preview_extremes.png were generated and manually checked.
• family.json declares solids: 8; every body is non-degenerate.
• The four catalog rows remain complete sourced combinations.
• PR touches only designs/straub_grip_axial_restraint_pipe_coupling/ and contains the seven required assembly files.
• Extra component and exploded images are GitHub user attachments, not repository files.
• Commit is DCO-signed.
• AI-assisted; contributor manually reviewed the model, constraints, and previews.

Sources used

• Dixon DPL424 catalogue, p.965
• STRAUB GRIP-L datasheet
• STRAUB fitting instruction ST00152_0820
