feat(search): VS Code-style content search view#227
Open
architawr wants to merge 13 commits into
Open
Conversation
added 2 commits
May 31, 2026 21:47
Add a dedicated Search view in the activity bar (Cmd+Shift+F) for project-wide content search, backed by ripgrep (@vscode/ripgrep, streamed --json). - Match modes: Match Case, Whole Word, Regex (literal by default). - Scope filters: files-to-include / files-to-exclude glob patterns. - Results grouped by file (collapsible), with multiple matches per file, substring highlighting, "N results in M files" count, optional context lines, keyboard navigation, open-at-match-line, and per-match / per-file dismiss. - Streaming engine cancels superseded searches, caps total matches, and has a wall-clock watchdog so a pathological regex can't hang. - Searches are torn down when their window is destroyed. - The Explorer inline search becomes a lightweight filter-by-name; full content search now lives in the Search view. fsSearch is retained for the command palette. Packaging: bundle and unpack @vscode/ripgrep; resolve rgPath with the app.asar -> app.asar.unpacked swap; restore the binary's exec bit.
- e2e/search.spec.ts drives the real app: open the Search view, type a query, assert streamed/highlighted results, "No results", and open-at-match. - Extend the E2E harness with setWorkspaceRoot / openSidebarView / editorPaths. - Suppress the post-update feedback modal under CATE_E2E — a fresh test profile looks like a first install, and the modal intercepts pointer events, flaking tests.
Contributor
|
We decided to just have unified search under command + k. Where file/command and terminal search is combined The changes are still very valid. Could you integrate them there? Then I will merge this. And if you change the UI of it please attach a screenshot. |
Contributor
Author
@Anton-Horn , I suggest keeping the separate tab, especially since it's already implemented. In many situations, it's much more convenient than a separate modal window. I'll make the command bar extension a separate PR after merging the current one, so I can reuse the logic. |
Contributor
|
The search tab can stay, function wise it's good (might add panel content search later on). Command + k stays as a shallow search for commands, panel titles and file names (vscode: command + p). This pr can add the search tab (as is) and remove the search icon above the settings icon in the bottom right). Please add this here too. Then I'll merge this in and the follow up pr reworks the command + k. |
added 11 commits
June 1, 2026 00:16
…gle + drag-and-drop UI/UX (closer to VS Code's Search view): - File-type icons, full filenames with truncated paths, soft theme-aware match highlight, muted ":N" line numbers, VS Code-style leading "…" so a match always stays visible, clearer row hover + selected ring. - Full-line preview on hover via a portal tooltip (with highlights), no layout shift; theme-aware colors that also read correctly on light themes. - Removed the Context-lines control; added a "Use Exclude Settings and Ignore Files" gear toggle (respectIgnore → ripgrep --no-ignore --hidden when off). Drag & drop (like VS Code): Search file/line rows are draggable. - Drop on the canvas opens a floating editor (a line drag reveals that line). - Drop on a dock zone opens an editor tab (with a drop highlight); the canvas stops propagation so it never double-handles. - Drop on a terminal pastes path:line; drop anywhere on the agent panel inserts an @path:line mention. fix(shortcuts): the global canvas arrow-key navigation listened in the capture phase and stopped propagation, stealing arrows from focusable lists. Lists now opt out via data-keynav (the Search results tree), so its keyboard navigation (↑/↓/←/→, Enter) works.
…yboard, open-at-line, and DnD - Unit: searchDisplay (leading-"…" + whitespace trimming), terminalDrop (path:line + shell-escaping), agentDrop (@path:line mentions). - e2e (search.spec): match-case / whole-word / regex toggles, invalid-regex error, files-to-include / files-to-exclude globs, ignore-files toggle, dismiss match / file, keyboard ArrowDown+Enter open, and click-opens-at-line. - e2e (search-dnd.spec): DataTransfer-based drag of a result onto the canvas (file + at-line) and the dock zone (opens a tab) — the real source→target chain. - Harness: getSearchSnapshot() + lastEditorReveal() (+ getLastReveal in editorReveal); data-testid/data-selected/data-keynav hooks on result rows.
…view # Conflicts: # src/preload/index.ts # src/shared/electron-api.d.ts
…ive toggle - Explorer name-filter now hides directories with no matching descendant (VS Code filter-on-type), via a child→parent visibility cascade in FileTreeNode (display:none keeps subtrees mounted so they keep reporting). - Search-panel toolbar buttons get a reliable portal Tooltip (native `title` is flaky in Electron); buttons carry aria-label for a11y + tests. - Active match-mode toggle was text-blue-300 — invisible on light themes (the gear icon vanished). Now bg-blue-600 / text-white, legible on all 16 themes. Verified light + dark via screenshots.
… agent) Replaces three independent, conflicting overlays with one source-of-truth target: a window-level tracker hit-tests the cursor to the nearest [data-filedrop] element and <FileDropOverlay/> renders a single dashed-blue indicator at its bounds (matching the internal drag indicator), with a clear caption. This fixes: the canvas indicator covering the whole window and persisting after drop, the canvas/agent indicators showing at once, and the agent indicator vanishing when hovering its input. Drop handling stays in the components. Adds e2e harness helpers (getSearchSnapshot/lastEditorReveal/ setTheme/themeIds).
… ignored-file search, accent gear - Drop indicator: the tracker now listens in the capture phase, so it still fires over the terminal (whose dragover stopPropagation previously left a stale canvas indicator showing alongside the terminal's own). The terminal is marked data-filedrop="terminal" and its private overlay removed → exactly one indicator over a terminal. - The indicator rect is clamped to the open sidebars (--cate-left/right- sidebar-width) so the canvas/dock highlight no longer slides under them. - "Use ignore files" off was slow: ripgrep --no-ignore --hidden floods node_modules/.git and the un-virtualized list rendered thousands of rows. Now .git is always excluded and the match cap is 2000 (engine + handler), keeping the UI responsive. - Active match-mode toggle uses the theme accent (--focus-blue via new bg-accent utility) instead of a hardcoded blue — adapts per theme; verified the gear stays visible on light themes.

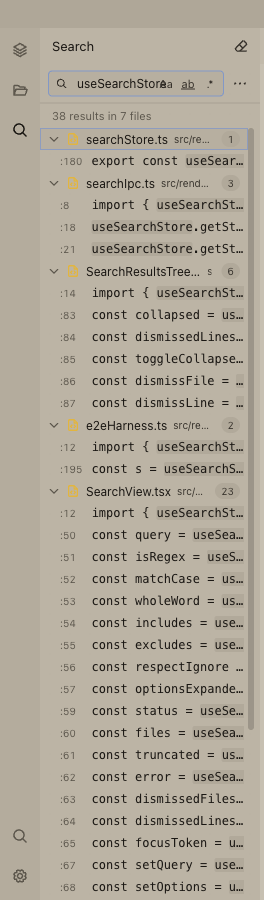

Search-view refinements (reference: VS Code): - Virtualize the results list — fixed-height windowing over the flat rows[] (ResizeObserver + scrollTop + spacer/translateY, keyboard scroll-into-view). Large queries (1600+ matches) stay responsive. - Tint result file rows by git status via the shared lookupNodeDecoration, so they match the Explorer palette (new useGitTree hook + loadGitTree). - Give file-header rows a subtle bg-black/10 overlay so they read as distinct from code rows on any theme. - Move files-to-include/exclude behind a VS Code-style "..." (DotsThree) toggle to the right of the query field. - Show input placeholders only while focused; add stable aria-labels. - Fix Tooltip positioning: measure the wrapped child instead of the zero-box display:contents wrapper (was pinned to 0,0). - Clear the row hover preview on drag start / mousedown / drag end and on per-row mouse-leave, so it no longer lingers during a drag or when the cursor moves over the tooltip itself. e2e: locate inputs by aria-label (placeholders are now focus-gated).
Address review feedback on the Search view: - Add a "Clear search" (eraser) button to the right of the Search header that resets the query, results, and any in-flight run. - Keep result git-status colors fresh: route useGitTree through a new shared, refcounted renderer-side fs-watch manager so it reloads on file changes even while the Explorer (which also watches the root) is unmounted on another sidebar. FileExplorer now uses the same manager, so neither view tears down the other's watcher. Also reloads on focus. - Persist a search across remount: skip re-running an identical query (same options + root) when the view is reopened after switching sidebar tabs — results already live in the store, so no costly re-render. - Stop the results scrollbar from fighting the sidebar resize handle: inset the scroll box 6px (mr-1.5) so the scrollbar sits inboard of the handle (padding-right wouldn't move a WebKit scrollbar). - Drop the left "…" truncation of match lines; show the whitespace- trimmed line and truncate on the right (VS Code style) so leading context stays readable. Removes now-unused trimForDisplay/MAX_PREFIX. - Revert the file-row dark background overlay (back to transparent). e2e: add a clear-button test.
Contributor
Author
|
@PaulHorn — ready for review 🙏 📝 Heads up: the PR description has been updated to match the current state of the branch (it had drifted from the original):

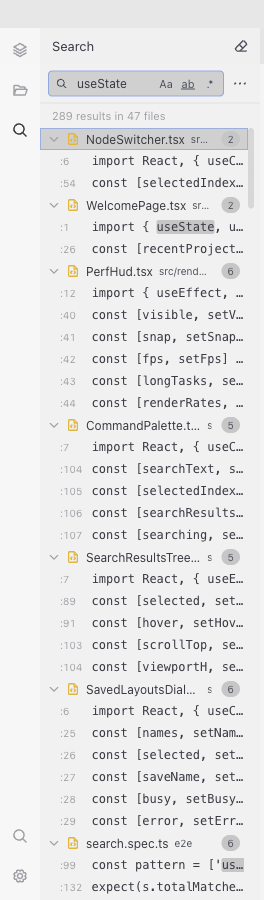

🖼️ Also added UI screenshots to the description (results, match details, git colors, light theme, and the drag-drop indicator). ✅ CI green on macOS / Ubuntu / Windows; |
Contributor
|
Thanks @architawr! One thing before I merge: the standalone search icon above the Settings gear (bottom of the left sidebar) is still there — that's the one Anton asked to drop in this PR. It's the Could you drop that button here? Then this is good to merge. 🙏 |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
3 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
What & why
Adds a dedicated Search view (activity bar, Cmd+Shift+F) for project-wide content search, modelled on VS Code and backed by ripgrep (

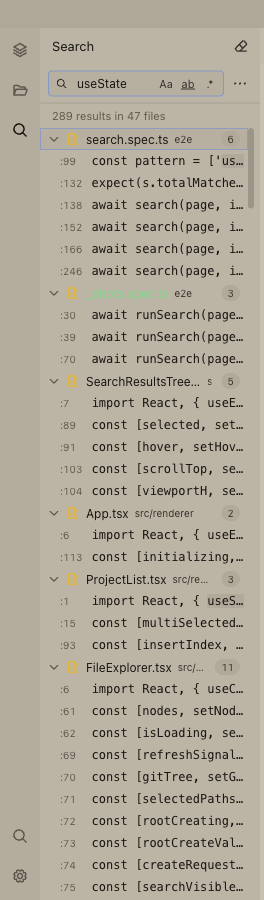

@vscode/ripgrep, streamed--json). Cate's previous content search was weak (one match per file, no highlighting, no jump-to-line, no scope filters); this brings it close to VS Code's Search view, plus drag-and-drop of results onto the canvas / dock / terminal / agent.Screenshots

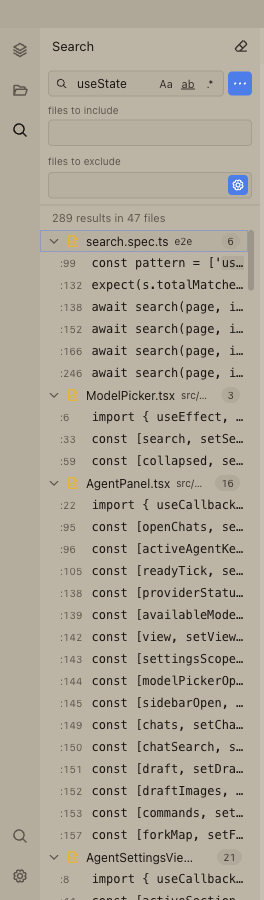

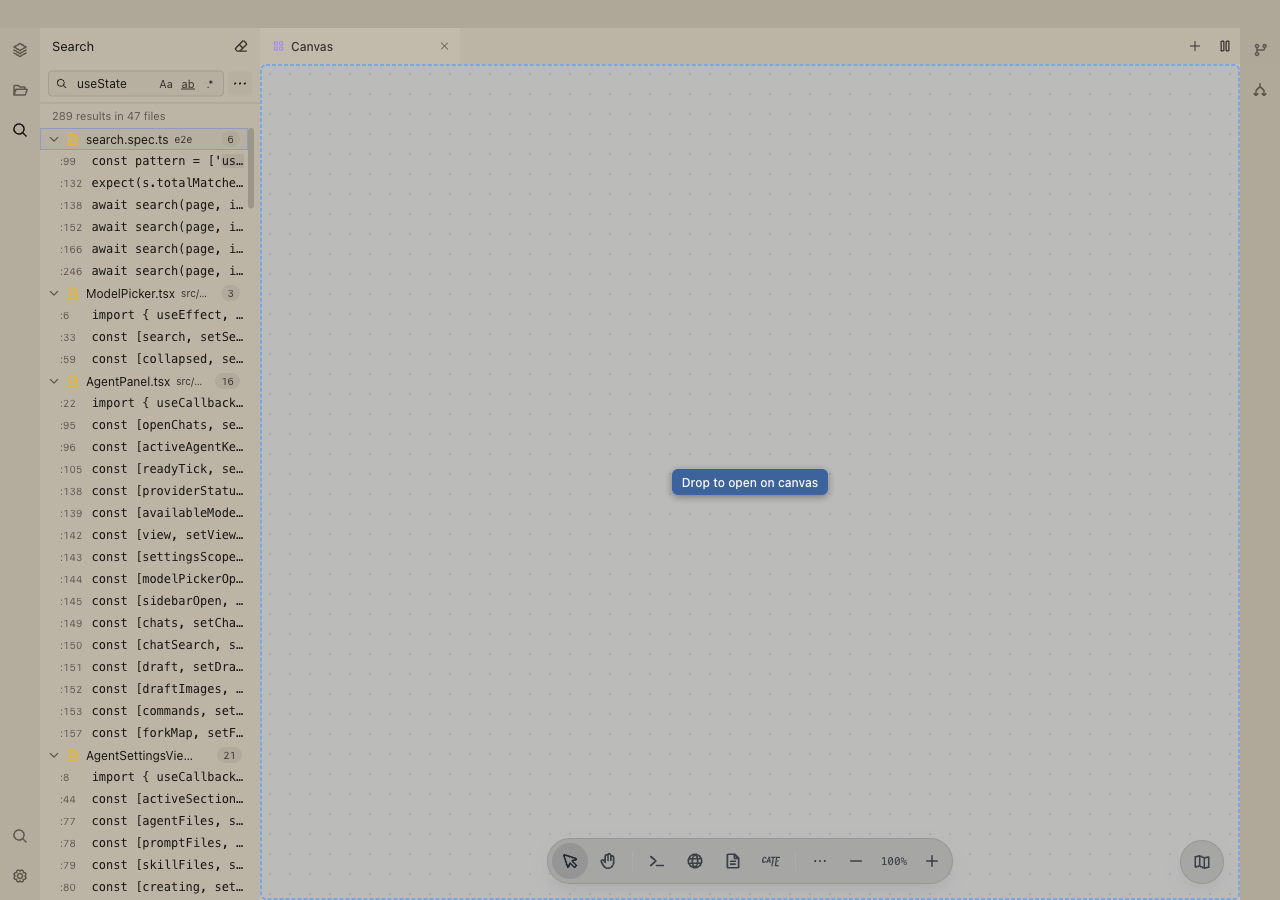

⋯reveals include/exclude + gearDrag a result onto the canvas / dock / terminal / agent — a single unified drop indicator shows the target:
Search view
Aa), Whole Word (ab), Regex (.*) — literal by default.⋯"Toggle Search Details" button; a gear toggles "use exclude settings & ignore files".:linenumbers; lines show full leading context and truncate on the right (no left "…" clipping); a hover tooltip previews the full line with the match highlighted.Drag & drop
Drag a file result or a specific match line from the Search view (and the Explorer) onto the canvas / a dock tab / a terminal / the agent — opens an editor (at the match line for line drags), pastes the path into a terminal, or attaches it to the agent chat. A single unified, theme-aware file-drop indicator shows the active target (replacing the previous per-target overlays that could conflict or linger), clamped to the visible canvas between the sidebars.
Explorer integration
The Explorer's inline search becomes a lightweight filter-by-name ("filter on type") that also hides now-empty folders while filtering; full content search lives in the dedicated Search view.
fsSearchis retained for the command palette.Performance
Theming / UX polish
--focus-blue).titleis flaky in Electron).Packaging
Bundles
@vscode/ripgrep(+ platform binary) withasarUnpack; resolvesrgPathvia theapp.asar→app.asar.unpackedswap; restores the binary's exec bit. All bundled deps are permissive (ripgrep MIT/Unlicense).Tests
--jsonparser + byte→char offsets,searchStorereducer, git-status decoration, line-display helpers. Full suite 569 passed (3 skipped).npm run typecheck, the full vitest suite,npm run build, and the Search e2e all pass.Notes / follow-ups
depth: 1(same reach the Explorer always had) — deeper/external edits refresh on window focus or the next search. Extending watch depth is a separate, main-process change affecting the Explorer too.
