Flux Led/MagicLight - ZJ-MW-HC01 not reporting state

[lubbertkramer]

Home Assistant release with the issue:

Last working Home Assistant release (if known):
Not known, started using with 0.91.1

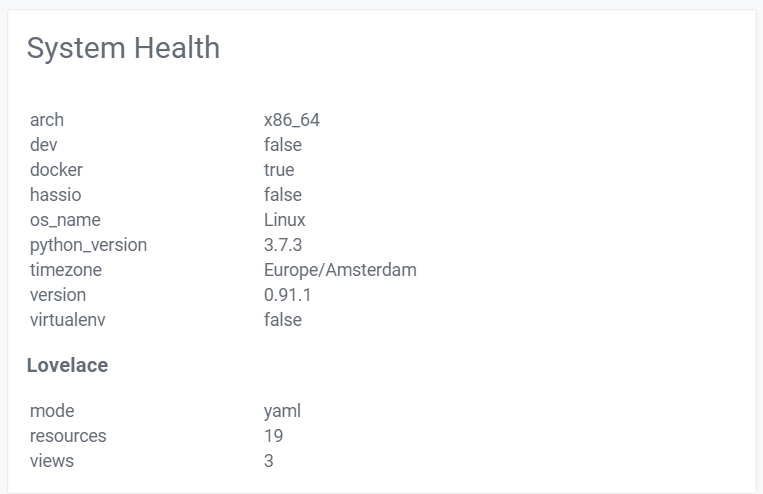

Operating environment (Hass.io/Docker/Windows/etc.):
Docker, on a NUC with Ubuntu

Component/platform:
Flux Led/MagicLight - https://www.home-assistant.io/components/flux_led/

Description of problem:
Connecting the �ZJ-MW-HC01 (https://cdn.webshopapp.com/shops/15366/files/252900959/co-wifi-spi-mini-5v-12v-wifi-music-spi-dream-color.pdf?_ga=2.194999789.1714297678.1554585636-793421668.1553878998) works and i see it added as light. When i want to controll the light from my Home Assistant enviroment it's not working

When i click to turn on the lights the ledstrip ws2811 attached to it turns on but in Home Assistant the light keeps off. Also i don't see the extra attributes to select color or function. The lights/controller are working from the Magic Home app

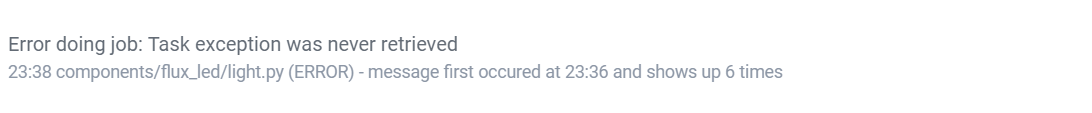

Error suggest it's a problem in the callback

Strip is turned on by Home assistant, turn off also works but no feedback in Home Assistant and no options to selct color/function

Problem-relevant configuration.yaml entries and (fill out even if it seems unimportant):

#https://www.home-assistant.io/components/flux_led/
  - platform: flux_led
    devices:
      192.168.1.218:
        name: strip_woonkamerplafond

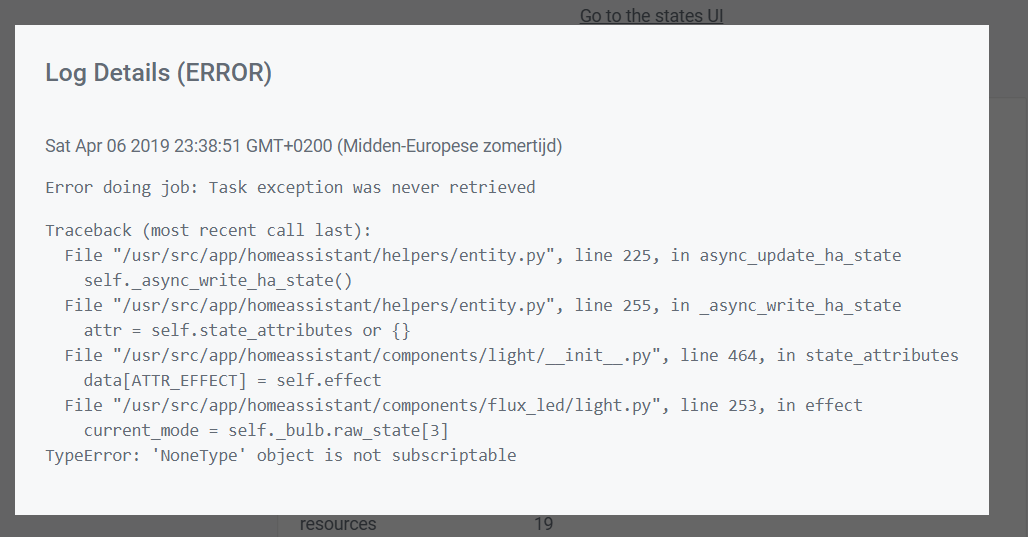

**Traceback (if applicable):**

**Additional information:**
Topic at community -> https://community.home-assistant.io/t/new-controller/79111

[stale]

There hasn't been any activity on this issue recently. Due to the high number of incoming GitHub notifications, we have to clean some of the old issues, as many of them have already been resolved with the latest updates.
Please make sure to update to the latest Home Assistant version and check if that solves the issue. Let us know if that works for you by adding a comment 👍
This issue now has been marked as stale and will be closed if no further activity occurs. Thank you for your contributions.

[lubbertkramer]

Well it's still not solved so just stale and then closing it won't solve it

[ryanking12]

Same issue for me.

Running Hass.io on raspberry pi 3, version 0.95.4

[ctripodi]

Same issue for me. Running Hassbian on Raspberry Pi 3, version 0.96.3
From my point of view, it is not working for the controller ZJ-MW-HC01 (Led SPI Controller)

[robharvey123]

I'm experiencing the same issue.

Running Hass.io on raspberry pi 3, version 0.96.5

[lstg]

@autinerd has done a good amount of work in adding support for this already (see #22161 / lightinglibs/flux_led/pull/59 ) . Unfortunately that issue / pull request seems to have gotten overrun by someone complaining about an unrelated bug which I think muddied the waters.

Perhaps it can be resurrected now the other issue has been dealt with?

[luchoecv]

Thank you for the contributions @lstg . Are there any news regarding to this issue? or any way to solve this locally in my Hassio files? I run the @autinerd striptest.py and everything was working for me. I hope there's something to do to solve this.

[lstg]

@luchoecv , please see my recent comment #22161 (comment) for some further details .

Whilst you can add these controllers to home assistant via the flux_led component, the underlying https://github.com/Danielhiversen/flux_led library doesn't actually support them properly yet. With the current state of things I think you can only really switch them on / off, and that may only occasionally work too.

It may be possible to replace the flux_led library used on your local installation with those from lightinglibs/flux_led/pull/59, though I'm not sure this would actually be of much benefit from home assistant yet as no support for configuring the additional 'functions' / patterns that this strip provides.

[stale]

There hasn't been any activity on this issue recently. Due to the high number of incoming GitHub notifications, we have to clean some of the old issues, as many of them have already been resolved with the latest updates.
Please make sure to update to the latest Home Assistant version and check if that solves the issue. Let us know if that works for you by adding a comment 👍
This issue now has been marked as stale and will be closed if no further activity occurs. Thank you for your contributions.
