VeloxDev

A node-editor and workflow-engine framework for .NET.

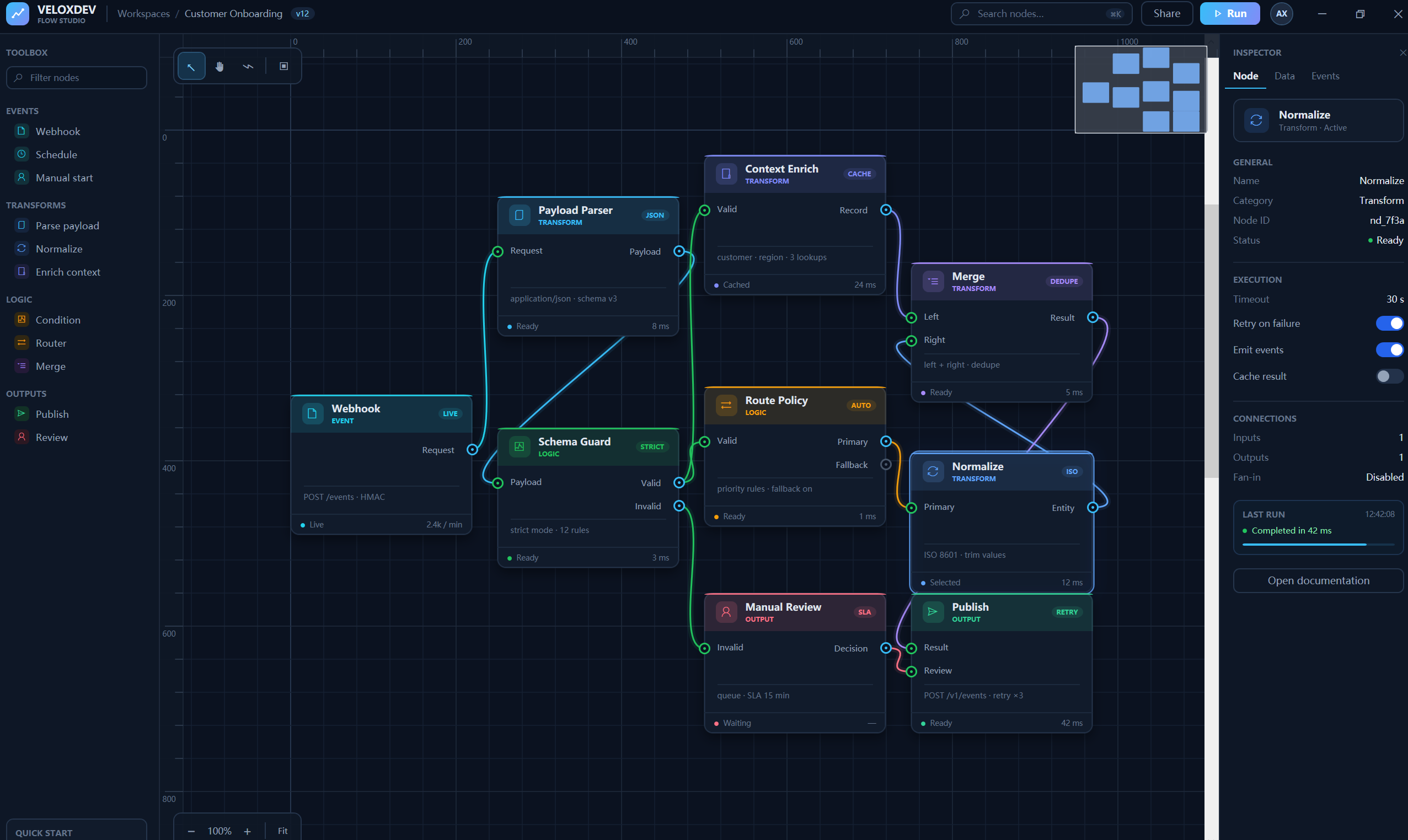

One model, seven GUIs. Build the editor above with WPF, Avalonia, WinUI, MAUI, WinForms, Blazor/Razor, or Jalium — the same graph model, commands and execution engine behind all of them. The same model also runs headless through VeloxDev.Core, so the interactive and non-interactive paths are one implementation.

Documentation · NuGet · Examples · MIT License

What this repository is

A workflow is a tree of nodes. Nodes own slots, slots are wired into links, and a slot declares a channel — how many connections it accepts in each direction — so the model itself knows which wiring is legal.

VeloxDev is built around that model, for the two ways it gets used:

• Interactive — a person edits a node editor: drags nodes, wires ports, pans and zooms, undoes structural changes.
• Non-interactive — a program, a service, or an AI agent builds the graph, compiles it, and runs it headlessly.

These are not two implementations. They use the same model, the same commands, the same connection validation and the same undo stack. A graph edited on a canvas runs in a console; a graph built by code or an Agent opens on the canvas and can be edited there.

The four layers

Layer	It owns	It does not own
VeloxDev.Core	The tree / node / slot / link model, undoable commands, canvas geometry and hit testing, spatial virtualization, standard input routing, the compiler and runtime, and the closed-world serializer. Zero UI dependencies.	Any drawing, any native input, any platform lifecycle.
VeloxDev.Core.Extension	The optional AI surface over a tree: Agent tools, MCP, skills, sub-agents, and file-backed checkpoints. Additive — Core never references it.	Anything the editor needs to run. A plain editor does not install it.
VeloxDev.<GUI> (seven adapters)	Platform mechanics: translate native pointer and key input, pool and place views, implement drag / pan / zoom / connect gestures, focus and scroll routing, and — where the platform has one — a frame pacer.	Graph rules, execution semantics, and what interaction should look like.
VeloxDev.<GUI>.Templates (seven packs)	dotnet new item templates for the seven view roles: tree, node, slot, link, template selector, grid decorator, minimap.	Interaction effects and app policy. Templates draw the passive view; your app decides how a hover, a selection or a theme change looks.

The source generator (VeloxDev.Core.Generator) is what makes the model pleasant to write: it turns [WorkflowBuilder.*], [VeloxProperty] and [VeloxCommand] into INotifyPropertyChanged, commands, helper lifecycle and serializer code. It ships inside the packages as an analyzer.

What it solves

If you are building…	VeloxDev gives you…
A node editor for automation, data pipelines, or agent graphs	The complete editing layer: model, commands, undo/redo, coordinate math, and hit testing against the curve the view painted
A canvas that stays responsive on large graphs	A spatial grid and virtualized visible set (TreeHelper(cellSize)), plus adapter-side view pooling
Wiring rules that cannot be bypassed	Slot channels, two-phase connection (SendConnection → ReceiveConnection), a ValidateConnection hook, and drag-time preview checks with reason codes
Ports that change with the node's configuration	SlotEnumerator<T> + [SlotSelectors]: an enum, bool, or your own provider rebuilds the ports; existing links are restored where possible
A workflow runtime	A compiled plan with chains, router branches, parallel fan-out and joins; redirects instead of cycles; optional pause, observation, retry, error, compensation and checkpoint hooks
Headless execution in a service or CI	VeloxDev.Core only — no UI assembly is referenced, and the graph can be built, compiled and run from a console
An AI agent that can operate the editor	VeloxDev.Core.Extension: tools that dispatch the same commands as the canvas, behind explicit policy gates and call budgets
The same product on several GUIs	Seven adapters with the same public surface: WPF, Avalonia, WinUI, MAUI, WinForms, Razor, Jalium

Packages

dotnet add package VeloxDev.Core              # the graph model + engine, no UI
dotnet add package VeloxDev.WPF               # one adapter (brings Core)
dotnet add package VeloxDev.Core.Extension    # optional — the AI surface

Platform	Package	Targets
WPF	VeloxDev.WPF	netframework4.6.1 · net5.0-windows · netcoreapp3.0 · net8.0-windows
Avalonia	VeloxDev.Avalonia	netstandard2.0 · net6.0 · net8.0
WinUI	VeloxDev.WinUI	net8.0-windows10.0.19041.0 · net10.0-windows10.0.19041.0
MAUI	VeloxDev.MAUI	net10.0 · net10.0-windows10.0.19041.0
WinForms	VeloxDev.WinForms	netframework4.6.1 · net5.0-windows · netcoreapp3.0 · net8.0-windows
Razor	VeloxDev.Razor	net6.0 · net8.0
Jalium	VeloxDev.Jalium	net10.0

VeloxDev.Core itself targets netstandard2.0, netframework4.6.1, net5.0, netcoreapp3.0 and net8.0, and declares IsAotCompatible on net8.0. Trimming and AOT remain per-platform realities: the adapters enable the analyzers, but the GUI framework itself may not support them.

Generate the view suite

Each adapter ships a template pack with the same seven items.

dotnet new install VeloxDev.WPF.Templates

dotnet new wpf-v-tree      -n WorkflowView     -ns MyApp.Views
dotnet new wpf-v-node      -n NodeView         -ns MyApp.Views
dotnet new wpf-v-slot      -n SlotView         -ns MyApp.Views
dotnet new wpf-v-link      -n LinkView         -ns MyApp.Views
dotnet new wpf-v-selector  -n TemplateSelector -ns MyApp.Views
dotnet new wpf-v-decorator -n GridDecorator    -ns MyApp.Views
dotnet new wpf-v-minimap   -n MinimapOverlay   -ns MyApp.Views

Other adapters use their own prefix: ava-v-*, winui-v-*, maui-v-*, winforms-v-*, razor-v-*, jalium-v-*.

Workflow in code

The snippets below walk one three-node chain: ticker → bias → printer.

A node is a partial class

// The generator supplies INotifyPropertyChanged, the commands and the Helper lifecycle.
[WorkflowBuilder.Node<BiasNodeHelper>]
public partial class BiasNodeViewModel
{
    public BiasNodeViewModel() => InitializeWorkflow();

    [VeloxProperty] public partial SlotViewModel Input { get; set; }
    [VeloxProperty] public partial SlotViewModel Output { get; set; }
    [VeloxProperty] private string title = "Bias";
}

public sealed class BiasNodeHelper : NodeHelper<BiasNodeViewModel>
{
    // What this node computes. The return value is passed to the next node in the chain.
    public override Task<object?> ReceiveAsync(ITaskContext context, CancellationToken ct)
        => Task.FromResult<object?>($"{context.Data}->bias");
}

Slot types are declared the same way, with [WorkflowBuilder.Slot<...>]. A slot's Channel decides its capacity:

output.SetChannelCommand.Execute(SlotChannel.MultipleTargets); // fan out from this port
input.SetChannelCommand.Execute(SlotChannel.OneSource);        // one upstream connection only

Edit through the same commands the canvas uses

tree.CreateNodeCommand.Execute(bias);
tree.SendConnectionCommand.Execute(ticker.Output);   // start from the sender…
tree.ReceiveConnectionCommand.Execute(bias.Input);   // …complete on the receiver
tree.UndoCommand.Execute(null);                      // the connection is one undoable step

Connection legality is a host rule, not a hard-coded policy:

public sealed class GraphHelper : TreeHelper<GraphViewModel>
{
    public override bool ValidateConnection(
        IWorkflowSlotViewModel sender, IWorkflowSlotViewModel receiver)
        => receiver.Parent is not SinkNodeViewModel;   // your rule
}

During a drag, the same rules produce a preview for the candidate port, with a reason when it is invalid. A host can narrow a valid candidate further, but cannot turn a framework rejection into a valid one.

Compile once, run deterministically

var compiler = new CompilerViewModel();
var graph = (await compiler.CompileAsync(ticker, CompileRole.Root)).Single();

var session = new RuntimeContext { Data = "seed" };
await new RuntimeEngine().RunAsync(graph, session, CancellationToken.None);

Console.WriteLine(session.Data);   // seed -> tick -> bias -> print

CompileRole.Root walks downstream from a start node. CompileRole.Terminal does the opposite — it compiles only the ancestor cone needed for one node's result, and needs no start node:

var cone = (await compiler.CompileAsync(printer, CompileRole.Terminal)).Single();

var probe = new RuntimeContext { Target = printer };
await new RuntimeEngine().RunAsync(cone, probe, ct);

Console.WriteLine(probe.TargetReached ? probe.Data : "target not reached");

The execution model is deliberately explicit:

• Branches are real. A node implementing ICompileTimeRouter compiles to a branch; static keys are pruned at compile time, dynamic keys are resolved at runtime. If a router selects a sibling branch, the target is reported as not reached — never fabricated.
• Fan-out is concurrent, joins are keyed. A route key with several targets compiles to a parallel segment; a join receives an IGroupData keyed by the upstream node, so "wait for all inputs" works regardless of interleaving.
• Loops are redirects, not cycles. IRedirectable returns an earlier compile order and the engine re-runs the graph from there, up to 50 redirects per run.
• Run controls are optional session objects. ExecutionGate, Observer, RetryPolicy, ErrorSink, Compensation and CheckpointStore are attached to RuntimeContext; none of them changes a run when absent.
• Outcome and position are separate. TargetReached says the target was driven; Outcome says whether the run completed, was cancelled or failed.

Input is routed; appearance is yours

Adapters translate native pointer and key input once. Core routes it to the hit component, then along its ancestors, and delivers Exited before the next Entered:

if (link?.GetHelper() is IInputEvents events)
{
    events.Input.PointerEntered += (_, _) => IsHighlighted = true;
    events.Input.PointerExited  += (_, _) => IsHighlighted = false;
}

There is no ILinkHighlight in Core, and that is intentional. The library supplies events, hit testing against the curve the view actually painted, and a per-action handle. The host decides what a hover looks like; a handler can set PreventDefault to veto one framework action, such as Delete, without disabling it globally.

Ports that change shape

[VeloxProperty]
[SlotSelectors(typeof(PythonPortProvider))]
public partial SlotEnumerator<SlotViewModel> Inputs { get; set; }

Changing the selector rebuilds the port set. Links are restored by name when the provider stays the same, and by position when the selector type changes. The same operation is available to the Agent as SetEnumSlotCollection.

AI control (optional)

The Workflow Agent turns a tree into a tool surface for any IChatClient. Every mutation goes through the same component command the GUI dispatches, so the Agent and the canvas share one edit path and one undo stack.

var scope = tree.AsAgentScope()
    .WithAutoDiscovery()
    .WithMaxToolCalls(200)
    .WithAllowNodeExecution(true)                              // node execution is off by default
    .WithSynchronizationContext(SynchronizationContext.Current);

var agent = chatClient.AsAIAgent(
    scope.CreateContextProviders(),
    instructions: scope.ProvideProgressiveContextPrompt());

What keeps the surface safe under a real session:

• Node execution is opt-in. Until the host calls WithAllowNodeExecution(true), execution tools are absent.
• Budgets are enforced. WithMaxToolCalls, plus separate read and write caps, bound a session.
• Interaction is explicit. Selection and confirmation tools appear only when the host wires a handler.
• Plans can be read before they run. CompileWorkflow / CompileNodeResult expose the plan. RunCompiledWorkflow waits for the end; StartCompiledWorkflow returns a handle that can be paused, resumed, polled or stopped.
• MCP, skills and sub-agents are separate subsystems. Each can also be used on its own; an MCP server joins the tool set on the next turn without rebuilding the agent.

Transition in code

The same source also ships the rendering layer the editor uses for polish. A transition is a chain you build, then execute:

var fade = Transition<Rectangle>.Create()
    .Property(r => r.Opacity, 0d)
    .Effect(new TransitionEffect { Duration = TimeSpan.FromSeconds(0.4), Ease = Eases.Cubic.Out });

fade.Execute(rect);

Several transitions can share one timeline: pausing, seeking or re-rating it moves all of them, while each keeps its own progress. The adapters contribute only a frame pacer where the platform has one (Razor deliberately has none); easing, keyframes, sampling and scheduling are Core code shared by all seven.

The other layers

All of these live in VeloxDev.Core and need no canvas.

Layer	What it gives you
MVVM	Generated observable properties and async, cancellable commands — no INotifyPropertyChanged boilerplate
Transition	The animation engine above: timelines, easing, keyframes, scheduling
Theme	Runtime theme switching that animates between states instead of snapping
AOP	Generated aspect interfaces with runtime proxies — intercept a member without touching the class that declares it
Tickable	A frame-driven lifecycle loop with a fixed-step pump beside the variable one
Serialization	A closed-world archiver with generated readers and writers — no reflection, and an unseen type fails loudly instead of serializing an empty shell

Repository map

Path	What it holds
Src/Core/VeloxDev.Core	The model, canvas mechanics, compiler, runtime and the supporting layers
Src/Core/VeloxDev.Core.Extension	The Agent, MCP, skills and sub-agents — additive to Core
Src/Adapters/	The seven platform adapters
Src/Templates/	The seven dotnet new item-template packs
Src/Generators/	The Roslyn generator
Examples/	A demo per feature per GUI, including trimmed-publish demos
Docs/	The source of the documentation site

License

Released under the MIT License. © 2025 Axvser
